Varenummer: 3396405

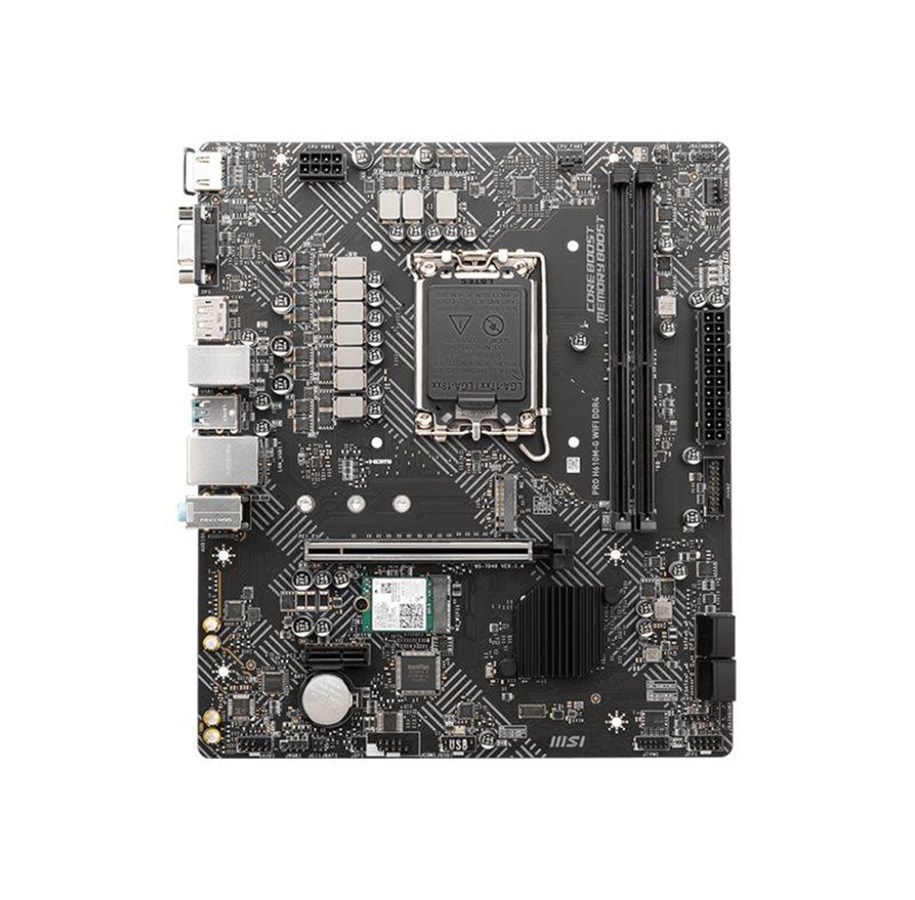

MSI PRO H610M-G WIFI DDR4 - motherboard - micro ATX - LGA1700 Socket - H610 Bundkort - Intel H610 - Intel LGA1700 socket - DDR4 RAM - Micro-ATX

Bundkort, micro ATX, LGA1700 sokkel, H610 Chipset, USB 3.2 Gen 1, Gigabit LAN, Bluetooth, Wi-Fi, onboard grafik (CPU påkrævet), HD Audio (8-kanaler)

606,00 kr. 484,80 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Bestilt - ukendt leveringsdato

Experience a blend of performance and convenience with the MSI PRO H610M-G WIFI DDR4 motherboard. Designed for enthusiasts and professionals alike, this motherboard supports 12th/13th and 14th Generation Intel Core processors, ensuring compatibility with a wide range of CPUs. With dual DIMM slots, it supports up to 3200 MHz DDR4 memory, allowing for smooth and efficient multitasking and data processing.The motherboard boasts a variety of connectivity options, including Bluetooth 4.2 and dual-band 802.11a/b/g/n/ac Wi-Fi, providing flexible networking solutions. High definition audio with a Realtek ALC897 codec offers a rich, immersive sound experience, enhancing your gaming, movie watching, or music listening sessions. For storage, it features 4 x SATA-600 ports and an M.2 socket, supporting both SATA-600 and PCIe 3.0 interfaces, catering to your need for speed and capacity.Built with durability in mind, the MSI PRO H610M-G WIFI DDR4 motherboard comes equipped with MSI Steel Armor, reinforcing its PCIe slots to protect against damage from heavy graphics cards. Additionally, MSI's Frozr AI Cooling technology ensures your system remains cool under pressure, automatically adjusting cooling to meet the system's demands. Whether you're building a new PC or upgrading an existing one, this motherboard offers a solid foundation for a powerful, reliable system.

Producent
Varenummer
3396405
Model
PRO H610M-G WIFI DDR4
Ean
4711377020626
Til producentens hjemmeside
Produktbeskrivelse
MSI PRO H610M-G WIFI DDR4 - bundkort - micro ATX - LGA1700 sokkel - H610
Produkttype
Bundkort - micro ATX
Chipsættype
Intel H610 / Nuvoton NCT6687D-M
Processor-socket
1 x LGA1700 sokkel
Kompatible processorer
(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse
64 GB
RAM understøttet
2 DIMM slots - DDR4, ikke-ECC, ikke bufferet
Lagringsporte
4 x SATA-600, 1 x M.2
USB / FireWire porte
2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet, Bluetooth 4.2, 802.11a/b/g/n/ac

Generelt

Produkttype
Bundkort - micro ATX
Chipsættype
Intel H610 / Nuvoton NCT6687D-M
Processor-socket
LGA1700 sokkel
Max antal processorer
1
Kompatible processorer
(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)

Understøttet RAM

Maks. størrelse
64 GB
Teknologi
DDR4
Bus Clock
3200 MHz, 2666 MHz, 2133 MHz
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC897
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværk controller
Intel I219V
Netværks interfaces
Gigabit Ethernet, Bluetooth 4.2, 802.11a/b/g/n/ac

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
2 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
1 x M.2 socket (2242/2260/2280 M.2 Key M åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA
SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2
RAID-egenskaber
Intel Smart Response Technology
Interface
1 x HDMI
1 x VGA
1 x DisplayPort
2 x USB 3.2 Gen 1
4 x USB 2.0
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x audio linje-ind - mini-jack
1 x PS/2-tastatur/mus
1 x LAN (Gigabit Ethernet)
Interne interfaces
2 x USB 2.0 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x audio - intern stik
1 x SPI - intern stik
1 x seriel - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS, ACPI 6,4 support, SMBIOS 3,4 support
Hardware egenskaber
EZ Debug LED, Clear CMOS Button, Frozr AI Cooling, MSI Audio Boost, MSI Core Boost, MSI Steel Armor, MSI Memory Boost, lightning gen4-løsning

Diverse

Med software
MSI Center, Drivers & Utilities, Intel Extreme Tuning Utility, MSI CPU-Z, Norton Internet Security
Bredde
24.4 cm
Dybde
21.1 cm
