Varenummer: 3215351

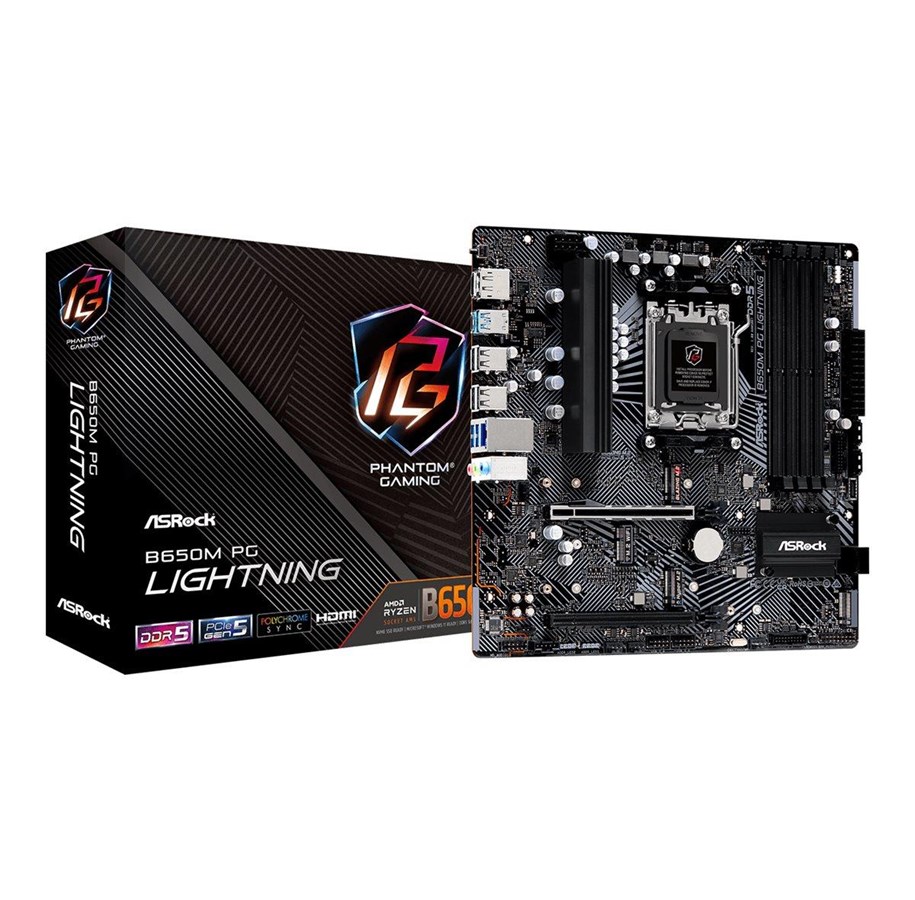

ASRock B650M PG LIGHTNING Bundkort - AMD B650 - AMD AM5 socket - DDR5 RAM - Micro-ATX

Bundkort, størrelse: Micro-ATX, AMD AM5 socket, AMD B650 chipset, 1 x PCI-Express 4.0 x16, Dual DDR5-5600 4 x DIMM slots, lagrings tilslutninger: 4 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 / 1 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2 type A & C, skærm tilslutning: 1 x Displayport 1.4 / 1 x HDMI 2.1, Realtek 8125BG 2.5 Gigabit netværk (LAN), AMD Vega Graphics supporteret (CPU med VGA påkrævet), Realtek ALC897 HD Audio (8-kanaler) lydkort, ASRock Polychrome SYNC software

Læs mere
818,00 kr. 654,40 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Fjernlager, 5-6 dages levering

Discover the ASRock B650M PG Lightning motherboard, engineered to elevate your computing experience. This micro ATX motherboard is designed with the AMD B650 chipset and supports AMD CPUs, ensuring compatibility and performance for gamers and professionals alike. Experience immersive sound quality with high definition audio (8-channel) and the Realtek ALC897 audio codec, perfect for gaming, movies, and music.

For connectivity, the ASRock B650M PG Lightning offers a variety of options including HDMI, DisplayPort, USB 3.2 Gen 2, and USB-C 3.2 Gen 2 ports, catering to all your peripheral and display needs. It also features high-speed storage interfaces like M.2 socket and Serial ATA-600 (RAID), allowing for fast data transfer and robust storage configurations. With its 2.5 Gigabit Ethernet, enjoy high-speed, stable network connections, enhancing your online gaming and streaming experiences.

This motherboard also boasts features such as AMD EXPO technology for optimized memory performance, dual-channel memory architecture, and support for DDR5 SDRAM at speeds up to 7200 MHz (O.C.). With its comprehensive feature set and robust design, the ASRock B650M PG Lightning is a solid foundation for building a powerful, future-ready PC.

CPU

RAM

Producent
Varenummer
3215351
Model
90-MXBMV0-A0UAYZ
Ean
4710483943829
Til producentens hjemmeside
Produktbeskrivelse
ASRock B650M PG Lightning - bundkort - micro ATX - Socket AM5 - AMD B650
Produkttype
Bundkort - micro ATX
Chipsættype
AMD B650
Processor-socket
1 x Socket AM5
Kompatible processorer
Ryzen (understøtter Ryzen 7000 Series)
Max RAM-størrelse
192 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire porte
1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB4 + 1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
2.5 Gigabit Ethernet

Generelt

Produkttype
Bundkort - micro ATX
Chipsættype
AMD B650
Processor-socket
Socket AM5
Max antal processorer
1
Kompatible processorer
Ryzen (understøtter Ryzen 7000 Series)

Understøttet RAM

Maks. størrelse
192 GB
Teknologi
DDR5
Bus Clock
7200 MHz (O.C.), 4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz (O.C.), 6000 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC897
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværk controller
Dragon RTL8125BG
Netværks interfaces
2.5 Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
3 x M.2 socket (2260/2280 M.2 Key M-åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -stikforbindelser: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
Interface
1 x HDMI
1 x DisplayPort
1 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen 2
2 x USB 3.1 Gen 1
4 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
Interne interfaces
4 x USB 2.0 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x USB-C 3.2 Gen 1 - intern stik
1 x SPI - intern stik
1 x højttaler - intern stik
1 x audio - intern stik
1 x Thunderbolt 4 - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS
Hardware egenskaber
6+2+1 Phase Power Design, Water Pump Header, ASRock POST Status Checker (PSC), ASRock Auto Driver Installer, BIOS FlashBack-knap, Dr.MOS MOSFET, ASRock OC Tuner, AMD Precision Boost Overdrive (PBO), forstærkede PCIe-åbninger, Nahimic Audio Enhacer

Diverse

Udstyr inkluderet
IO-skjold, 3 x M.2 skruer
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
ASRock Phantom Gaming Tuning, ASRock Polychrome SYNC, ASRock Phantom Gaming LAN Software
Overensstemmelsesstandarder
RoHS, UKCA, FCC, EuP Ready, ErP Ready
Bredde
24.4 cm
Dybde
24.4 cm
