Varenummer: 3146567

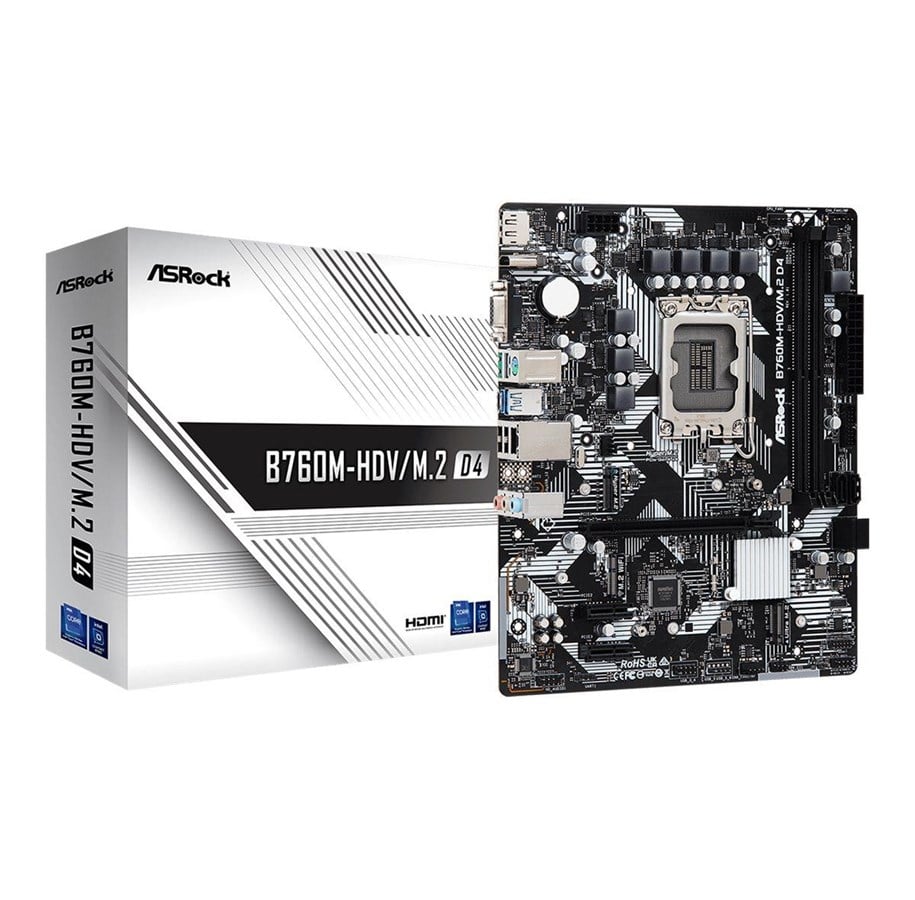

ASRock B760M-HDV/M.2 D4 Bundkort - Intel B760 - Intel LGA1700 socket - DDR4 RAM - Micro-ATX
Bundkort, størrelse: Micro-ATX, Intel LGA1700 socket, Intel B760 chipset, 1 x PCI-Express 4.0 x16, Dual DDR4-3200 2 x DIMM slots, lagrings tilslutninger: 4 x SATA-600 / 1 x M.2 NVMe PCI-Express 3.0 / 1 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 1 type A & C, skærm tilslutning: 1 x Displayport 1.4 / 1 x HDMI 2.1 / 1 x VGA, Realtek 8111H 1 Gigabit netværk (LAN), Intel Xe Graphics supporteret (CPU med VGA påkrævet), Realtek ALC887 HD Audio (8-kanaler)
På lager
589,00 kr.
471,20 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
6 stk.
På lager - 1-2 dages levering
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
Producent
Varenummer
3146567
Model
90-MXBL40-A0UAYZ
Ean
4710483942020
Til producentens hjemmeside
Produktbeskrivelse
ASRock B760M-HDV/M.2 D4 - bundkort - micro ATX - LGA1700 sokkel - B760
Produkttype
Bundkort - micro ATX
Chipsættype
Intel B760
Processor-socket
1 x LGA1700 sokkel
Kompatible processorer
(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse
64 GB
RAM understøttet
2 DIMM slots - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 1 x Hyper M.2, 1 x Ultra M.2
USB / FireWire porte
1 x USB-C 3.2 Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 3 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet
Generelt
Produkttype
Bundkort - micro ATX
Chipsættype
Intel B760
Processor-socket
LGA1700 sokkel
Max antal processorer
1
Kompatible processorer
(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Understøttet RAM
Maks. størrelse
64 GB
Teknologi
DDR4
Bus Clock
5333 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC, ECC (drift i ikke-ECC tilstand)
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, understøttede ECC-moduler fungerer i ikke-ECC-tilstand, Intel Extreme Memory Profiles (XMP) 2.0
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC887/ALC897
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværk controller
Realtek RTL8111H
Netværks interfaces
Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU
2 x DIMM 288-pins
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
1 x M.2 socket (2230 M.2 Key E-åbning)
2 x M.2 socket (2260/2280 M.2 Key M-åbning)
2 x DIMM 288-pins
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
1 x M.2 socket (2230 M.2 Key E-åbning)
2 x M.2 socket (2260/2280 M.2 Key M-åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 1 x M.2
SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2
PCIe 4.0 -stikforbindelser: 1 x M.2
SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2
Interface
1 x PS/2-tastatur/mus
1 x VGA
1 x HDMI
1 x DisplayPort
1 x USB-C 3.2 Gen 1
3 x USB 3.2 Gen 1
2 x USB 2.0
1 x LAN (Gigabit Ethernet)
1 x mikrofon - mini-jack
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x VGA
1 x HDMI
1 x DisplayPort
1 x USB-C 3.2 Gen 1
3 x USB 3.2 Gen 1
2 x USB 2.0
1 x LAN (Gigabit Ethernet)
1 x mikrofon - mini-jack
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
Interne interfaces
2 x USB 3.2 Gen 1 - intern stik
3 x USB 2.0 - intern stik
1 x SPI - intern stik
1 x højttaler - intern stik
1 x audio - intern stik
3 x USB 2.0 - intern stik
1 x SPI - intern stik
1 x højttaler - intern stik
1 x audio - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS
Hardware egenskaber
5+1+1 Phase Power Design, ASRock Auto Driver Installer, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), ESD Protection, ASRock Easy RAID Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, ASRock My Favorites in UEFI
Diverse
Udstyr inkluderet
IO-skjold, 3 x M.2 skruer
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
ASRock A-Tuning, ASRock XFast LAN
Overensstemmelsesstandarder
FCC, ErP Ready, EuP Ready, HDCP 2.3
Bredde
24.4 cm
Dybde
20.1 cm
