Varenummer: 2523336

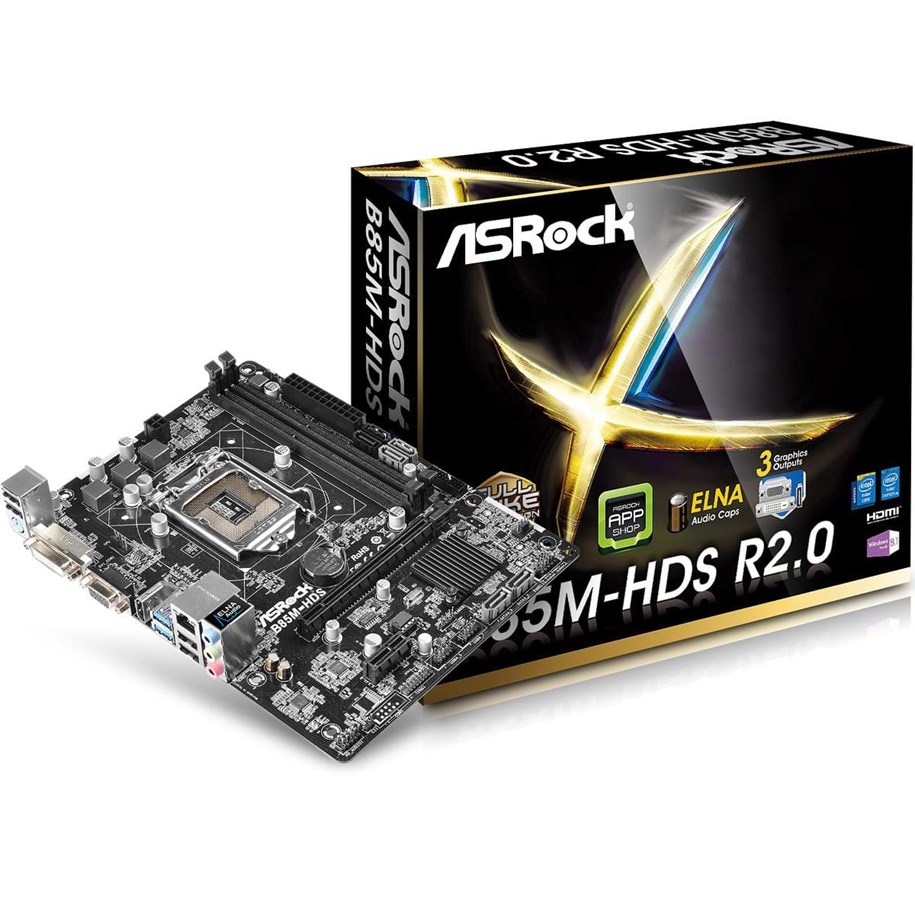

ASRock B85M-HDS R2.0 Bundkort - Intel B85 Express - Intel LGA1150 - DDR3L (Low Voltage) RAM - Micro-ATX
Bundkort, Micro-ATX, Intel LGA1150 Socket, Intel B85, PCI-Express x16, Dual DDR3-1600, USB 3.0, D-Sub / DVI-D / HDMI tilslutning, Realtek 8111GR Gigabit LAN, Intel HD Graphics 4600 integreret grafikkort (CPU påkrævet), Realtek ALC662 HD Audio (6-kanaler)
Varen er udgået
Data backup & restore provides reliable after-hours backup of critical data using the local maintenance timer to remotely power on the PC. PC health center can schedule and perform PC maintenance tasks after hours so as not to interrupt employees' work. It works even if the computer is powered down, as long as it is plugged in.With energy saver, businesses can save energy by scheduling PCs to power-down at the end of the day and turn on before the work day begins - ready for employees as they arrive in the morning. All the capacitors on this board are built with 100% all solid capacitors. With these solid caps, ASRock motherboards are allowed to perform more stably and ensure longer lifetime. A-tuning is ASRock's multi purpose software suite with interface, more features and improved utilities, including XFast RAM, OC Tweaker and a whole lot more.
Producent
Varenummer
2523336
Model
B85M-HDS R2.0
Ean
4717677325461
Til producentens hjemmeside
Produktbeskrivelse
ASRock B85M-HDS - 2.0 - bundkort - micro ATX - LGA1150 sokkel - B85
Produkttype
Bundkort - micro ATX
Chipsættype
Intel B85 Express
Processor-socket
1 x LGA1150 sokkel
Kompatible processorer
Pentium, Celeron, Xeon, Core i5, Core i3, Core i7 (understøtter 4. Generation Intel Core i3 / i5 / i7)
Max RAM-størrelse
16 GB
RAM understøttet
2 DIMM slots - DDR3, DDR3L, ikke-ECC, ikke bufferet
Lagringsporte
4 x SATA-600, 2 x SATA-300
USB / FireWire porte
2 x USB 3.0 + 4 x USB 2.0 + (2 x USB 3.0 + 4 x USB 2.0 via samlekasser)
Maks. allokeret RAM-størrelse
1792 MB
Audio
HD Audio (6-kanaler)
LAN
Gigabit Ethernet
Generelt
Produkttype
Bundkort - micro ATX
Chipsættype
Intel B85 Express
Processor-socket
LGA1150 sokkel
Max antal processorer
1
Kompatible processorer
Pentium, Celeron, Xeon, Core i5, Core i3, Core i7 (understøtter 4. Generation Intel Core i3 / i5 / i7)
Understøttet RAM
Maks. størrelse
16 GB
Teknologi
DDR3, DDR3L
Bus Clock
1600 MHz, 1333 MHz, 1066 MHz
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP)
Grafik
Maks. allokeret RAM-størrelse
1792 MB
Audio
Type
HD Audio (6-kanaler)
Audio codec
Realtek ALC662
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværk controller
Realtek RTL8111GR
Netværks interfaces
Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU
2 x DIMM 240-pins
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 2.0 x1 (x1 modus)
2 x DIMM 240-pins
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 2.0 x1 (x1 modus)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - 4 enheder
SATA-300 -stikforbindelser: 2 x 7-pin Seriel ATA - 2 enheder
SATA-300 -stikforbindelser: 2 x 7-pin Seriel ATA - 2 enheder
Interface
1 x PS/2-tastatur/mus
1 x VGA
1 x DVI-D
1 x HDMI
4 x USB 2.0
2 x USB 3.0
1 x LAN (Gigabit Ethernet)
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x VGA
1 x DVI-D
1 x HDMI
4 x USB 2.0
2 x USB 3.0
1 x LAN (Gigabit Ethernet)
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
Interne interfaces
2 x USB 2.0 - intern stik
1 x USB 3.0 - intern stik
1 x audio - intern stik
1 x USB 3.0 - intern stik
1 x audio - intern stik
Strømkontakter
4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor
Egenskaber
BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
Flersproget BIOS, SMBIOS 2.3.1 understøttet, ACPI 1.1 support, UEFI BIOS
Hardwareovervågning
CPU kernetemperatur, chassis temperatur, strømforsyningstemperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding, takometer til blæser i strømforsyning, detektion af åben etui
Sov/ Vågn
Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber
ASRock Instant Flash, All-Solid Capacitor motherboard Design, ASRock APP Charger, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, ASRock Internet Flash, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ASRock Dehumidifier Function, ASRock Interactive UEFI, ASRock Restart to UEFI, ASRock UEFI System Browser, ASRock FAN-Tastic Tuning, Platform Controller Hub (PCH) 1.05V Voltage Multi-adjustment, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock UEFI Tech Service, ASRock Easy Driver Installer, ASRock USB Key, CPU/Chassis Quiet Fan, CPU/Chassis Fan Multi-Speed Control, Triple Monitor, ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock Cloud, High Density Glass Fabric PCB, ASRock UEFI Guide
Diverse
Udstyr inkluderet
I/O- bagvæg
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
Drivers & Utilities, ASRock A-Tuning, Antivirus (prøveversion), Start8 (30 dages prøvetid), Google Chrome Browser, Google ChromeToolbar
Overensstemmelsesstandarder
WHQL, FCC, ACPI 1.1, EuP Ready, ErP Ready
