Varenummer: 3453965

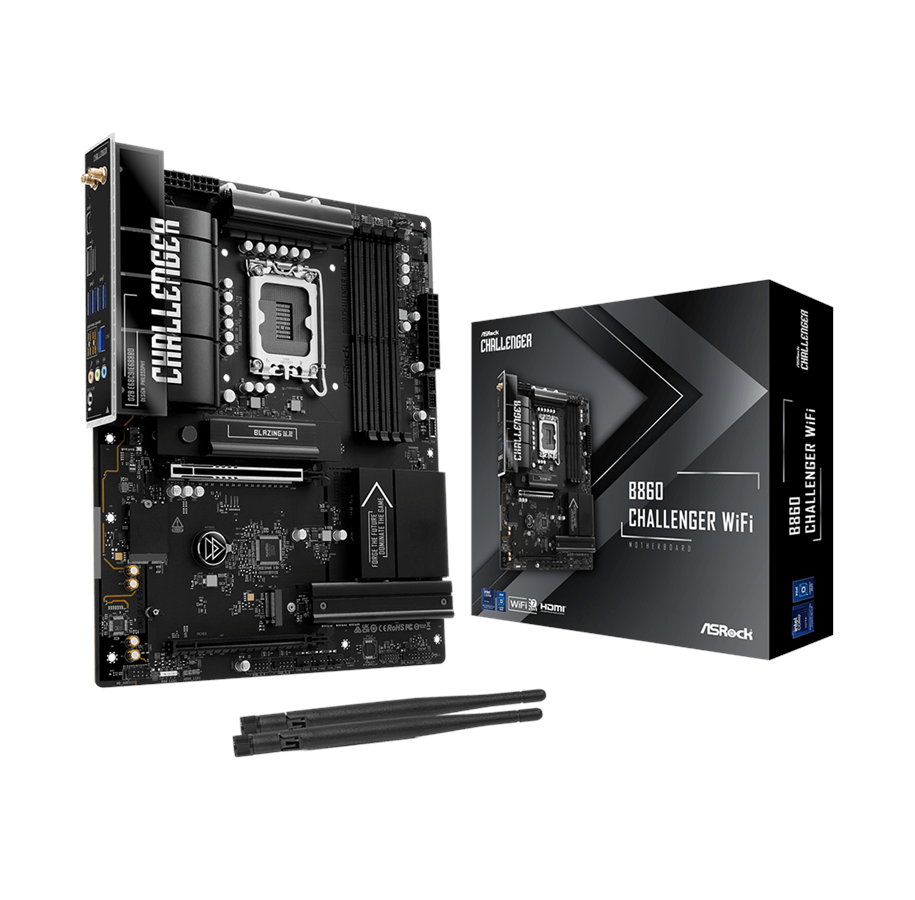

ASRock B860 Challenger WiFi Bundkort - Intel B860 - Intel LGA1851 - DDR5 RAM - ATX

Bundkort, ATX, LGA1851 sokkel, B860 Chipset, USB-C 3.2 Gen 1, USB 3.2 Gen 1, Wi-Fi 7, Bluetooth, 2.5 Gigabit LAN, onboard grafik (CPU påkrævet), HD Audio (8-kanaler)

Læs mere
1.261,00 kr. 1.008,80 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Fjernlager, 4-5 dages levering

The ASRock B860 Challenger WiFi motherboard is designed to meet the demands of modern computing. Its high-definition audio codec from Realtek delivers an immersive 8-channel sound experience, making it suitable for both gaming and entertainment. With support for Intel Core Ultra processors and DDR5 RAM technology, this motherboard provides robust performance and impressive speed capabilities, scaling up to 8666 MHz when overclocked. Multiple PCIe slots allow for extensive expansion options, accommodating the latest graphics cards and storage solutions.Networking features include 2.5 Gigabit Ethernet and Wi-Fi 7 capability, ensuring fast and reliable connectivity for all users. The motherboard also integrates a variety of USB ports, including USB-C 3.2 Gen 1, offering ample connections for peripherals and accessories. Additionally, built-in software functionalities such as ASRock's Polychrome RGB, Nahimic Audio Enhancer, and EZ Mode create a user-friendly interface while adding customization possibilities. The B860 Challenger WiFi is a choice for gamers and creators seeking a powerful and versatile foundation for their systems.

CPU

RAM

Producent
Varenummer
3453965
Model
90-MXBUC0-A0UAYZ
Ean
4711581494190
Til producentens hjemmeside
Produktbeskrivelse
ASRock B860 Challenger WiFi - bundkort - ATX - LGA1851 sokkel - B860
Produkttype
Bundkort - ATX
Chipsættype
Intel B860
Processor-socket
1 x LGA1851 sokkel
Kompatible processorer
(understøtter Intel Core Ultra-processorer (Serie 2))
Max RAM-størrelse
256 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet, clocked unbuffered
Lagringsporte
4 x SATA-600 (RAID), 2 x Hyper M.2, 1 x Blazing M.2
USB / FireWire porte
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 6 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2.5 Gigabit Ethernet

Generelt

Produkttype
Bundkort - ATX
Chipsættype
Intel B860
Processor-socket
LGA1851 sokkel
Max antal processorer
1
Kompatible processorer
(understøtter Intel Core Ultra-processorer (Serie 2))

Understøttet RAM

Maks. størrelse
256 GB
Teknologi
DDR5
Bus Clock
8666 MHz (O.C.), 5600 MHz, 6800 MHz (O.C.), 6533 MHz (O.C.), 4800 MHz, 5600 MHz (O.C.), 4400 MHz
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet, clocked unbuffered
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0, AMD EXPO-teknologi

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC897
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværk controller
Dragon RTL8125BG
Netværks interfaces
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 2.5 Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4-modus)
1 x M.2 socket (2230 M.2 Key E-åbning)
2 x M.2 socket (2280 M.2 Key M-åbning)
1 x M.2 socket (2230/2242/2260/2280 M.2 Key M åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 2 x Hyper M.2
PCIe 5.0 -stikforbindelser: 1 x Blazing M.2
Interface
2 x antenne
1 x LAN (2.5Gigabit Ethernet)
1 x HDMI
1 x USB-C 3.2 Gen 1
6 x USB 3.2 Gen 1
2 x USB 2.0
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
Interne interfaces
1 x USB-C 3.2 Gen 1 - intern stik
2 x USB 3.2 Gen 1 - intern stik
4 x USB 2.0 - intern stik
1 x SPI - intern stik
1 x audio - intern stik
1 x højttaler - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS
Hardware egenskaber
10+1+1+1+1 Power Phase Design, ASRock Auto Driver Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, ASRock Lightning Gaming Ports, ASRock My Favorites in UEFI, ASRock Polychrome RGB, ASRock POST Status Checker (PSC), BIOS FlashBack-knap, Intel Adaptive Boost Technology (ABT), Intel Hybrid Technology, Intel Thermal Velocity Boost (TVB), Intel Turbo Boost Max Technology 3.0, præmonteret I/O-skjold, Nahimic Audio Enhacer, Surface Mount Technology (SMT), Dr.MOS MOSFET, forstærkede PCIe-åbninger, aluminiumkølelegemedesign, chipset-kølelegeme, DIY Friendly Design

Diverse

Udstyr inkluderet
2 x ASRock WiFi 2.4/5/6 GHz Antennas, 1 x M.2 skrue, standoff til M.2 sokkel
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software, ASRock A-Tuning
Overensstemmelsesstandarder
HDCP 2.3, FCC, EuP Ready, ErP Ready
Bredde
30.5 cm
Dybde
24.4 cm

Ovenstående informationer/specifikationer kan løbende ændres. I tilfælde af trykfejl vedrørende pris eller udsolgte varer bestræber vi os på hurtigst muligt at opdatere siden. Hvis en pris er åbenlyst forkert, er Happii ikke forpligtet til at levere det pågældende produkt til den forkerte pris. Enkelte tekster kan være autogenererede eller maskinoversatte, og der kan derfor fremkomme tekster, som virker misvisende.
