Varenummer: 2532941

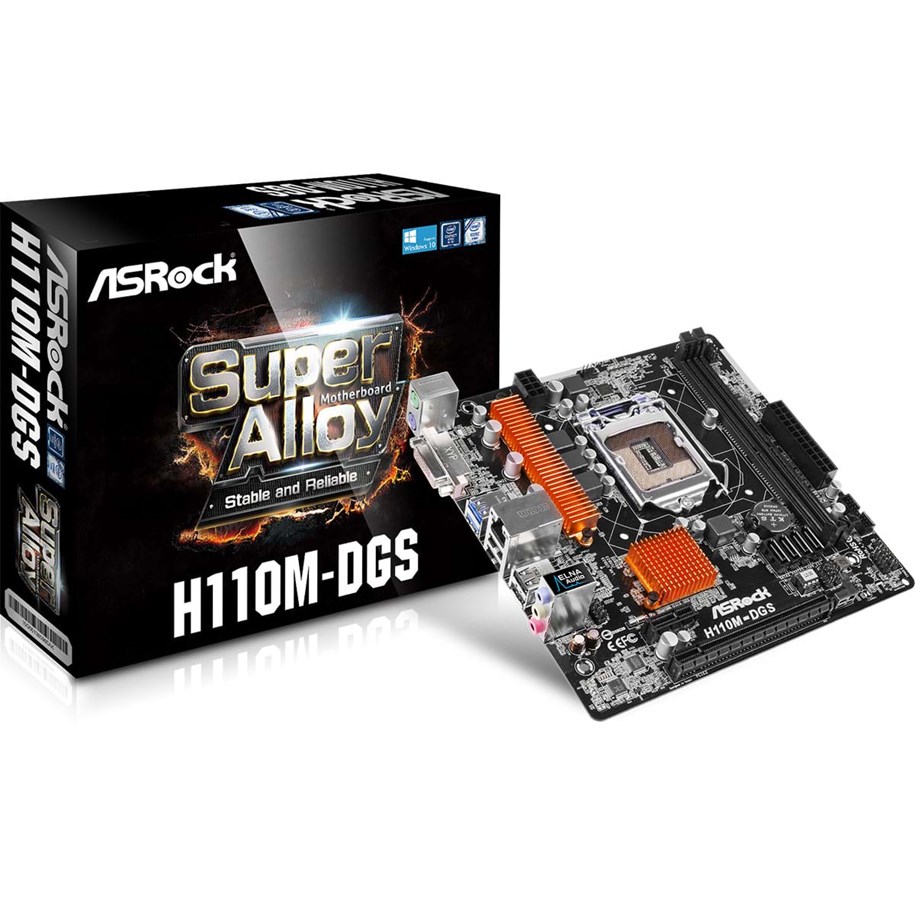

ASRock H110M-DGS Bundkort - Intel H110 Express - Intel LGA1151 socket - DDR4 RAM - Micro-ATX

Bundkort, Micro-ATX, Intel LGA1151 Socket, Intel H110, PCI-Express x16, Dual DDR4-2133 - 2 x DIMM slots, 4 x SATA-600, USB 3.0, DVI-D, Realtek 8111GR Gigabit LAN, Intel HD Graphics understøttelse (CPU påkrævet), Realtek ALC887 HD Audio (8-kanaler)

Varen er udgået

What you've never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you'd like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn't melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. The MOS heatsink dissipates heat drastically. It prevents the system from throttling, thus having a high LinX Gflops performance.Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisf

Producent
Varenummer
2532941
Model
H110M-DGS
Ean
4717677328950
Til producentens hjemmeside
Produktbeskrivelse
ASRock H110M-DGS - 3.0 - bundkort - micro-ATX - LGA1151 Socket - H110
Produkttype
Bundkort - micro-ATX
Chipsættype
Intel H110 Express
Processor-socket
1 x LGA1151 Socket
Kompatible processorer
Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Max RAM-størrelse
32 GB
RAM understøttet
2 DIMM slots - DDR4, ikke-ECC, ikke bufferet
Lagringsporte
4 x SATA-600
USB / FireWire porte
2 x USB 3.0 + 4 x USB 2.0 + (2 x USB 3.0 + 2 x USB 2.0 via samlekasser)
Maks. allokeret RAM-størrelse
1024 MB
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet

Generelt

Produkttype
Bundkort - micro-ATX
Chipsættype
Intel H110 Express
Processor-socket
LGA1151 Socket
Max antal processorer
1
Kompatible processorer
Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)

Understøttet RAM

Maks. størrelse
32 GB
Teknologi
DDR4
Bus Clock
2133 MHz
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 2.0

Grafik

Maks. allokeret RAM-størrelse
1024 MB

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC887
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværk controller
Realtek RTL8111C
Netværks interfaces
Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
2 x DIMM 288-pins
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 2.0 x1
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - 4 enheder
Interface
1 x PS/2-mus
1 x PS/2-tastatur
1 x DVI-D
2 x USB 3.0
4 x USB 2.0
1 x LAN (Gigabit Ethernet)
1 x audio linje-ud - mini-jack
1 x audio linje-ind - mini-jack
1 x mikrofon - mini-jack
Interne interfaces
2 x USB 3.0 - intern stik
2 x USB 2.0 - intern stik
1 x audio - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
Flersproget BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 5.0 support
Manuelle indstillinger
Kerne-spænding for processor
Hardwareovervågning
CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding, detektion af åben etui
Sov/ Vågn
Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber
Chassis intrusion styring, ASRock Instant Flash, HDCP kompatibel, Intel Extreme Hukommelses Profil (XMP) support, 5 Phase Power Design, ASRock APP Charger, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, ASRock OMG (Online Management Guard), ASRock Internet Flash, Digi Power Design, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ESD Protection, Dual-Stack MOSFET (DSM), ASRock Fast Boot, ASRock Restart to UEFI, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock UEFI Tech Service, ASRock Easy Driver Installer, ASRock USB Key, CPU/Chassis Quiet Fan, CPU/Chassis Fan Multi-Speed Control, 4K opløsningssupport, ELNA Audio Capacitors, ASRock A-Tuning, ASRock Full Spike Protection, ASRock Cloud, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock My Favorites in UEFI, ASRock Live Update
