Varenummer: 3270282

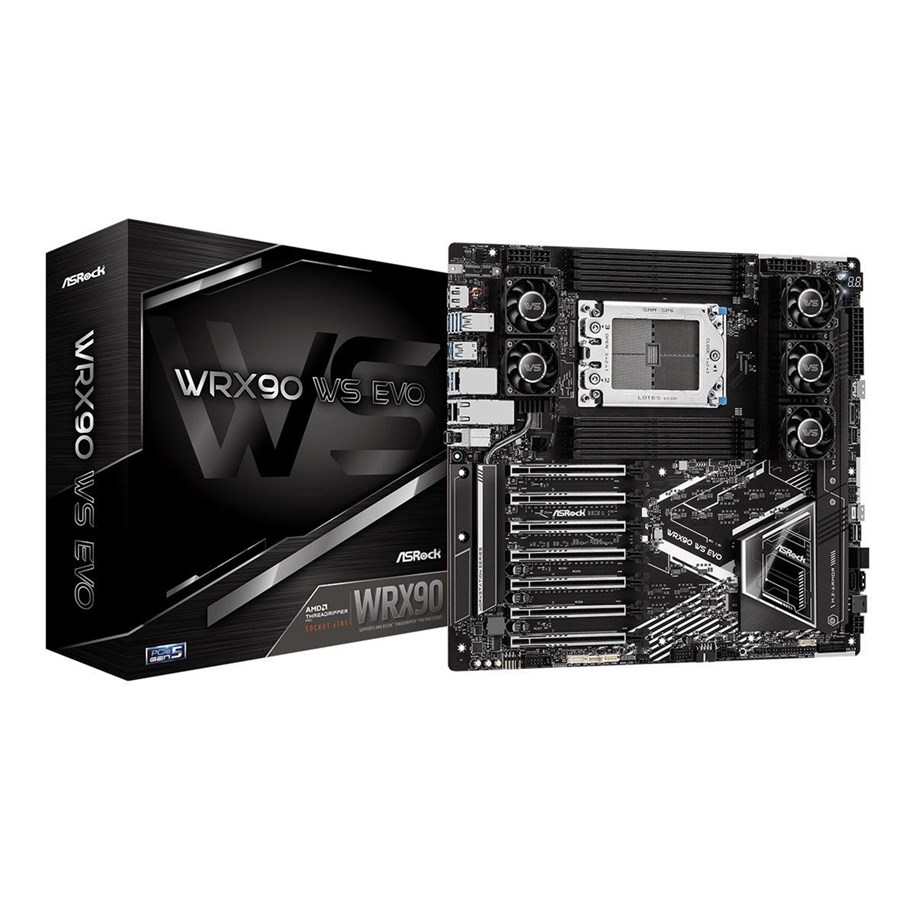

ASRock WRX90 WS EVO Bundkort - AMD WRX90 - AMD sTR5 - DDR5 RAM - Extended ATX
Bundkort, forlænget ATX / SSI EEB, Socket sTR5, AMD WRX90 Chipset, USB-C 3.2 Gen 2x2, USB4, USB 3.2 Gen 1, USB 3.2 Gen 2, 10 Gigabit LAN, onboard grafik, HD Audio (8-kanaler)
8.575,00 kr.
6.860,00 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Fjernlager, 4-5 dages levering
The ASRock WRX90 WS EVO motherboard is designed to cater to the needs of professionals and enthusiasts alike. With its support for Ryzen ThreadRipper PRO processors and DDR5 SDRAM at speeds up to 7600 MHz (O.C.), it is prepared for high-performance computing. The motherboard is engineered with a focus on reliability and efficiency, featuring a robust 18+3+3 Phase Power Design, 110A Power Stage, and XXL Aluminum Alloy Heatsink to ensure optimal power delivery and cooling.For connectivity, it includes USB4, USB 3.2 Gen 2, and 10 Gigabit Ethernet, facilitating rapid data transfers and expansive peripheral compatibility. Storage solutions are impressive, with support for both Hyper M.2 and Blazing M.2 sockets, enabling fast access to data. Additionally, the Realtek ALC1220 audio codec delivers a rich sound experience, enhancing every interaction with your PC. Whether for professional workloads, gaming, or content creation, the WRX90 WS EVO motherboard is equipped to deliver high performance and reliability.
Producent
Varenummer
3270282
Model
90-MXBMH0-A0UAYZ
Ean
4710483945199
Til producentens hjemmeside
Produktbeskrivelse
ASRock WRX90 WS EVO - bundkort - forlænget ATX / SSI EEB - Socket sTR5 - AMD WRX90
Produkttype
Bundkort - forlænget ATX / SSI EEB
Chipsættype
AMD WRX90
Processor-socket
1 x Socket sTR5
Kompatible processorer
Ryzen ThreadRipper PRO
Max RAM-størrelse
2 TB
RAM understøttet
8 DIMM åbninger - DDR5, ECC, i buffer, 3DS-registreret, registreret
Lagringsporte
4 x SATA-600 (RAID), 1 x Hyper M.2, 1 x Blazing M.2, 2 x SlimSAS
USB / FireWire porte
2 x USB4 + 4 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Grafik
ASPEED AST2600
Audio
HD Audio (8-kanaler)
LAN
10 Gigabit Ethernet
Generelt
Produkttype
Bundkort - forlænget ATX / SSI EEB
Chipsættype
AMD WRX90
Processor-socket
Socket sTR5
Max antal processorer
1
Kompatible processorer
Ryzen ThreadRipper PRO
Understøttet RAM
Maks. størrelse
2 TB
Teknologi
DDR5
Bus Clock
7600 MHz (O.C.)
Understøttet RAM-integritetskon
ECC
Registreret eller buffer
I buffer, 3DS-registreret, registreret
Egenskaber
8-kanals hukommelsesarkitektur
Grafik
Grafik controller
ASPEED AST2600
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC1220
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværk controller
Intel X710-AT2
Netværks interfaces
10 Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU
8 x DIMM 288-pins
7 x PCIe 5.0 x16
1 x M.2 socket (2260/2280 M.2 Key M-åbning)
1 x M.2 socket (2260/2280/22110 M.2 Key M åbning)
8 x DIMM 288-pins
7 x PCIe 5.0 x16
1 x M.2 socket (2260/2280 M.2 Key M-åbning)
1 x M.2 socket (2260/2280/22110 M.2 Key M åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x SlimSAS - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -stikforbindelser: 1 x SlimSAS - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -stikforbindelser: 1 x Hyper M.2 - 1 enheder
PCIe 5.0 -stikforbindelser: 1 x Blazing M.2 - 1 enheder
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x SlimSAS - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -stikforbindelser: 1 x SlimSAS - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -stikforbindelser: 1 x Hyper M.2 - 1 enheder
PCIe 5.0 -stikforbindelser: 1 x Blazing M.2 - 1 enheder
Interface
1 x DisplayPort
1 x SPDIF-ud
2 x USB4
4 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
2 x LAN (10Gigabit Ethernet)
1 x IPMI
1 x audio linje-ud
1 x mikrofon
1 x SPDIF-ud
2 x USB4
4 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
2 x LAN (10Gigabit Ethernet)
1 x IPMI
1 x audio linje-ud
1 x mikrofon
Interne interfaces
2 x SGPIO - intern stik
1 x VGA - intern stik
1 x audio - intern stik
1 x seriel - intern stik
1 x USB-C 3.2 Gen 2x2 - intern stik
2 x USB 3.2 Gen 1 - intern stik
4 x USB 2.0 - intern stik
1 x VGA - intern stik
1 x audio - intern stik
1 x seriel - intern stik
1 x USB-C 3.2 Gen 2x2 - intern stik
2 x USB 3.2 Gen 1 - intern stik
4 x USB 2.0 - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser, 2 x 6-pins ATX12V stikforbindelser
Egenskaber
BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS
Hardware egenskaber
15µ Gold Contact, ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, 14 Layer PCB, 2oz Copper PCB, Server-Grade Ultra-Low-Loss PCB, 18+3+3 Phase Power Design, 110 A Power Stage, 20K sorte kapacitorer, Hi-Density Power Connectors, XXL Aluminum Alloy Heatsink, ASRock Polychrome RGB, Smart Power Stage (SPS) teknologi, Nahimic Audio Enhacer
Diverse
Udstyr inkluderet
IO-skjold, 2 x M.2 skruer, 2 x standoff til M.2 sokkel, 2 termistorkabler
Medfølgende ledninger
4 x Seriel ATA kabel
1 x Multi PSU-adapterkabel
1 x Multi PSU-adapterkabel
Med software
ASRock A-Tuning, ASRock Polychrome SYNC
Overensstemmelsesstandarder
FCC, EuP Ready, ErP Ready, CEC Tier II
Bredde
30.5 cm
Dybde
33 cm
Pakkedetaljer
Boks
