Varenummer: 3428315

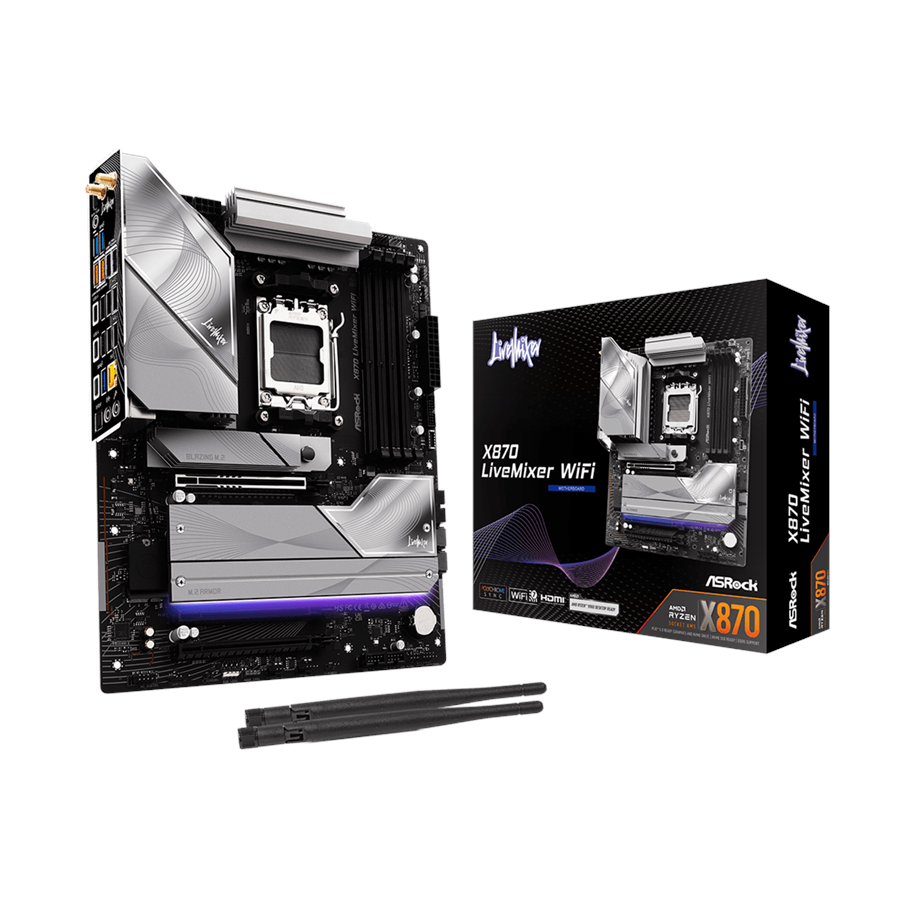

ASRock X870 LIVEMIXER WIFI Bundkort - AMD X870 - AMD AM5 - DDR5 RAM - ATX

Bundkort, ATX, Socket AM5, AMD X870 Chipset, USB4, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth, onboard grafik (CPU påkrævet), HD Audio (8-kanaler)

Læs mere
1.853,00 kr. 1.482,40 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Fjernlager, 3 dages levering

The ASRock X870 LIVEMIXER WIFI motherboard delivers a platform for building a high-performance system. Featuring support for the AMD Ryzen 7000/8000/9000 Series processors and equipped with a Socket AM5, this motherboard is designed for gamers and content creators seeking efficiency and versatility. The 4 DIMM slots enable dual-channel memory architecture, accommodating DDR5 SDRAM with speeds up to 8000 MT/s (O.C.). Enhanced with high-definition audio technology and a Realtek ALC4082 codec, it ensures immersive sound quality for both gaming and multimedia applications. Connectivity is abundant with multiple USB ports including USB 4, USB-C, and traditional USB connections, making it easy to connect peripherals and external devices. Equipped with Wi-Fi 6 and Bluetooth 5.4 capabilities, this motherboard ensures fast and reliable networking options. The board's design features a DIY-friendly layout and includes essential hardware improvements like a pre-mounted I/O shield and an enlarged heatsink armor for optimal thermal performance. For users who demand versatility, the ASRock X870 LIVEMIXER WIFI provides multiple expansion slots for graphics and storage options including Blazing M.2 and Hyper M.2 sockets. This combination of features and technology makes it a choice for building a future-ready PC.

CPU

RAM

Producent
Varenummer
3428315
Model
X870 LIVEMIXER WIFI
Ean
4711581491823
Til producentens hjemmeside
Produktbeskrivelse
ASRock X870 LIVEMIXER WIFI - bundkort - ATX - Socket AM5 - AMD X870
Produkttype
Bundkort - ATX
Chipsættype
AMD X870
Processor-socket
1 x Socket AM5
Kompatible processorer
Ryzen (understøtter Ryzen 7000/8000/9000 Serien)
Max RAM-størrelse
256 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, ECC, ikke bufferet
Lagringsporte
2 x SATA-600 (RAID), 2 x Hyper M.2, 2 x Blazing M.2
USB / FireWire porte
2 x USB4 + 1 x USB-C 3.2 Gen 1 + 7 x USB 3.2 Gen 1 + 6 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Generelt

Produkttype
Bundkort - ATX
Chipsættype
AMD X870
Processor-socket
Socket AM5
Max antal processorer
1
Kompatible processorer
Ryzen (understøtter Ryzen 7000/8000/9000 Serien)

Understøttet RAM

Maks. størrelse
256 GB
Teknologi
DDR5
Bus Clock
8000 MT/s (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC, ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi, Intel Extreme Memory Profiles (XMP)

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC4082
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværk controller
Realtek RTL8126
Netværks interfaces
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 5.0 x16
2 x PCIe 3.0 x16 (x4-modus)
1 x M.2 socket (Key E)
3 x M.2 socket (2280 M.2 Key M-åbning)
1 x M.2 socket (2230/2242/2260/2280 M.2 Key M åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA - RAID 0 / RAID 1
PCIe 4.0 -stikforbindelser: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 -stikforbindelser: 2 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10
Interface
2 x antenne
1 x HDMI
2 x USB4
1 x USB-C 3.2 Gen 1
7 x USB 3.2 Gen 1
6 x USB 2.0
1 x LAN (5Gigabit Ethernet)
1 x mikrofon - mini-jack
1 x audio linje-ud - mini-jack
1 x SPDIF-ud
Interne interfaces
4 x USB 2.0 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x USB-C 3.2 Gen 2x2 - intern stik
1 x audio - intern stik
1 x SPI - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 2 x 8-pins ATX12V stikforbindelser

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS
Hardware egenskaber
16+2+1 Phase Power Design, Enlarged Heatsink Armor, præmonteret I/O-skjold, 20K sorte kapacitorer, BIOS FlashBack-knap, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), VRM kølelegemedesign, chipset-kølelegeme, forstørret M.2 kølelegeme, Nahimic Audio Enhacer, Hi-Density Power Connectors, 8 Layer PCB, DIY Friendly Design, anti-tab M.2 kølelegemeskrue, aluminiumkølelegemedesign

Diverse

Udstyr inkluderet
2 x ASRock WiFi 2.4/5/6 GHz Antennas, termistorkabel
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
ASRock A-Tuning, ASRock Polychrome SYNC
Overensstemmelsesstandarder
ErP Ready, EuP Ready, FCC
Bredde
30.5 cm
Dybde
24.4 cm
