Varenummer: 2512103

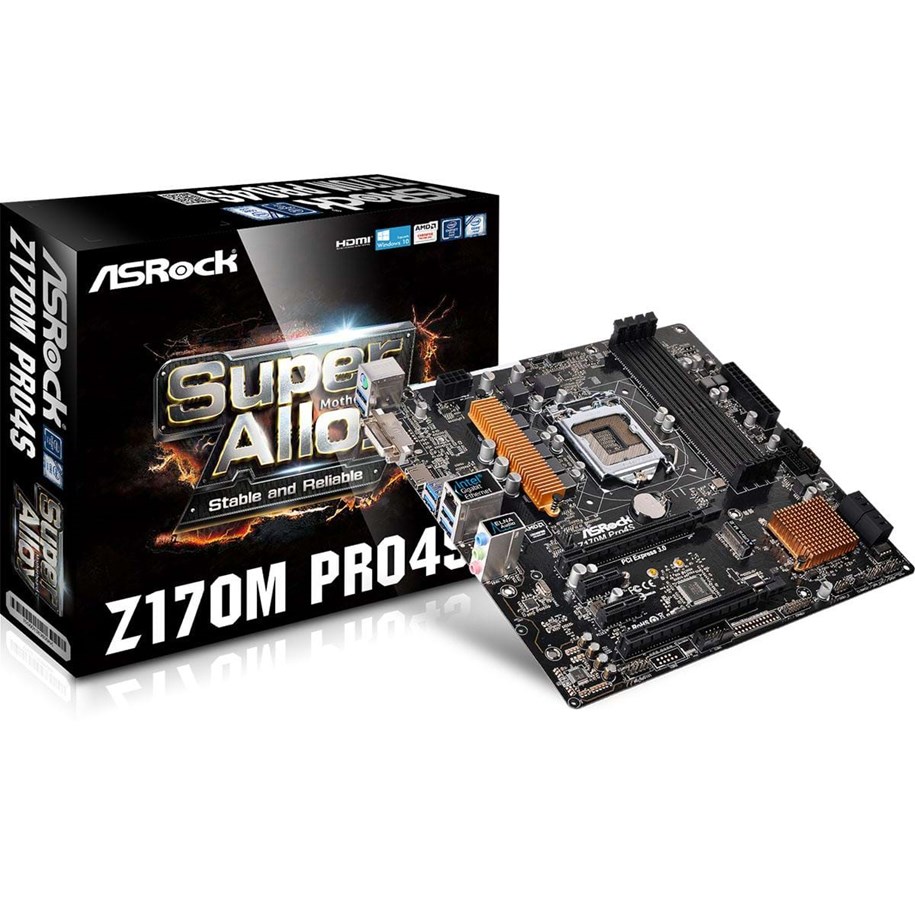

ASRock Z170M PRO4S Bundkort - Intel Z170 - Intel LGA1151 - DDR4 RAM - Micro-ATX

Bundkort, Micro-ATX, Intel LGA1151 Socket, Intel Z170, PCI-Express x16, Dual DDR4-2133 - 4 x DIMM slots, 6 x SATA-600 / 1 x M.2 (2242 / 2260 / 2280 / 22110), USB 3.0, DVI-D / HDMI (understøtter 4K), Intel I219-V Gigabit LAN, Intel HD Graphics understøttelse (CPU påkrævet), Realtek ALC892 HD Audio (8-kanaler)

Varen er udgået
Se lignende produkter

What you've never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you'd like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn't melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a high density glass fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.The power phase design offers smooth power delivery to the CPU, unmatched overclocking capabilities, lower temperature for advanced gamers, and reinforced system stability for taking on all sorts of arduous computing tasks.

Producent
Varenummer
2512103
Model
Z170M PRO4S
Ean
4717677327076
Til producentens hjemmeside
Produktbeskrivelse
ASRock Z170M Pro4S - bundkort - micro ATX - LGA1151 Socket - Z170
Produkttype
Bundkort - micro ATX
Chipsættype
Intel Z170
Processor-socket
1 x LGA1151 Socket
Kompatible processorer
Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)
Max RAM-størrelse
64 GB
RAM understøttet
4 DIMM åbninger - DDR4, ikke-ECC, ikke bufferet
Lagringsporte
6 x SATA-600 (RAID), 1 x Ultra M.2
USB / FireWire porte
6 x USB 3.0 + (2 x USB 3.0 + 2 x USB 2.0 via samlekasser)
Maks. allokeret RAM-størrelse
1792 MB
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet

Generelt

Produkttype
Bundkort - micro ATX
Chipsættype
Intel Z170
Processor-socket
LGA1151 Socket
Max antal processorer
1
Kompatible processorer
Pentium, Celeron, Core i5, Core i3, Core i7 (understøtter 6th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron)

Understøttet RAM

Maks. størrelse
64 GB
Teknologi
DDR4
Bus Clock
2133 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 2400 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 2.0

Grafik

Maks. allokeret RAM-størrelse
1792 MB

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC892
Overensstemmelsesstandarder
High Definition Audio, Premium Blu-ray audiosupport

LAN

Netværk controller
Intel I219V
Netværks interfaces
Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x4-modus)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 -stikforbindelser: 1 x M.2
RAID-egenskaber
Intel Rapid Storage Technology
Interface
1 x PS/2-tastatur/mus
6 x USB 3.0
1 x DVI-D
1 x HDMI
1 x LAN (Gigabit Ethernet)
1 x audio linje-ud - mini-jack
1 x audio linje-ind - mini-jack
1 x mikrofon - mini-jack
Interne interfaces
2 x USB 3.0 - intern stik
2 x USB 2.0 - intern stik
1 x audio - intern stik
1 x seriel - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
Flersproget BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 5.0 support
Manuelle indstillinger
Kerne-spænding for processor, hukommelsesspænding
Hardwareovervågning
CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, CPU kerne-spænding
Sov/ Vågn
Aktivering af LAN (wake on LAN = WOL)
Hardware egenskaber
ASRock Instant Flash, HDCP kompatibel, 6 Phase Power Design, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, AMD CrossFireX-teknologisupport, AMD Quad CrossFireX-teknologisupport, ASRock OMG (Online Management Guard), ASRock Internet Flash, Digi Power Design, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ASRock Fast Boot, ASRock Restart to UEFI, ASRock UEFI System Browser, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock UEFI Tech Service, ASRock Easy Driver Installer, ASRock USB Key, CPU/Chassis Quiet Fan, CPU/Chassis Fan Multi-Speed Control, 4K opløsningssupport, Supports Intel K-Series unlocked CPU, ASRock BCLK, ELNA Audio Capacitors, ASRock A-Tuning, ASRock Full Spike Protection, ASRock Cloud, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, ASRock Live Update
