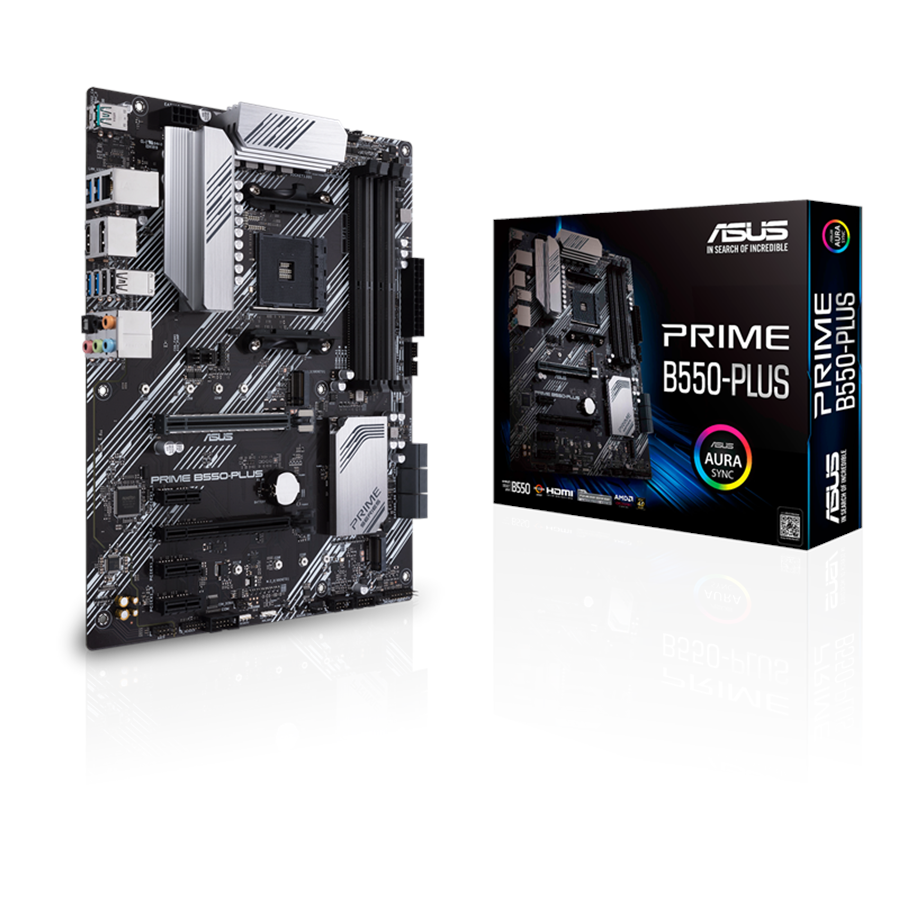

ASUS PRIME B550-PLUS Bundkort - AMD B550 - AMD AM4 socket - DDR4 RAM - ATX
Bundkort, størrelse: ATX, AMD AM4 socket, AMD B550 chipset, 1 x PCI-Express 4.0 x16, Dual DDR4-3200 4 x DIMM slots, lagrings tilslutninger: 6 x SATA-600 / 1 x M.2 NVMe PCI-Express 3.0 / 1 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 type A & C, skærm tilslutning: 1 x Displayport / 1 x HDMI 2.1, Realtek 8111H 1 Gigabit netværk (LAN), AMD Vega Graphics supporteret (CPU med VGA påkrævet), Realtek ALC887 HD Audio (8-kanaler) lydkort, Crossfire understøtter, ASUS AURA Sync software
Prime B550-Plus
ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
• AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
• Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C
• Comprehensive cooling: VRM heatsinks, PCH heatsink, and Fan Xpert 4
• Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware
ASUS Prime series is expertly engineered to unleash the full potential of 3rd Generation AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
VRM Heatsink and Thermal Pads
Two massive VRM heatsinks with underneath thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.
Cooler by Design
Prime B550 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.
Multiple Temperature Sources: Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
4-Pin PWM/DC Fan: Each onboard chassis fan header supports PWM and DC mode.
AIO Pump Header: A dedicated PWM/DC header for self-contained water-cooling setups.
PCIe 4.0 M.2(up to 64 Gbps) - Achieve speed with onboard M.2
PCIe 4.0 M.2 Slot supports up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to 64Gbps PCIe 4.0 storage device to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.
* The M.2_1 supports PCIe 4.0 and the M.2_2 supports PCIe 3.0.
Thunderbolt™ 3 Support
Prime B550-Plus supports ThunderboltEX 3-TR, an Intel certified Thunderbolt™ 3 add-on card that enables bi-directional speeds of up to 40 Gbps via a single cable. Additionally, an integrated Thunderbolt 3 header can support up to six devices in a daisy-chain and provide up to 100 watts of power to fast-charge devices.
USB 3.2 Gen 2 Type-A & Type-C
Numerous USB ports support high-end rigs loaded with peripherals, including a USB Type-C® and a Type-A® connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.
Addressable Gen 2 RGB Header
The addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new header also offers backward-compatibility with existing Aura RGB gear.
RAM
-
Corsair Vengeance LPX DDR4-3200 - 16GB - CL16 - Dual Channel (2 pcs) - AMD Optim...
På lager - 1-2 dages levering1.490,00 kr.
Generelt
Understøttet RAM
Audio
LAN
Ekspansion / Konnektivitet
4 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (x4-modus)
3 x PCIe 3.0 x1
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2
SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2
4 x USB 3.2 Gen 1
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x USB-C Gen2
1 x USB 3.2 Gen 2
1 x TOSLINK
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
2 x USB 2.0
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 1 - intern stik
1 x Thunderbolt - intern stik
1 x audio - intern stik
1 x seriel - intern stik
Egenskaber
Diverse
