Varenummer: 3109181

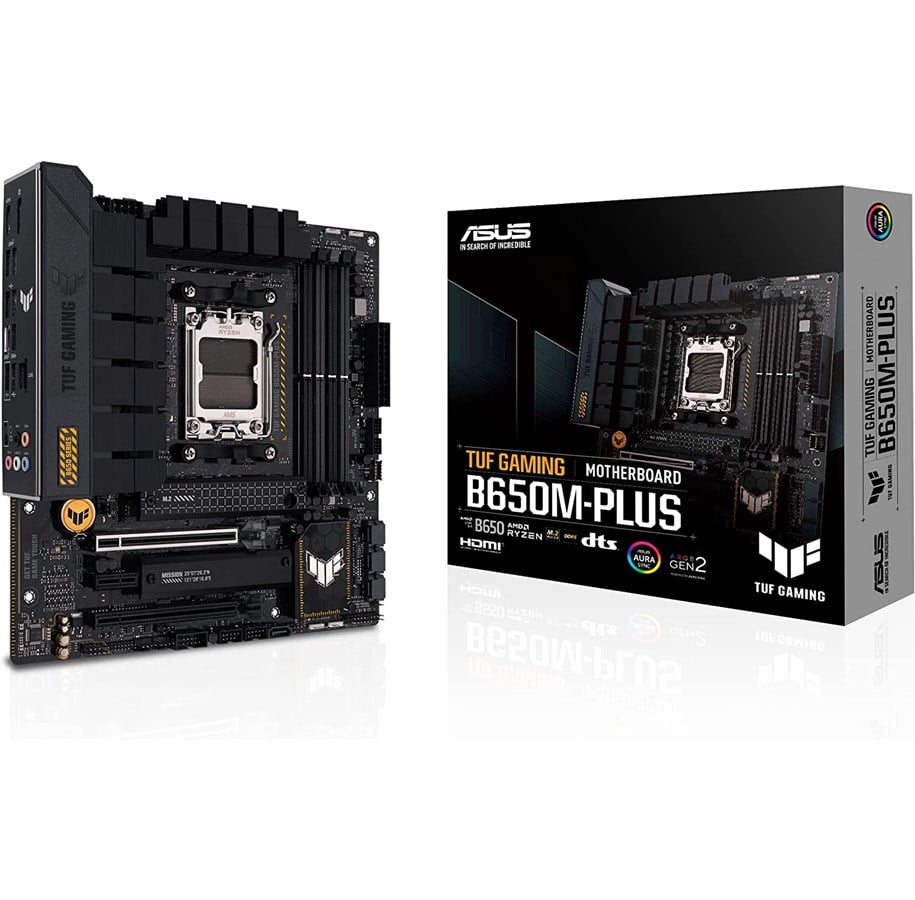

ASUS TUF GAMING B650M-PLUS Bundkort - AMD B650 - AMD AM5 socket - DDR5 RAM - Micro-ATX

Bundkort, størrelse: Micro-ATX, AMD AM5 socket, AMD B650 chipset, 1 x PCI-Express 4.0 x16, Dual DDR5-5600 4 x DIMM slots (AMD EXPO support), lagrings tilslutninger: 4 x SATA-600 / 1 x M.2 NVMe PCI-Express 4.0 / 1 x M.2 NVMe PCI-Express 5.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2x2 type A & C, skærm tilslutning: 1 x Displayport 1.4 / 1 x HDMI 2.1, Realtek 8125BG 2.5 Gigabit netværk (LAN), AMD Graphics supporteret (CPU med VGA påkrævet), Realtek ALC892 HD Audio (8-kanaler) lydkort, ASUS AURA Sync software

Læs mere
1.330,00 kr. 1.064,00 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Fjernlager, 4-5 dages levering

The ASUS TUF Gaming B650M-Plus motherboard is designed to cater to the needs of gamers and PC enthusiasts seeking a reliable, high-performance foundation for their next build. This motherboard is compatible with Ryzen 7000 Series processors, ensuring that users can leverage high CPU technology for excellent gaming and multitasking performance. With support for DDR5 memory at speeds up to 6400 MHz (O.C.), it offers a significant bandwidth boost for data-intensive applications and gaming.

The motherboard also features dual M.2 slots, accommodating both PCIe 4.0 and 5.0, which allows for fast storage configurations that can significantly reduce load times. Connectivity is a strong suit of this motherboard, with a comprehensive array of ports including HDMI, DisplayPort, and USB-C 3.2 Gen 2x2, ensuring compatibility with a wide range of peripherals and displays.

For gamers looking to customize their setup, ASUS Aura Sync provides a vast spectrum of colors and effects to synchronize lighting across an ecosystem of compatible devices. The ASUS TUF Gaming B650M-Plus is built to offer a robust platform that's reliable in long gaming sessions as well as in performance.

CPU

RAM

Producent
Varenummer
3109181
Model
90MB1BG0-M0EAY0
Ean
4711081912392
Til producentens hjemmeside
Kontakt producent
Produktbeskrivelse
ASUS TUF Gaming B650M-Plus - bundkort - micro ATX - Socket AM5 - AMD B650
Produkttype
Bundkort - micro ATX
Chipsættype
AMD B650
Processor-socket
1 x Socket AM5
Kompatible processorer
Ryzen (understøtter Ryzen 7000 Series)
Max RAM-størrelse
128 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, on-die ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte
1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
2.5 Gigabit Ethernet

Generelt

Produkttype
Bundkort - micro ATX
Chipsættype
AMD B650
Processor-socket
Socket AM5
Max antal processorer
1
Kompatible processorer
Ryzen (understøtter Ryzen 7000 Series)

Understøttet RAM

Maks. størrelse
128 GB
Teknologi
DDR5
Bus Clock
4800 MHz, 5000 MHz, 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC, on-die ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi

Audio

Type
HD Audio (8-kanaler)
Overensstemmelsesstandarder
High Definition Audio

LAN

Netværks interfaces
2.5 Gigabit Ethernet

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (x4-modus)
1 x PCIe 4.0 x1
2 x M.2 socket (2242/2260/2280 M.2 Key M åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interface
1 x HDMI
1 x DisplayPort
1 x USB-C 3.2 Gen2x2
2 x USB 3.2 Gen 2
1 x USB 3.2 Gen 1
4 x USB 2.0
2 x antenne
1 x audio linje-ind - mini-jack
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x LAN (2.5Gigabit Ethernet)
Interne interfaces
1 x USB-C 3.2 Gen 1 - intern stik
2 x USB 3.2 Gen 1 - intern stik
4 x USB 2.0 - intern stik
1 x audio - intern stik
1 x Thunderbolt - intern stik
1 x seriel - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
UEFI BIOS, ASUS EZ Flash 3
Hardware egenskaber
ASUS OptiMem II, jack retasking, audio jack detektions teknologi, BIOS FlashBack-knap, Water Pump Header, TUF LANGuard, ASUS TUF Protection, ESD Guards, overspændingsbeskyttelse, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS DIGI+ VRM, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED, VRM kølelegemedesign, Q-Slot, M.2 kølelegeme, ASUS EZ DIY, præmonteret I/O-skjold, BIOS FlashBack LED, ASUS ProCool, ASUS SafeDIMM, ASUS Aura Sync, ASUS TurboV EVO, CrashFree BIOS 3, 12+2 Phase Power Design, 60 A Power Stage, TUF Components

Diverse

Udstyr inkluderet
2 x M.2 gummipakke, M.2 skruepakke, TUF-certificeringskort
Medfølgende ledninger
2 x Seriel ATA kabel
Med software
Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, PC Cleaner, ASUS TUF GAMING CPU-Z, MyAsus, Norton AntiVirus (Trial), WinRAR
Overensstemmelsesstandarder
DisplayPort 1.4, FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, WEEE
Bredde
24.4 cm
Dybde
24.4 cm
