Varenummer: 2479375

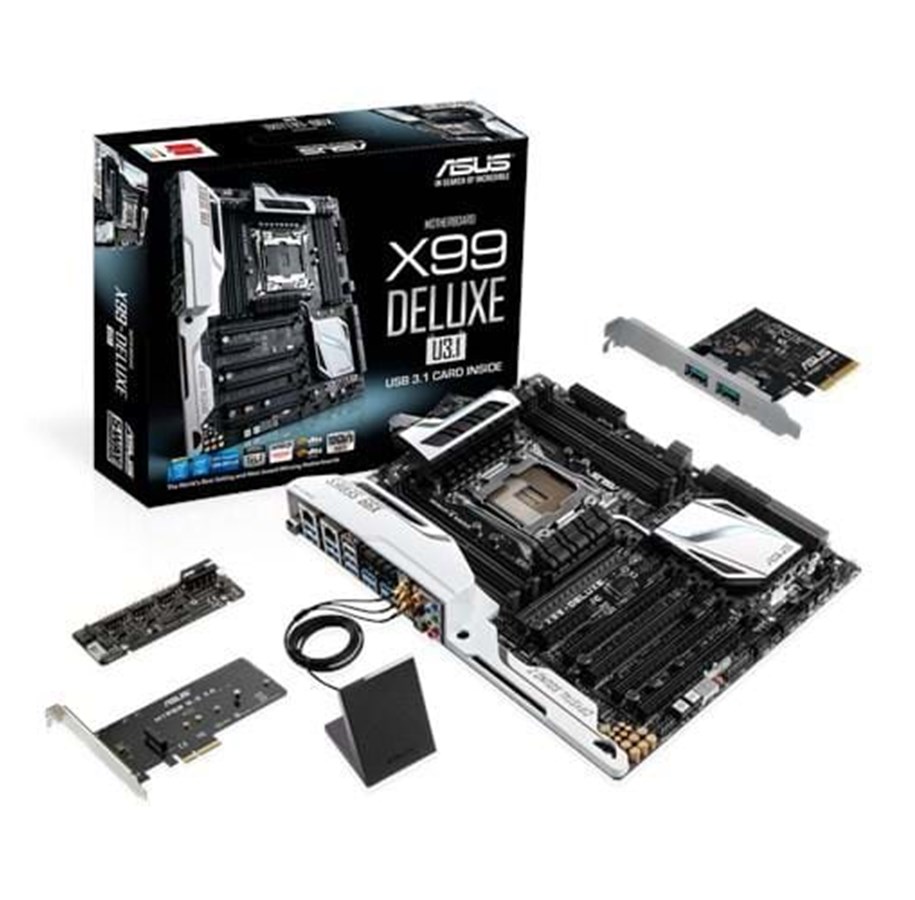

ASUS X99-DELUXE/U3.1 Bundkort - Intel X99 Express - Intel LGA2011-V3 socket - DDR4 RAM - ATX

Bundkort, ATX, Intel LGA2011-V3 Socket, Intel X99, 5 x PCI-Express x16, Quad DDR4-2133 - 8 x DIMM slots, 8 x SATA-600 / SATA Express / 1 x M.2, USB 3.0 & USB 3.1 Type A kort, Dual Intel I218-V & Intel I211-AT Gigabit LAN, 802.11ac WiFi, Bluetooth, Crystal Sound2 HD Audio (8-kanaler), understøtter 3-vejs SLI / CrossFireX

OBS - vær opmærksom på at bundkortet kræver DDR4 RAM Quad Channel, dvs. der skal bruges 4 RAM klodser

Varen er udgået
Se lignende produkter

More Cores Per CPU

Employing Haswell architecture, the Core i7-5960X, i7-5830K and i7-5820K usher in the new era multi-threaded performance. The 5960X is the successor to the 4960X, and has been upgraded to an 8-core design. The 5820K has received a core upgrade as well, now touting a 6-core design.


A New Memory Standard

DDR4 architecture delivers a veritable "quadfecta" of upgrades, with potential for higher frequencies, transfer rates, density and stability ? all at lower voltages. DDR4 is an essential piece of the new platform, a piece that has been optimized on ASUS X99 motherboards.


Thunderbolt? 2 Ready

ASUS X99 Series Motherboards are compatible with the ASUS ThunderboltEX II card (sold separately), allowing you to easily add a Thunderbolt? 2 port to your X99 system. Capable of transfer speeds up to 20 Gbps and supporting up to 6 daisy-chained devices, Thunderbolt? 2 technology is the ideal solution for external data performance.


5-Way Optimization

The combination of automated overclocking, fan controls, power efficiency, digital power delivery and per-app customization have returned in full force with upgrades on the X99-Deluxe.


Fan Xpert 3 with Fan Extension

In addition to six onboard PWM-capable fan headers, the X99-Deluxe includes the new Fan Extension Card, which adds 3 more PWM-controllable fans & thermal sensors.


PCIe M.2 x4, Two Ways

The X99-Deluxe supports installation of up to two PCIe M.2 x4 SSDs (using the integrated slot and included PCIe card), delivering transfer speeds up to 32 Gb/s.


OC Socket

Patent-pending proprietary socket design boosts enables higher DD4 frequencies, lower latencies and enhanced stability while overclocking and is compatible with all Haswell-E CPUs.


The Fastest Onboard Wi-Fi

Integrating dual-band 3x3 802.11ac wireless featuring TurboQAM and Beamforming ensures systems built with the X99-Deluxe are ready to join the most advanced Wi-Fi networks.


Crystal Sound 2

Designed for gamers, Crystal Sound 2 combines a discrete hardware design with a comprehensive software package to deliver unbeatable audio


SupremeFX 2014

Enthusiast and gamer collide on Rampage V Extreme, with SupremeFX discrete-caliber integrated audio available on a non-Formula motherboard for the first time.


PCIe M.2 x4

Supporting 2260, 2280 and even 22110 length PCIe M.2 SSDs, Rampage V Extreme delivers up to 32 Gb/s speeds and is compatible with a wide variety of drives.


Ready for Tweaking

Continuing the legacy of catering to every overclocker?s whim, Rampage V Extreme supports 4-way GPU configurations and includes the most robust UEFI to date.


OC Socket

Patent-pending proprietary socket design boosts enables higher DD4 frequencies, lower latencies and enhanced stability while overclocking and is compatible with all Haswell-E CPUs.


Go Faster on Wi-Fi

Onboard dual-band 802.11ac Wi-Fi delivers the fastest wireless performance, while keeping PCIe expansion slots available for large GPUs.


Extreme Engine Digi+ IV

Combining the most advanced VRM to date with new component selections ideal for Haswell-E characteristics, the R5E is well-suited for recording breaking.

Producent
Varenummer
2479375
Model
90MB0JF1-M0EAY0
Ean
4712900000993
Til producentens hjemmeside
Kontakt producent
Produktbeskrivelse
ASUS X99-DELUXE/U3.1 - bundkort - ATX - LGA2011-v3 sokkel - X99 - med ASUS USB 3.1 Type-A CARD
Produkttype
Bundkort - ATX
Chipsættype
Intel X99 Express
Processor-socket
1 x LGA2011-v3 sokkel
Kompatible processorer
Core i7, Xeon E5-2600 v3 serie, Xeon E5-1600 v3 series
Max RAM-størrelse
64 GB
RAM understøttet
8 DIMM åbninger - DDR4, ikke-ECC, ikke bufferet
Lagringsporte
8 x SATA-600 (RAID), 2 x SATA Express port, 1 x M.2
USB / FireWire porte
10 x USB 3.0 + 2 x USB 2.0 + (4 x USB 3.0 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Bluetooth, 2 x Gigabit Ethernet, 802.11a/b/g/n/ac
Bundtet med
ASUS USB 3.1 Type-A CARD

Generelt

Produkttype
Bundkort - ATX - med ASUS USB 3.1 Type-A CARD
Chipsættype
Intel X99 Express
Processor-socket
LGA2011-v3 sokkel
Max antal processorer
1
Kompatible processorer
Core i7, Xeon E5-2600 v3 serie, Xeon E5-1600 v3 series

Understøttet RAM

Maks. størrelse
64 GB
Teknologi
DDR4
Bus Clock
2133 MHz, 2800 MHz (O.C.), 2666 MHz (O.C.), 2400 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.)
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Intel Extreme Memory Profiles (XMP), quad kanal hukommelses arkitektur

Audio

Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC1150
Overensstemmelsesstandarder
DTS Connect, High Definition Audio, DTS UltraPC II

LAN

Netværk controller
Intel I211-AT / I218V
Netværks interfaces
Bluetooth, 2 x Gigabit Ethernet, 802.11a/b/g/n/ac

Ekspansion / Konnektivitet

Ekspansionsåbninger
1 x CPU
8 x DIMM 288-pins
5 x PCIe 3.0 x16 (dual x16 tilstand; triple: x16, x16, x8 tilstand; quad: x16, x8, x8, x8 tilstand; quint: x8 tilstand)
1 x PCIe 2.0 x4
Grænseflade (lagring)
SATA-600 -stikforbindelser: 8 x 7-pin SATA, 1 x M.2, 1 x SATA Express-port - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 -stikforbindelser: 1 x SATA Express port
RAID-egenskaber
Intel Smart Response Technology
Interface
2 x LAN (Gigabit Ethernet)
2 x USB 2.0
10 x USB 3.0
1 x audio linje-ud - mini-jack
1 x audio linje-ind - mini-jack
1 x mikrofon - mini-jack
1 x audio linje-ud (bagtil) - mini-jack
1 x audio linje-ud (centrum/subwoofer) - mini-jack
1 x TOSLINK
Interne interfaces
4 x USB 2.0 - intern stik
4 x USB 3.0 - intern stik
1 x Thunderbolt - intern stik
1 x SPDIF ud - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt

Egenskaber

BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
WfM 2.0 understøttet, Flersproget BIOS, ASUS EZ Flash 2, USB BIOS Flashback, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
Sov/ Vågn
Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber
Jack retasking, ASUS Anti-Surge Protection, MemOK!, ASUS Q-Design, ESD Guards, Q-DIMM, GPU Boost, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, audio jack detektions teknologi, ASUS EPU (Energy Processing Unit), ASUS Q-Shield, ASUS Precision Tweaker 2, NVIDIA 3-way SLI Technology Support, Teaming Technology, Intel Extreme Hukommelses Profil (XMP) support, NVIDIA Quad SLI Technology Support, ASUS 8 Phase Power Design, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), indholdsbeskyttelsesteknologi uden tab, ASUS DIGI+ VRM, Intel Smart Response Technology, ASUS USB 3.0 Boost teknologi, Q-Code, AMD Quad CrossFireX-teknologisupport, AMD 3-vejs CrossFireX teknologisupport, ASUS DIGI+ Power Control, Onboard Button, ASUS USB Charger+, ASUS Wi-Fi GO!, Disk Unlocker, ASUS 5X PROTECTION, ASUS Enhanced DRAM Overcurrent Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Clear CMOS Button, ASUS Stainless Steel Back I/O, ASUS O.C. Tuner, anti-popfunktion, Turbo LAN, ASUS Crystal Sound 2, ASUS Fan Xpert 3, Dual Intelligent Processors 5, Dedicated Audio Hardware Zone, Intel Rapid Recovery Technology, ASUS 4 Phase DRAM Power Design, Memory O.C. Design
