Varenummer: 3325854

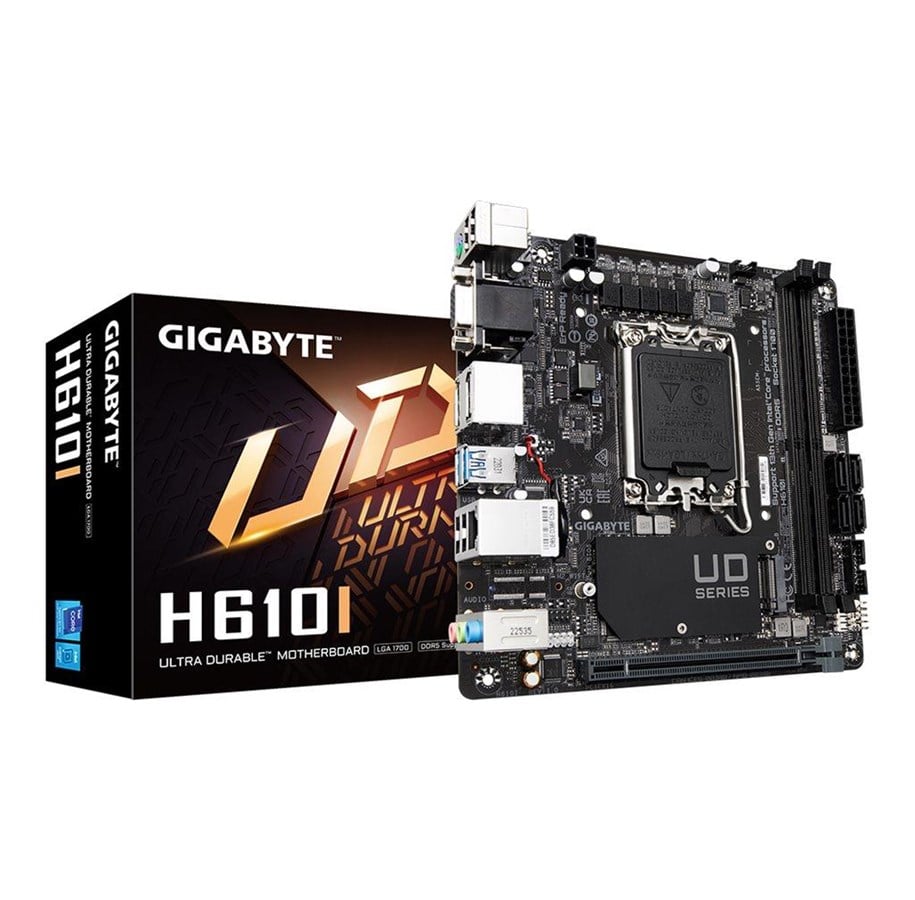

GIGABYTE H610I Bundkort - Intel H610 - Intel LGA1700 - DDR5 RAM - Mini-ITX
Bundkort, størrelse: Mini-ITX, Intel LGA1700 socket, Intel H610 chipset, 1 x PCI-Express 4.0 x16, Dual DDR5-5600 2 x DIMM slots (Intel XMP support), lagrings tilslutninger: 4 x SATA-600 / 1 x M.2 NVMe PCI-Express 3.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 1 type A, skærm tilslutning: 2 x Displayport 1.2 / 1 x HDMI 1.4 / 1 x VGA, Intel I219-V 1 Gigabit netværk (LAN), Intel Xe Graphics supporteret (CPU med VGA påkrævet), Realtek HD Audio (8-kanaler) lydkort, Gigabyte Fusion RGB 2.0 software
Billigste fragt (privatkunde) 33,00 kr.
Fjernlager, 5-6 dages levering
Discover the GIGABYTE H610I motherboard, designed to elevate your computing experience with its support for 12th/13th and 14th Generation Intel Core processors. This mini ITX motherboard is engineered for performance, featuring 2 DIMM slots that support up to 5600 MHz DDR5 SDRAM, enabling fast memory speeds and improved system responsiveness.
With a PCIe 4.0 x16 slot and an M.2 socket, it offers ample expansion for high-speed storage and graphics cards, ensuring your system is prepared for future needs. The GIGABYTE H610I also boasts a comprehensive cooling solution with Smart Fan 6 technology, allowing for precise fan speed control to keep your system cool while minimizing noise. Additionally, its high definition audio support delivers a rich sound experience, perfect for gaming, movies, and music. Whether you're building a new PC or upgrading an existing one, the GIGABYTE H610I motherboard offers a solid foundation for a high-performance system.
With a PCIe 4.0 x16 slot and an M.2 socket, it offers ample expansion for high-speed storage and graphics cards, ensuring your system is prepared for future needs. The GIGABYTE H610I also boasts a comprehensive cooling solution with Smart Fan 6 technology, allowing for precise fan speed control to keep your system cool while minimizing noise. Additionally, its high definition audio support delivers a rich sound experience, perfect for gaming, movies, and music. Whether you're building a new PC or upgrading an existing one, the GIGABYTE H610I motherboard offers a solid foundation for a high-performance system.
Producent
Varenummer
3325854
Model
H610I
Ean
4719331855222
Til producentens hjemmeside
Produktbeskrivelse
Gigabyte H610I - 1.0 - bundkort - mini ITX - LGA1700 sokkel - H610
Produkttype
Bundkort - mini ITX
Chipsættype
Intel H610
Processor-socket
1 x LGA1700 sokkel
Kompatible processorer
(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse
64 GB
RAM understøttet
2 DIMM slots - DDR5, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet
Lagringsporte
4 x SATA-600, 1 x M.2
USB / FireWire porte
2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
Gigabit Ethernet
Generelt
Produkttype
Bundkort - mini ITX
Chipsættype
Intel H610
Processor-socket
LGA1700 sokkel
Max antal processorer
1
Kompatible processorer
(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Understøttet RAM
Maks. størrelse
64 GB
Teknologi
DDR5
Bus Clock
4400 MHz, 4800 MHz, 5200 MHz, 5600 MHz
Understøttet RAM-integritetskon
Ikke-ECC, ECC (drift i ikke-ECC tilstand)
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP), understøttede ECC-moduler fungerer i ikke-ECC-tilstand
Audio
Type
HD Audio (8-kanaler)
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværks interfaces
Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU
2 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x M.2 socket (2280 M.2 Key M-åbning)
2 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x M.2 socket (2280 M.2 Key M-åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA
PCIe 3.0 -stikforbindelser: 1 x M.2
PCIe 3.0 -stikforbindelser: 1 x M.2
Interface
2 x DisplayPort
1 x HDMI
1 x VGA
4 x USB 2.0
2 x USB 3.2 Gen 1
1 x audio linje-ud - mini-jack
1 x audio linje-ind - mini-jack
1 x mikrofon - mini-jack
1 x LAN (Gigabit Ethernet)
1 x PS/2-tastatur/mus
1 x HDMI
1 x VGA
4 x USB 2.0
2 x USB 3.2 Gen 1
1 x audio linje-ud - mini-jack
1 x audio linje-ind - mini-jack
1 x mikrofon - mini-jack
1 x LAN (Gigabit Ethernet)
1 x PS/2-tastatur/mus
Interne interfaces
2 x USB 2.0 - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x seriel - intern stik
1 x audio - intern stik
1 x SPI - intern stik
1 x højttaler - intern stik
2 x USB 3.2 Gen 1 - intern stik
1 x seriel - intern stik
1 x audio - intern stik
1 x SPI - intern stik
1 x højttaler - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 4-pin ATX12V konnektor
Egenskaber
BIOS-type (Basic Input/Output System)
AMI
BIOS-egenskaber
WfM 2.0 understøttet, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
Hardwareovervågning
CPU kernetemperatur, chassis temperatur, takometer til CPU-blæser, takometer til chassis-blæser, systemspænding, Beskyttelse mod CPU overophedning, CPU kerne-spænding, blæserfejlvarsel
Hardware egenskaber
HDCP kompatibel, Game Boost, On/Off Charge, RGB FUSION 2.0, Q-Flash, 4+1+1 Phase Power Design, Audio Noise Guard, GIGABYTE Smart Fan 6, Anti-Sulfur Design, Dr.MOS MOSFET, Solid Pin Power Connectors
Diverse
Med software
GIGABYTE App Center, @BIOS, EasyTune, GIGABYTE Fast Boot, Xpress Install, GIGABYTE Smart Backup, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control
Bredde
17 cm
Dybde
17 cm
