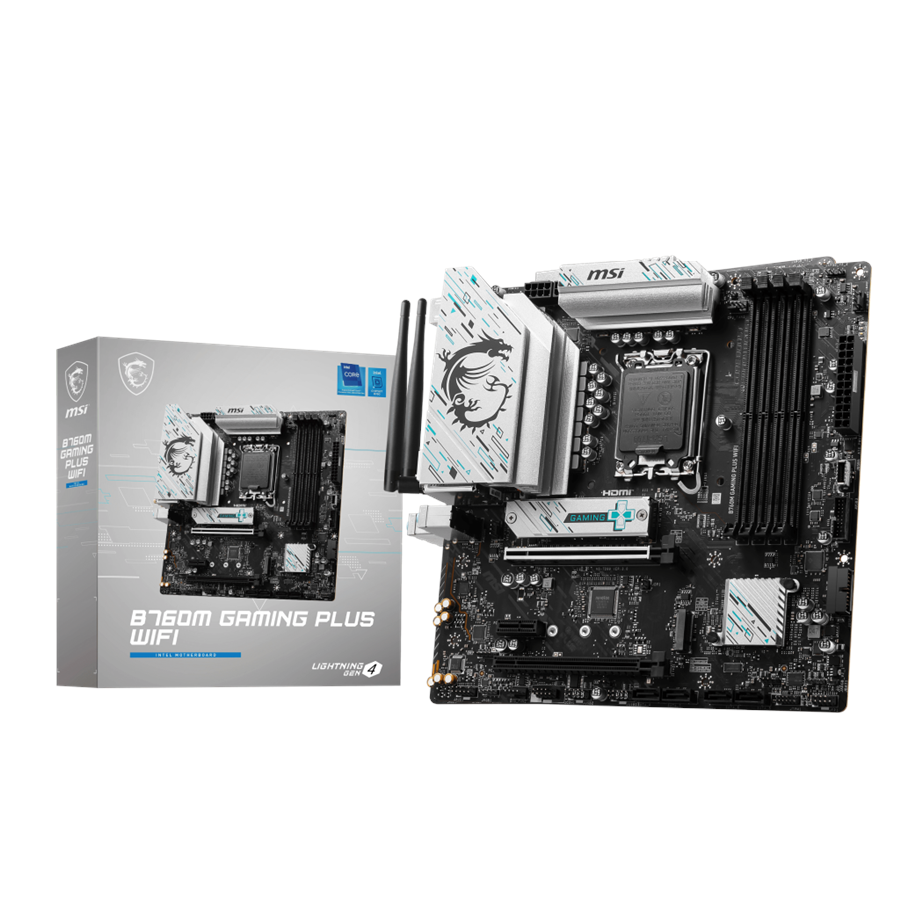

MSI B760M GAMING PLUS WIFI Bundkort - Intel B760 - Intel LGA1700 socket - DDR5 RAM - Micro-ATX
Bundkort, størrelse: Micro-ATX, Intel LGA1700 socket, Intel B760 chipset, 1 x PCI-Express 4.0 x16, Dual DDR5-5600 4 x DIMM slots (Intel XMP support), lagrings tilslutninger: 4 x SATA-600 / 2 x M.2 NVMe PCI-Express 4.0 (M.2 size: 2242 / 2260 / 2280), USB 3.2 Gen 2 type A & C, skærm tilslutning: 1 x Displayport 1.4 / 1 x HDMI 2.1, Realtek 8125BG 2.5 Gigabit netværk (LAN), Intel WiFi 6E & Bluetooth 5.3, Intel Xe Graphics supporteret (CPU med VGA påkrævet), Realtek ALC897 HD Audio (8-kanaler) lydkort, MSI Mystic Light software
1.550,00 kr.
1.240,00 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Fjernlager, 5-6 dages levering
The MSI B760M GAMING PLUS WIFI motherboard is designed to cater to the needs of gamers and PC enthusiasts seeking high performance, reliability, and features. With support for DDR5 memory technology, users can experience fast data processing speeds, making this motherboard suitable for gaming, content creation, and multitasking. The inclusion of Bluetooth 5.3 and Wi-Fi 6E ensures that users have access to fast wireless connectivity options available, perfect for online gaming and quick file transfers.To meet the demands of high-performance components, the MSI B760M GAMING PLUS WIFI features a robust 12+1+1 Phase Power Design, providing precise power delivery and enhancing system stability. The motherboard's cooling solutions, including an Extended Heatsink Design and M.2 Shield FROZR, are meticulously crafted to keep temperatures in check, ensuring that performance remains consistent during intense gaming sessions. Additionally, the onboard MSI Audio Boost technology and high definition audio codec offer an immersive sound experience, elevating the overall gaming and multimedia experience.
Producent
Varenummer
3237787
Model
B760M GAMING PLUS WIFI
Ean
4711377154017
Til producentens hjemmeside
Produktbeskrivelse
MSI B760M GAMING PLUS WIFI - bundkort - micro ATX - LGA1700 sokkel - B760
Produkttype
Bundkort - micro ATX
Chipsættype
Intel B760
Processor-socket
1 x LGA1700 sokkel
Kompatible processorer
(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Max RAM-størrelse
192 GB
RAM understøttet
4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte
2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Generelt
Produkttype
Bundkort - micro ATX
Chipsættype
Intel B760
Processor-socket
LGA1700 sokkel
Max antal processorer
1
Kompatible processorer
(understøtter 12./13. og 14. Generation Intel Core / Pentium Gold / Celeron)
Understøttet RAM
Maks. størrelse
192 GB
Teknologi
DDR5
Bus Clock
6800 MHz (O.C.), 6600 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz, 5400 MHz, 5200 MHz, 5000 MHz, 4800 MHz
Understøttet RAM-integritetskon
Ikke-ECC
Registreret eller buffer
Ikke bufferet
Egenskaber
Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC897
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværk controller
Realtek RTL8125BG
Netværks interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU
4 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
1 x PCIe 4.0 x4
2 x M.2 socket (2242/2260/2280 M.2 Key M åbning)
4 x DIMM 288-pins
1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
1 x PCIe 4.0 x4
2 x M.2 socket (2242/2260/2280 M.2 Key M åbning)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -stikforbindelser: 1 x M.2
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2
PCIe 4.0 -stikforbindelser: 1 x M.2
SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2
Interface
1 x HDMI
1 x DisplayPort
2 x USB 2.0
2 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2
1 x LAN (2.5Gigabit Ethernet)
2 x antenne
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x audio linje-ud - mini-jack
PS/2-tastatur/mus
1 x DisplayPort
2 x USB 2.0
2 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2
1 x LAN (2.5Gigabit Ethernet)
2 x antenne
1 x audio linje-ud - mini-jack
1 x mikrofon - mini-jack
1 x audio linje-ud - mini-jack
PS/2-tastatur/mus
Interne interfaces
4 x USB 2.0 - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x USB-C 3.2 Gen 1 - intern stik
1 x audio - intern stik
1 x seriel - intern stik
1 x SPI - intern stik
4 x USB 3.2 Gen 1 - intern stik
1 x USB-C 3.2 Gen 1 - intern stik
1 x audio - intern stik
1 x seriel - intern stik
1 x SPI - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor
Egenskaber
BIOS-egenskaber
MSI ClickBIOS 5, M-Flash
Hardware egenskaber
MSI Core Boost, 12+1+1 Phase Power Design, MSI Steel Armor, Extended Heatsink Design, M.2 Shield FROZR, DIY Friendly Design, præmonteret I/O-skjold, overstrømsbeskyttelse, MSI Audio Boost, MSI Mystic Light, 6 Layer PCB, 2oz Copper PCB, Surface Mount Technology (SMT), MSI Memory Boost
