Varenummer: 2436436

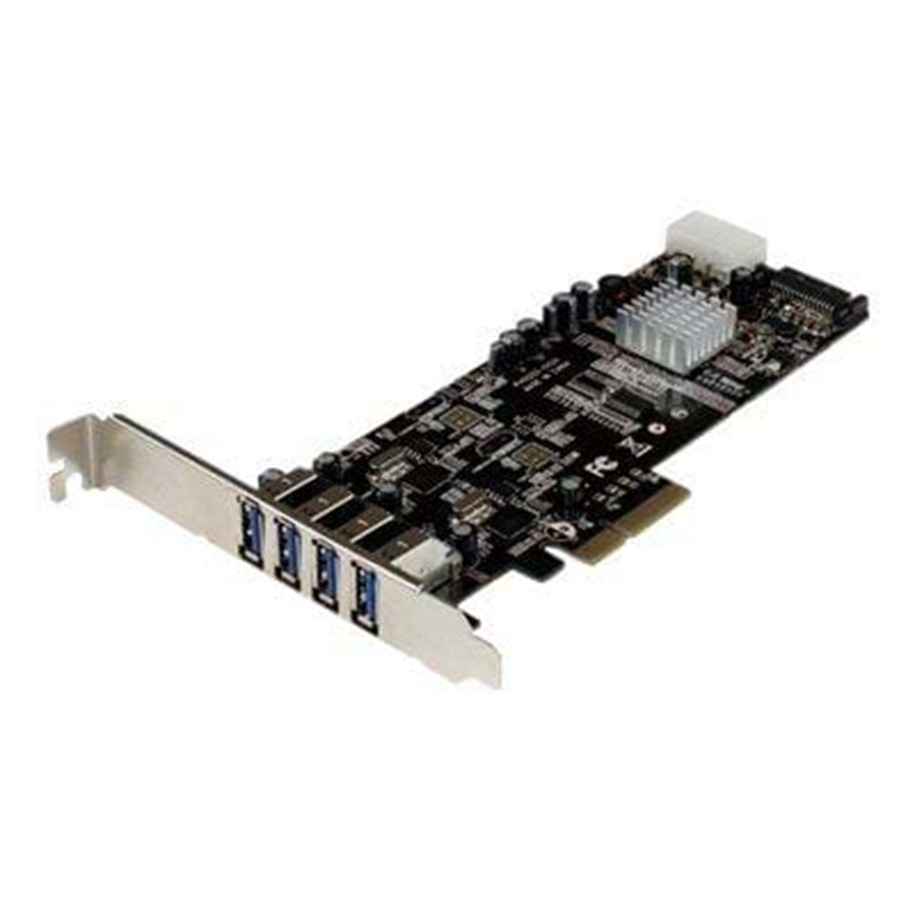

StarTech.com 4 Port Dual Bus PCI Express PCIe USB 3.0 Card w/ UASP & Power

USB-adapter, PCIe, USB 3.0 x 4

546,00 kr. 436,80 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Bestillingsvare, 10-11 dages levering

Add 4 SuperSpeed USB 3.0 ports with Dual Bus architecture (5Gbps per 2 ports) to your PCI Express-enabled PC. The PEXUSB3S42V 4-Port Dual Bus PCI Express USB 3.0 Card lets you add four dual bus USB 3.0 ports to your PCIe x4-enabled PC. Dual bus architecture improves USB 3.0 performance by transferring data on independent channels to your computer, giving you faster file transfers.When multiple devices are connected, traditional single bus USB 3.0 cards share your maximum bandwidth between all ports. By employing a second host controller chipset, the dual bus transmission channel is shared across two ports rather than four. Allocating up to 5 Gbps for each set of two ports reduces performance bottlenecks, and effectively doubles your total available to bandwidth to 10 Gbps.Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a

Producent
Varenummer
2436436
Model
PEXUSB3S42V
Ean
0065030854597
Til producentens hjemmeside
Produktbeskrivelse
Startech 4-Port USB 3.0 PCI Express Card Adapter - PCIe SuperSpeed USB 3.0 Expansion Card w/ 2 Dedicated 5Gbps Channels (PEXUSB3S42V) - USB-adapter - PCIe x4 - USB 3.0 x 4
Enhedstype
USB-adapter
Model
Indstikskort
Grænseflade (bus) type
PCI Express x4
Porte
USB 3.0 x 4
Dimensioner (B x D x H)
6.7 cm x 12.1 cm x 1.9 cm
Vægt
90 g
Dataforbindelsesprotokol
USB, USB 2.0, USB 3.0
Dataoverførselshastighed
5 Gbps
Processor
NEC uPD720202
Overensstemmelsesstandarder
USB 1.1, USB 2.0, USB 3.0
Systemkrav
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Linux Kernel 2.6.31 eller nyere, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bit), Windows 8.1 (32/64 bit)
Designet for
P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, ST103008U2C, ST4300U3C3, ST53004U1C, ST93007U2C, UNI251BMU33, USB3S2ESATA3

Generelt

Enhedstype
USB-adapter
Model
Indstikskort
Grænseflade (bus) type
PCI Express x4

Netværk

Porte
USB 3.0 x 4
Forbindelsesteknologi
Kablet
Dataforbindelsesprotokol
USB, USB 2.0, SuperSpeed USB 3.0
Dataoverførselshastighed
5 Gbps
Overensstemmelsesstandarder
USB 1.1, USB 2.0, USB 3.0

Processor / Hukommelse

Processor
NEC uPD720202

Ekspansion / Konnektivitet

Interface
4 x USB 3.0 - 9 pin USB Type A (ekstern)

Diverse

Udstyr inkluderet
Simpelt beslag
Overensstemmelsesstandarder
FCC, RoHS

Programmer / Systemkrav

Med software
Drivers & Utilities
OS nødvendig
Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Linux Kernel 2.6.31 eller nyere, Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2003 (32/64-bits), Windows 8 (32/64 bit), Windows 8.1 (32/64 bit)

Mål og vægt

Bredde
6.7 cm
Dybde
12.1 cm
Højde
1.9 cm
Vægt
90 g

Miljømæssige parametre

Min. driftstemperatur
0 °C
Maks. driftstemperatur
50 °C
Fugtighedsgrad ved brug
5 - 85%

Oplysninger om kompatibilitet

Designet for
P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, ST103008U2C, ST4300U3C3, ST53004U1C, ST93007U2C, UNI251BMU33, USB3S2ESATA3
