Varenummer: 2386023

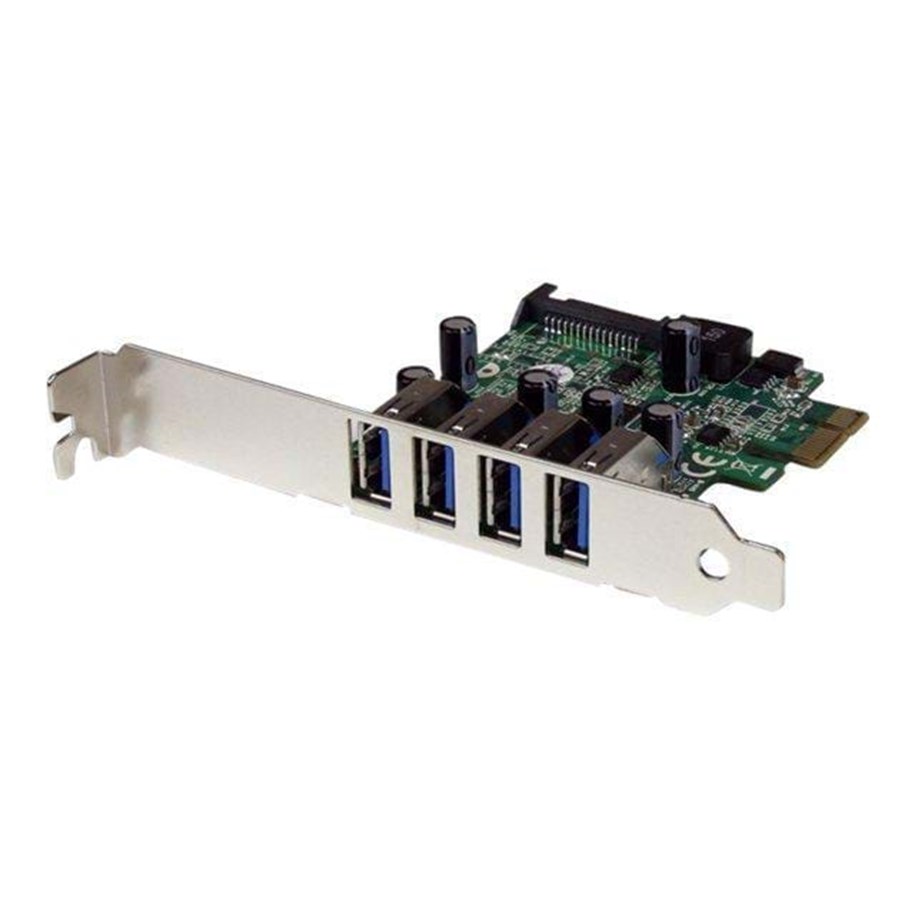

StarTech.com 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with SATA Power

Low Profile, USB-adapter, PCIe, USB, Hi-Speed USB, SuperSpeed USB 3.0, 4 porte

387,00 kr. 309,60 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Fjernlager, 3 dages levering

Add 4 external USB 3.0 ports to a low profile or standard computer, through PCI Express. The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system. SuperSpeed USB 3.0 provides up to 5 Gbps of data bandwidth, while remaining backward compatible with existing USB 2.0 devices at 480Mbps.Using a "stacked" port layout that places the ports one on top of the other, more ports are able to fit into a smaller space. This 4-port PCIe USB 3.0 adapter enables all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system.Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.

Producent
Varenummer
2386023
Model
PEXUSB3S4V
Ean
0065030848961
Til producentens hjemmeside
Produktbeskrivelse
Startech 4-Port PCI Express SuperSpeed USB 3.0 Controller Card with UASP - USB 3.0 Expansion Card with SATA Power (PEXUSB3S4V) - USB-adapter - PCI Express x1 - USB 3.0 x 4
Enhedstype
USB-adapter
Model
Indstikskort
Grænseflade (bus) type
PCI Express x1
Porte
USB 3.0 x 4
Dimensioner (B x D x H)
1.9 cm x 7.5 cm x 6.8 cm
Vægt
45 g
Dataforbindelsesprotokol
USB, USB 2.0, USB 3.0
Dataoverførselshastighed
5 Gbps
Processor
NEC uPD720201
Overensstemmelsesstandarder
USB 1.1, USB 2.0, USB 3.0
Systemkrav
Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019
Designet for
P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, CFASTRWU3, HBS304A24A, S251SMU33EP, S3520BU33ER, SDOCK2ERU33, SDOCK2U313R, SDOCK2U33, SDOCK2U33EB, SDOCK2U33RE, SDOCK2U33V, SDOCK4U33, SDOCKU33BV, SDOCKU33EBV, UNI251BMU33, USB3S2ESATA3, USB3S2SAT3CB

Generelt

Enhedstype
USB-adapter
Model
Indstikskort
Grænseflade (bus) type
PCI Express x1

Netværk

Porte
USB 3.0 x 4
Forbindelsesteknologi
Kablet
Dataforbindelsesprotokol
USB, USB 2.0, SuperSpeed USB 3.0
Dataoverførselshastighed
5 Gbps
Overensstemmelsesstandarder
USB 1.1, USB 2.0, USB 3.0

Processor / Hukommelse

Processor
NEC uPD720201

Ekspansion / Konnektivitet

Interface
4 x USB 3.0 - 9 pin USB Type A (ekstern)
Kompatible åbninger
1 x PCI Express x1

Diverse

Udstyr inkluderet
Simpelt beslag
Overensstemmelsesstandarder
FCC, RoHS

Programmer / Systemkrav

Med software
Drivers & Utilities
OS nødvendig
Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019

Mål og vægt

Bredde
1.9 cm
Dybde
7.5 cm
Højde
6.8 cm
Vægt
45 g

Miljømæssige parametre

Min. driftstemperatur
5 °C
Maks. driftstemperatur
50 °C
Fugtighedsgrad ved brug
20 - 80%

Oplysninger om kompatibilitet

Designet for
P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, CFASTRWU3, HBS304A24A, S251SMU33EP, S3510BMU33, S3510SMU33, S3520BU33ER, SATDOCK2REU3, SDOCK2ERU33, SDOCK2U313R, SDOCK2U33, SDOCK2U33EB, SDOCK2U33RE, SDOCK2U33V, SDOCK4U33, SDOCKU33BV, SDOCKU33EBV, UNI251BMU33, USB221SS, USB3S2ESATA3, USB3S2SAT3CB
