Varenummer: 2436547

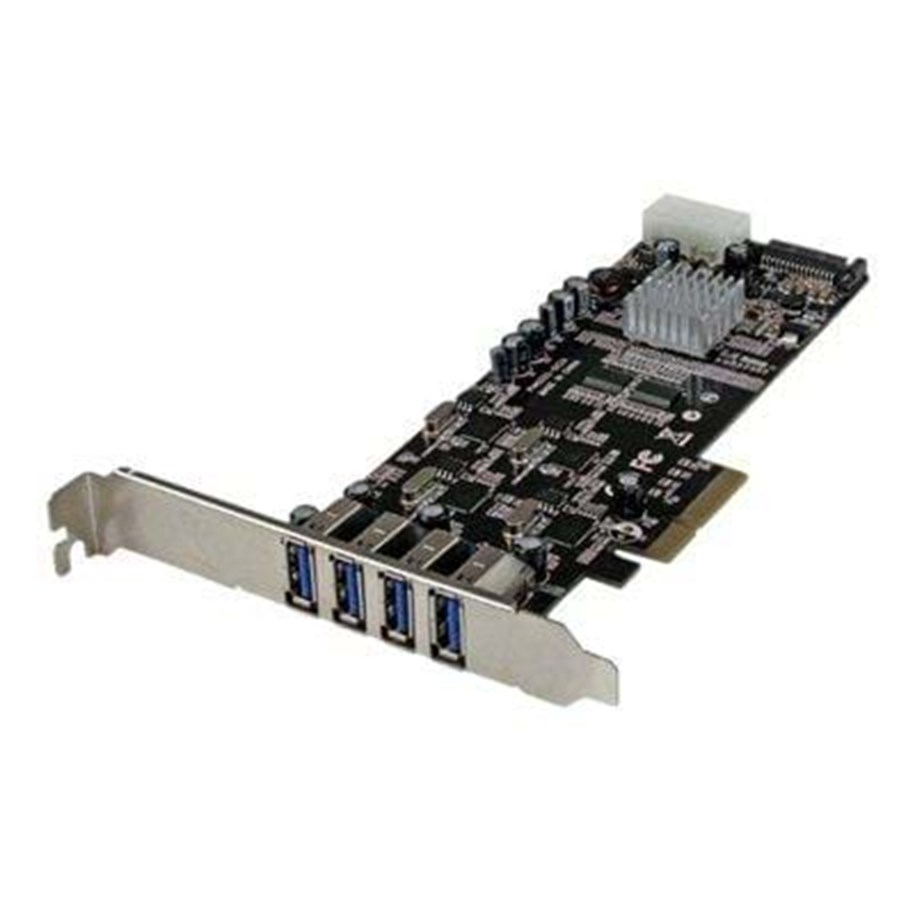

StarTech.com 4 Port Quad Bus PCI Express PCIe USB 3.0 Card w/ UASP & Power

USB-adapter, PCI Express x4, USB 3.0 x 4

886,00 kr. 708,80 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Fjernlager, 3 dages levering

Add 4 SuperSpeed USB 3.0 ports with Quad Bus architecture (5Gbps per port) to your PCI Express-enabled PC. The PEXUSB3S44V 4-Port PCI Express USB 3.0 Card lets you add four quad bus USB 3.0 ports to your PCIe x4-enabled PC. Quad bus architecture improves USB 3.0 performance by transferring data on independent channels to your computer, giving you faster file transfers.When multiple devices are connected, traditional single bus USB 3.0 cards share your maximum bandwidth between all ports. By employing four host controller chipsets, each port operates on a separate independent transmission channel. Allocating up to 5 Gbps to each USB port reduces performance bottlenecks, and effectively quadruples your total available to bandwidth to 20 Gbps.Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the

Producent
Varenummer
2436547
Model
PEXUSB3S44V
Ean
0065030854627
Til producentens hjemmeside
Produktbeskrivelse
Startech 4 Port USB 3.0 PCIe Card w/ 4 Dedicated Channels - UASP - USB 3.0 PCI Express Card Adapter - USB-adapter - PCIe x4 - USB 3.0 x 4
Enhedstype
USB-adapter
Model
Indstikskort
Grænseflade (bus) type
PCI Express x4
Porte
USB 3.0 x 4
Dimensioner (B x D x H)
6.7 cm x 12.1 cm x 1.9 cm
Vægt
90 g
Dataforbindelsesprotokol
USB, USB 2.0, USB 3.0
Dataoverførselshastighed
5 Gbps
Processor
4 x NEC uPD720202
Overensstemmelsesstandarder
USB 1.1, USB 2.0, USB 3.0
Systemkrav
Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, kun Linux 2.6.31 - 4.11.x LTS versioner
Designet for
P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, CFASTRWU3, ST103008U2C, ST1030USBM, ST3300GU3B, ST4300U3C3, ST53004U1C, ST7300U3M, ST7300USBME, ST93007U2C, UNI251BMU33, USB3S2ESATA3

Generelt

Enhedstype
USB-adapter
Model
Indstikskort
Grænseflade (bus) type
PCI Express x4

Netværk

Porte
USB 3.0 x 4
Forbindelsesteknologi
Kablet
Dataforbindelsesprotokol
USB, USB 2.0, SuperSpeed USB 3.0
Dataoverførselshastighed
5 Gbps
Overensstemmelsesstandarder
USB 1.1, USB 2.0, USB 3.0

Processor / Hukommelse

Processor
4 x NEC uPD720202

Ekspansion / Konnektivitet

Interface
4 x USB 3.0 - 9 pin USB Type A (ekstern)

Diverse

Udstyr inkluderet
Simpelt beslag
Overensstemmelsesstandarder
FCC, RoHS

Programmer / Systemkrav

Med software
Drivers & Utilities
OS nødvendig
Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Vista / 7 / 8 / 8.1 / 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, kun Linux 2.6.31 - 4.11.x LTS versioner

Mål og vægt

Bredde
6.7 cm
Dybde
12.1 cm
Højde
1.9 cm
Vægt
90 g

Miljømæssige parametre

Min. driftstemperatur
0 °C
Maks. driftstemperatur
50 °C
Fugtighedsgrad ved brug
5 - 85%

Oplysninger om kompatibilitet

Designet for
P/N: BNDTB10GI, BNDTB1394B3, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142, CFASTRWU3, ST103008U2C, ST1030USBM, ST3300GU3B, ST4300U3C3, ST53004U1C, ST7300U3M, ST7300USBME, ST93007U2C, UNI251BMU33, USB3S2ESATA3
