Varenummer: 2932083

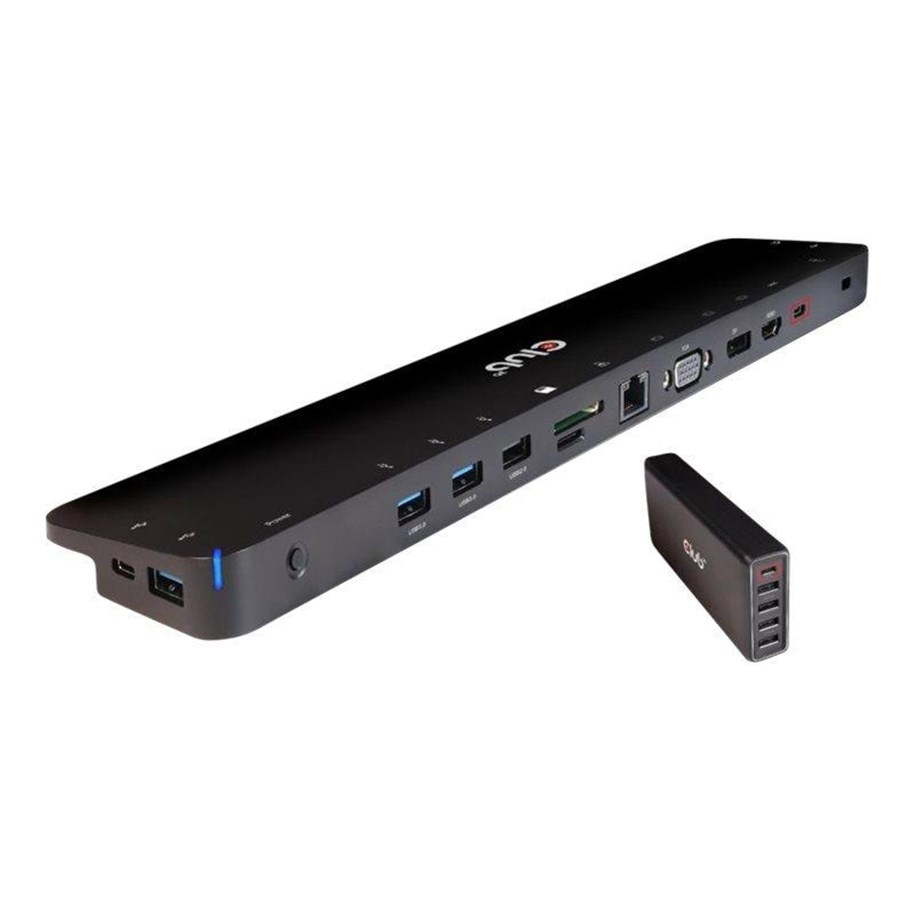

Club 3D USB Type C 3.2 Gen1 Triple Display Dynamic PD Charging Dock 100W PD Power charger
Dockingstation, USB-C 3.2 Gen 1, VGA, HDMI, DP, 1GbE, 100 Watt
1.091,00 kr.
872,80 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Fjernlager, 3 dages levering
This is an integrated solution combining video, data, power, Ethernet and audio especially for frequent travelers. The three different video ports (HDMI, DisplayPort, VGA) allow you to enjoy 3 different images or videos on 3 different displays simultaneously under MST mode.
The USB Type A ports and USB Type C data port allow you to connect multiple USB devices to the host. The USB Type C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD power adapter, no need to carry your notebooks power supply.
So in general the user is traveling lighter. The micro SD and SD/MMC ports allow you to read information in the memory card onto the host. The 3.5mm audio port allows enjoying music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host.
The USB Type A ports and USB Type C data port allow you to connect multiple USB devices to the host. The USB Type C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD power adapter, no need to carry your notebooks power supply.
So in general the user is traveling lighter. The micro SD and SD/MMC ports allow you to read information in the memory card onto the host. The 3.5mm audio port allows enjoying music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host.
Producent
Varenummer
2932083
Model
CSV-1564W100
Ean
8719214471866
Til producentens hjemmeside
Produktbeskrivelse
Club 3D - dockingstation - USB-C 3.2 Gen 1 - VGA, HDMI, DP - 1GbE
Produkttype
Dockingstation
Docking-interface
USB-C 3.2 Gen 1
Videointerfacer
VGA, HDMI, DP
Dimensioner (B x D x H)
35 cm x 7.5 cm x 2 cm
Netværk
Gigabit Ethernet
Effekt
Strømforsyningsadapter AC 100 - 240 V 100 Watt Strømforsyning
Generelt
Produkttype
Dockingstation
Bredde
35 cm
Dybde
7.5 cm
Højde
2 cm
Netværk
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, Gigabit Ethernet
Overensstemmelsesstandarder
IEEE 802.3
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 (total) / 1 (fri) x SD-hukommelseskort
1 (total) / 1 (fri) x microSD
1 (total) / 1 (fri) x microSD
Interface
2 x USB-C 3.2 Gen 1 - 24 pin USB-C
1 x USB-C 3.2 Gen 1 med Power Delivery 3.0 (100 W) - 24 pin USB-C
3 x SuperSpeed USB 3.0 - 9 pin USB Type A
2 x USB 2.0 - 4 pin USB Type A
1 x audio / video - HDMI - 19 pin HDMI Type A
1 x audio / video - DisplayPort - 20 pin DisplayPort
1 x skærm/video - VGA - 15 pin HD D-Sub (HD-15)
1 x netværk - 10Base-T/100Base-TX/1000Base-TX - RJ-45
1 x hovedtelefon/mikrofon-kombistik - mini-phone stereo 3.5 mm
1 x USB-C 3.2 Gen 1 med Power Delivery 3.0 (100 W) - 24 pin USB-C
3 x SuperSpeed USB 3.0 - 9 pin USB Type A
2 x USB 2.0 - 4 pin USB Type A
1 x audio / video - HDMI - 19 pin HDMI Type A
1 x audio / video - DisplayPort - 20 pin DisplayPort
1 x skærm/video - VGA - 15 pin HD D-Sub (HD-15)
1 x netværk - 10Base-T/100Base-TX/1000Base-TX - RJ-45
1 x hovedtelefon/mikrofon-kombistik - mini-phone stereo 3.5 mm
Diverse
Medfølgende ledninger
1 x USB-C kabel - ekstern - 27 cm
1 x USB-C kabel - ekstern - 1 m
1 x USB-C kabel - ekstern - 1 m
Inkluderet tilbehør
Club3D CAC-1903 strømforsyning
Egenskaber
Til/fra kontakt til strømadapter, 4K Ultra HD, DisplayPort Alt Mode
Overensstemmelsesstandarder
FCC, RoHS, EMI
Effekt
Strømenhed
Strømforsyningsadapter
Nødvendig spænding
AC 100 - 240 V
Strømforsyning
100 Watt
Systemkrav
OS nødvendig
Apple MacOS X, Windows 10
Mål & vægt (forsendelse)
Bredde ved forsendelse
36.7 cm
Dybde ved forsendelse
10.9 cm
Højde ved forsendelse
7.9 cm
Vægt ved forsendelse
239 g
