Varenummer: 3431798

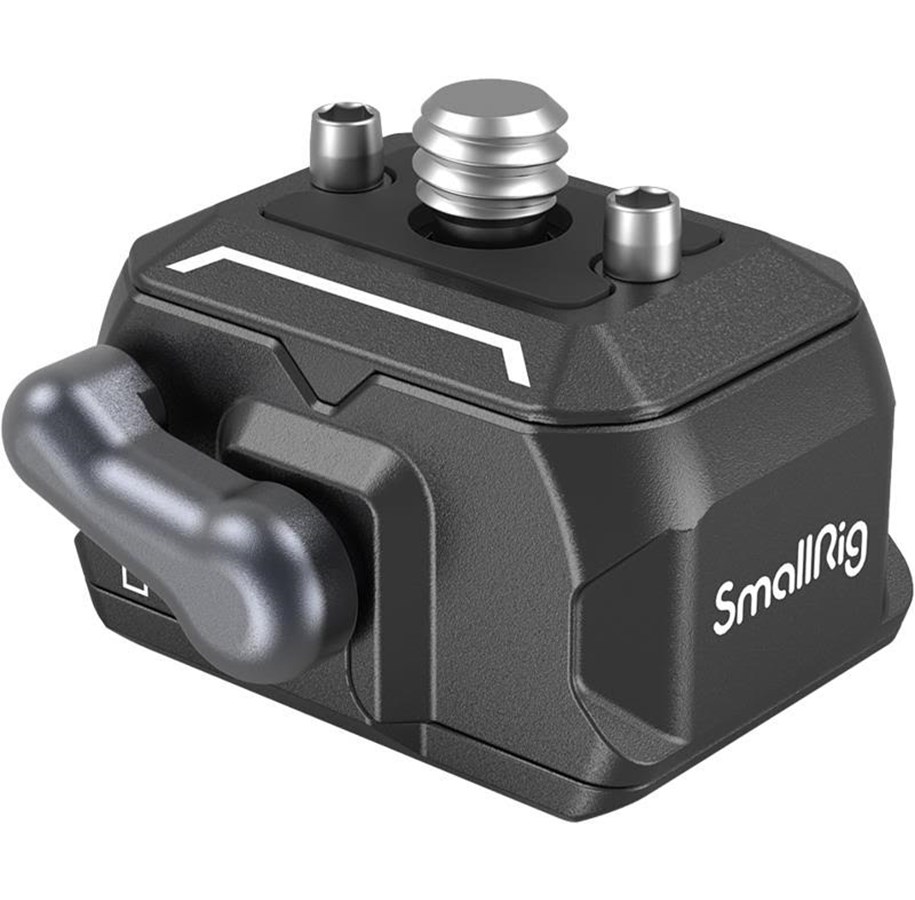

SmallRig 3513C camera mounting accessory

Quick release-klemme- og pladekit kombinerer en drop-in bundplade med en quick release-plade til hurtig, stabil montering af 1/4"-20 gevindudstyr.

SmallRig 3513 Drop-in HawkLock Universal Mini Quick Release Clamp & Plate understøtter kameraer, skærme, bure og monteringsplader og har 1/4"-20 gevindhuller i bunden til fastgørelse til tilbehør som bordstativer og kuglehoveder. Pladen låses lodret ned i bundpladen for at hjælpe med at forhindre bøjning, mens indbyggede gummipuder reducerer bevægelse og beskytter mod ridser.

Understøtter 1/4"-20 gevindudstyr
Nederste 1/4"-20 gevindhuller til montering med 1/4"-20 skruer
Lodret drop-in låsdesign for stabil forbindelse
Maksimal dynamisk belastningskapacitet: 5 kg
Indbyggede gummipuder for at forhindre bøjning og ridser
Inkluderer unbrakonøgle

Designet til hurtig låsning og oplåsning for at strømline rig-skift på tværs af flere optagescener.

Læs mere

Vis fulde specifikationer

259,00 kr. 207,20 kr. ekskl. moms

Billigste fragt (privatkunde) 33,00 kr.

Fjernlager, 4-5 dages levering

SmallRig Universal mini Quick Release Plate and Clamp 3513C comprises a quick release plate and a baseplate. The quick release plate supports devices with 1/4"-20 threads, such as cameras, monitors, cages, mounting plates, etc.; And the quick release plate is reserved for 2 optional dowel pins, which can be removed and installed as needed to effectively prevent the devices from deflection. Its 1/4"-20 threaded holes on the bottom allow attaching devices with 1/4"-20 screws, like tabletop tripods, ball heads, etc. It can buckle vertically and stably into the baseplate, causing not deflection. The whole kit, featuring a maximum dynamic load capacity of 5kg, is easy to lock and unlock for multiple shooting scenes. With built-in silicone pads on the top to prevent deflection and scratches.

Designers: Nico Robin, Mark Yan

Compatibility: Universal

Note:
1. In order to prevent accidental contact from causing unlocking, the structure of HawkLock Quick Release is designed to prevent accidental contact, and the wrench also has a certain free movement in the locked state. The situation mentioned above is not a quality problem without affecting normal use.
2. The dowel pins are only compatible with Atomos Ninja V, Ninja V +, Atomos Shinobi 7; The dowel pins need to be removed when using other brands of monitors.

Package Includes:
1 x Quick Release Clamp and Plate
2 x Allen Wrench

Producent

Varenummer

3431798

Model

3513C

6941590012834

Til producentens hjemmeside

Produkttype

System til hurtig udløsning

Produktfarve

Materiale

Aluminium, Rustfrit stål

Maksimal vægtkapacitet

Tilslutningsgevind

1/4-20"

Bredde

30 mm

Dybde

25,3 mm

Højde

27,6 mm

Antal produkter inkluderet

1 stk

Pakkebredde

65 mm

Pakkedybde

42 mm

Pakkehøjde

54 mm

Pakkevægt

Funktioner
