Varenummer: 2735126

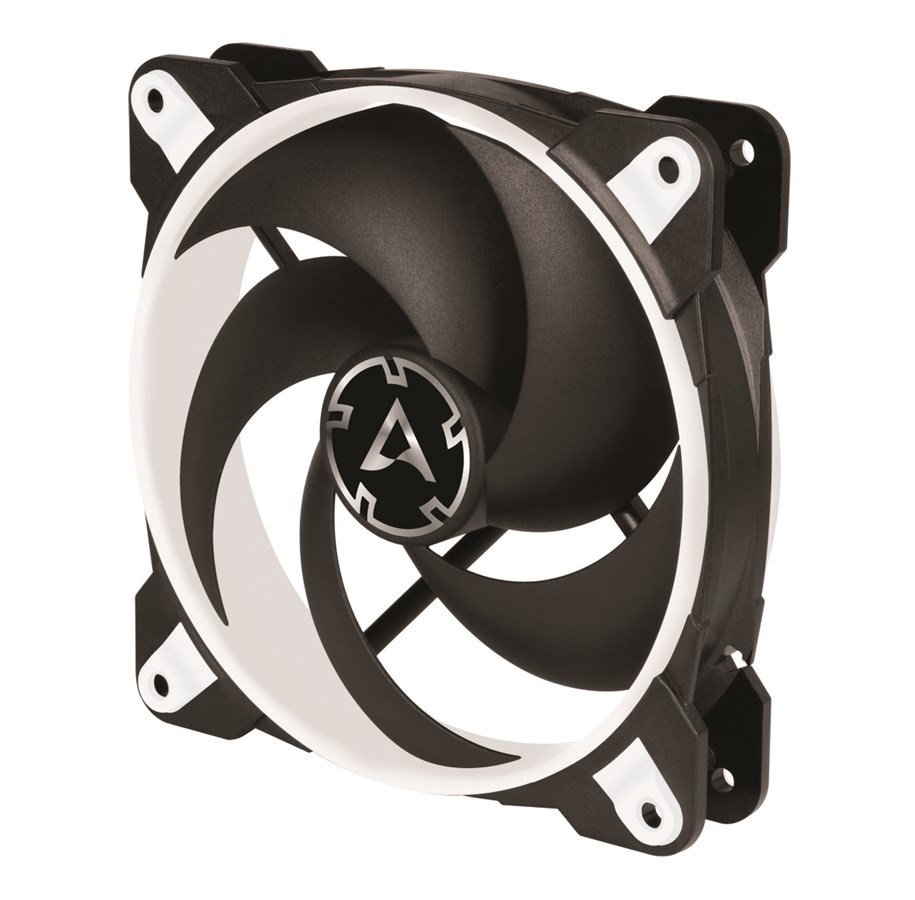

Arctic BioniX P120 - White/Black - Kabinet køler - 120mm - Sort - 24 dBA

Kabinet køler, 120mm x 120mm x 27mm (højde x bredde x dybde), støjniveau: max 0.45 sone (∼ 24 dBa), lufttryk max 67.56 CFM, max statisk luftryk 2.75 mmH2O, omdrejningshastighed: 200 - 2100 ±10% RPM, PWM kontrolleret, lejre type: Fluid Dynamic Bearing (FDB), bundkort tilslutning: 4-pins, farve: hvid / sort.

170,00 kr. 136,00 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Bestillingsvare, 7-8 dages levering

Optimised for Static Pressure
During the development of the new BioniX P120, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P120 is particularly suitable for use on heatsinks and radiators. 10° C lower motor temperature doubles the life span. The BioniX gaming fans have a four times longer service life through low coil temperature. Therefore, we extend the warranty to 10 years.

Strong Cooling Performance
Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.

More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new BioniX P120 to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span
A 10° C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.

High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Producent
Varenummer
2735126
Model
ACFAN00116A
Ean
4895213701297
Til producentens hjemmeside
Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
12 cm
Understøttede procesorsokler
Ikke understøttet
Kompatibel processor serie
Ikke understøttet
Omdrejningshastighed (min.)
200 rpm
Omdrejningshastighed (maks.)
2100 rpm
Støjniveau (høj hastighed)
25,5 dB
Støjniveau
0,45 blæser
Maksimal luftstrøm
67,56 kubikfod/min.
Luftstrøm
114,79 m³/t
Understøttelse af puls-bredde modulering (PWM)
Ja
Lejetype
Fluid Dynamic Bearing (FDB)
Produktfarve
Sort, Hvid
Antal blæsere
1 blæser(e)
Antal ventilatorblade
5
Ventilatorstik
4-pin + 4-pin
Strømforbrug (typisk)
1,56 W
Spænding
12 V
Nominel strøm
0,13 A
Bredde
120 mm
Dybde
120 mm
Højde
27 mm
Vægt
140 g
Kabellængde
0,4 m
Pakkebredde
130 mm
Pakkedybde
125 mm
Pakkehøjde
34 mm
Pakkevægt
175 g
Compliance-certifikater
RoHS
Pakketype
Kasse
Skruer inkluderet
Ja
Antal skruer
4
Monteringshul mønster (BxD)
105 x 105 mm
Oprindelsesland
Kina
Harmoniseret systemkode (HS)
84733080

Præstation

Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
12 cm
Understøttede procesorsokler
Ikke understøttet
Kompatibel processor serie
Ikke understøttet
Omdrejningshastighed (min.)
200 rpm
Omdrejningshastighed (maks.)
2100 rpm
Støjniveau (høj hastighed)
25,5 dB
Støjniveau
0,45 blæser
Maksimal luftstrøm
67,56 kubikfod/min.
Luftstrøm
114,79 m³/t
Understøttelse af puls-bredde modulering (PWM)
Ja
Lejetype
Fluid Dynamic Bearing (FDB)

Design

Produktfarve
Sort, Hvid
Antal blæsere
1 blæser(e)
Antal ventilatorblade
5
Ventilatorstik
4-pin + 4-pin

Strømstyring

Strømforbrug (typisk)
1,56 W
Spænding
12 V
Nominel strøm
0,13 A

Vægt & størrelser

Bredde
120 mm
Dybde
120 mm
Højde
27 mm
Vægt
140 g
Kabellængde
0,4 m
Pakkebredde
130 mm
Pakkedybde
125 mm
Pakkehøjde
34 mm
Pakkevægt
175 g

Tekniske detaljer

Compliance-certifikater
RoHS

Emballage indhold

Pakketype
Kasse
Skruer inkluderet
Ja
Antal skruer
4

Andre funktioner

Monteringshul mønster (BxD)
105 x 105 mm
Oprindelsesland
Kina

Logistik data

Harmoniseret systemkode (HS)
84733080
