Varenummer: 2662218

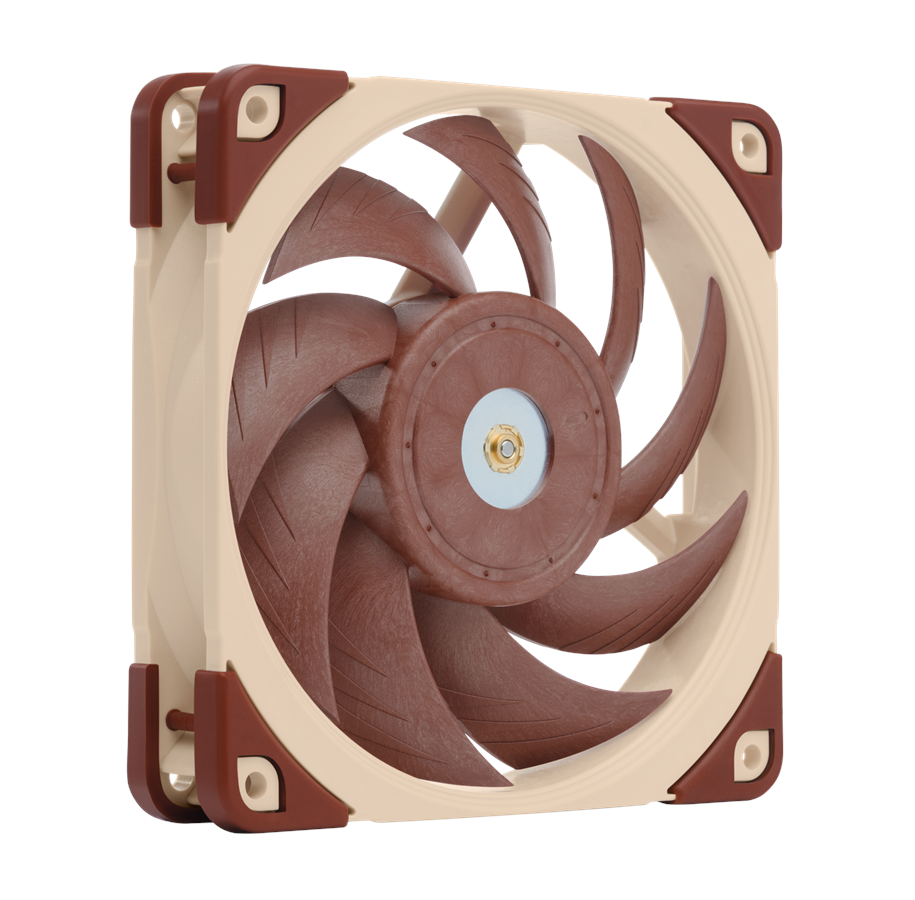

Noctua NF-A12x25 FLX - Kabinet køler - 120mm - Brun - 22 dBA

Kabinet køler, størrelse: 120mm x 120mm x 25mm (HxBxD), støjniveau: 18.8 - 22.06 dBA, Air flow: max 60.1 CFM, blæser RPM: 1350 - 2000 ±10%, 3 pins bundkort og 4 pins bundkort tilslutning, brun

233,00 kr. 186,40 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Bestillingsvare, 13-14 dages levering

The NF-A12x25 is a highly optimized next-generation 120mm fan that integrates Noctua's latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimization) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Following the approach of Noctua's A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether it's in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 3-pin FLX version provides 2000/1700/1350rpm speed settings via the supplied Low-Noise Adaptors so as to give full flexibility in configuring the fan for maximum cooling capacity or near-silent acoustics. Topped off with exceptional running smoothness, Noctua's reference-class SSO2 bearing, a rich bundle of accessories, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.

Producent
Varenummer
2662218
Model
NF-A12x25 FLX
Ean
9010018100389
Til producentens hjemmeside
Passende til rumtype
Universel
Type
Ventilator
Ventilator diameter
12 cm
Understøttede procesorsokler
Ikke understøttet
Kompatibel processor serie
Ikke understøttet
Antal hastigheder
3
Omdrejningshastighed (min.)
1350 rpm
Omdrejningshastighed (maks.)
2000 rpm
Støjniveau (lav hastighed)
14,2 dB
Støjniveau (høj hastighed)
22,6 dB
Luftstrøm
102,1 m³/t
Minimum lufttryk
64,5 mmH2O
Maksimalt lufttryk
2,34 mmH2O
Lejetype
Self-Stabilising Oil-pressure (SSO) bearing
Antal pr. pakke
1 stk
Gennemsnitstid mellem fejl (MTBF)
150000 t
Produktfarve
Beige, Brun
Materiale
Liquid Crystal Polymer (LCP)
Antal blæsere
1 blæser(e)
Antal ventilatorblade
9
Ventilatorstik
3-stikben
Nominel spænding
12 V
Strøm (maks.)
0,14 A
Ventilator dimensioner (BxDxH)
120 x 120 x 25 mm
Kabler inkluderet
Ventilator
Skruer inkluderet
Ja
Harmoniseret systemkode (HS)
84733080

Præstation

Passende til rumtype
Universel
Type
Ventilator
Ventilator diameter
12 cm
Understøttede procesorsokler
Ikke understøttet
Kompatibel processor serie
Ikke understøttet
Antal hastigheder
3
Omdrejningshastighed (min.)
1350 rpm
Omdrejningshastighed (maks.)
2000 rpm
Støjniveau (lav hastighed)
14,2 dB
Støjniveau (høj hastighed)
22,6 dB
Luftstrøm
102,1 m³/t
Minimum lufttryk
64,5 mmH2O
Maksimalt lufttryk
2,34 mmH2O
Lejetype
Self-Stabilising Oil-pressure (SSO) bearing
Antal pr. pakke
1 stk
Gennemsnitstid mellem fejl (MTBF)
150000 t

Design

Produktfarve
Beige, Brun
Materiale
Liquid Crystal Polymer (LCP)
Antal blæsere
1 blæser(e)
Antal ventilatorblade
9
Ventilatorstik
3-stikben

Strømstyring

Nominel spænding
12 V
Strøm (maks.)
0,14 A

Vægt & størrelser

Ventilator dimensioner (BxDxH)
120 x 120 x 25 mm

Emballage indhold

Kabler inkluderet
Ventilator
Skruer inkluderet
Ja

Logistik data

Harmoniseret systemkode (HS)
84733080
