Varenummer: 2674887

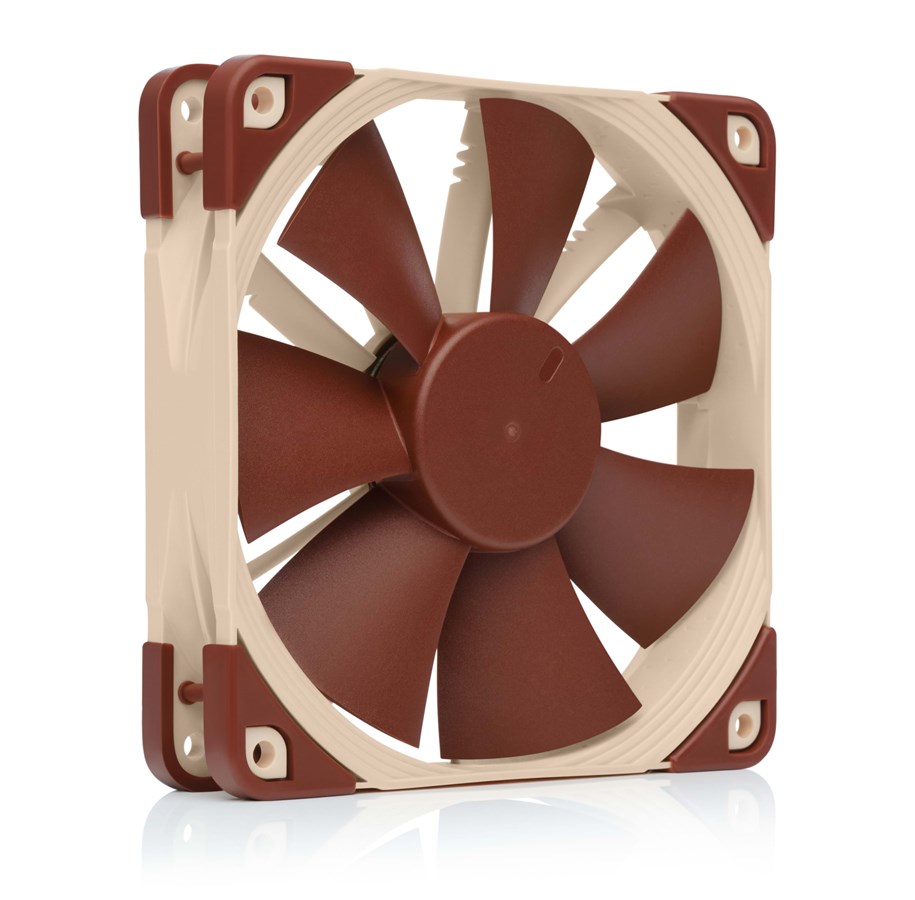

Noctua NF-F12 5V PWM - Kabinet køler - 120mm - Brun - 22 dBA
Kabinet køler, størrelse: 120mm x 120mm x 25mm (HxBxD), støjniveau: max 22.4 dBA, Air flow: max 55 CFM, blæser RPM: 300 - 1500 ±10%, PWM kontrolleret, 4 pins bundkort tilslutning, 5 volt, brun
189,00 kr.
151,20 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Bestillingsvare, 12-13 dages levering
Award-winning NF-F12 designHaving received more than 100 awards and recommendations from the international press, Noctua's NF-F12 has become a proven premium choice for 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world. |
5V PWM version5V fans are used in various devices and applications. With the included USB power adaptor cable and OmniJoin™ adaptor set, the NF-F12 5V PWM is a proven premium solution that gives you full flexibility both for replacing existing 5V fans and for new, custom applications. |
Focused Flow™ frameDesigned for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds. |
Varying Angular Distance and Vortex Control NotchesThe NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear. |
Heptaperf™ ImpellerCustom designed for the new Focused Flow™ frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf™ impeller has been carefully optimised to achieve a perfect balance between power and quietness. |
AAO frameNoctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency. |
Stepped Inlet DesignNoctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments. |
Inner Surface MicrostructuresWith the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency. |
Integrated anti-vibration padsIntegrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems. |
Custom-designed PWM IC with SCDSupporting fully automatic PWM speed control, the NF-F12 5V PWM uses Noctua's novel, custom-designed NE-FD3 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds. |
Polarity protectionAs many devices using 5V fans feature proprietary connectors, and documentation of the pin alignment may not be available, the fan features an integrated diode for polarity protection. This way, you're on the safe side if you accidentally connect it with reverse polarity. |
SSO2 BearingThe NF-F12 is the first fan to feature the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. |
Metal bearing shellIn order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-F12 sports a CNC milled bearing shell made entirely from brass. |
OmniJoin™ Adaptor SetMany devices featuring 5V fans use proprietary fan headers, so the NF-F12 5V PWM comes with Noctua’s OmniJoin adaptor set. Just cut the original fan’s cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-F12 5V PWM to proprietary fan headers! |
USB power adaptor cableThe fan includes a USB power adaptor cable that allows it to run on power banks, devices with USB host ports or USB power supplies such as those used for smartphones, giving you near endless possibilities for using the fan in your home, in your car or wherever a need for cooling occurs! |
Extensive cabling optionsThe fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved. |
6-year manufacturer’s warrantyNoctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-F12 features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty. |
Producent
Varenummer
2674887
Model
NF-F12 5V PWM
Ean
9010018100273
Til producentens hjemmeside
Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
12 cm
Understøttede procesorsokler
Ikke understøttet
Kompatibel processor serie
Ikke understøttet
Omdrejningshastighed (min.)
300 rpm
Omdrejningshastighed (maks.)
1500 rpm
Støjniveau (høj hastighed)
22,4 dB
Luftstrøm
93,4 m³/t
Maksimalt lufttryk
2,61 mmH2O
Understøttelse af puls-bredde modulering (PWM)
Ja
Lejetype
Self-Stabilising Oil-pressure Bearing (SSO)
Produktfarve
Beige, Brun
Antal blæsere
1 blæser(e)
Antal ventilatorblade
7
Ventilatorstik
4-polet
Certificering
CE
Strømforsyning
0,75 W
Spænding
5 V
Strøm (maks.)
0,15 A
Bredde
120 mm
Dybde
25 mm
Højde
120 mm
Kabellængde
0,3 m
Pakkebredde
150 mm
Pakkedybde
34 mm
Pakkehøjde
210 mm
Pakkevægt
330 g
Compliance-certifikater
RoHS
Skruer inkluderet
Ja
Anti-vibrationssystem
Ja
Middeltid til fejl (MTTF)
150000 t
Harmoniseret systemkode (HS)
84733080
Hovedkassens bredde (udvendigt)
350 mm
Hovedkassens længde (udvendigt)
360 mm
Hovedkassen højde (udvendigt)
380 mm
Hovedkassens bruttovægt (udvendigt)
13,1 kg
Produkter pr. hovedkasse (udvendigt)
36 stk
Præstation
Passende til rumtype
Computerkabinet
Type
Ventilator
Ventilator diameter
12 cm
Understøttede procesorsokler
Ikke understøttet
Kompatibel processor serie
Ikke understøttet
Omdrejningshastighed (min.)
300 rpm
Omdrejningshastighed (maks.)
1500 rpm
Støjniveau (høj hastighed)
22,4 dB
Luftstrøm
93,4 m³/t
Maksimalt lufttryk
2,61 mmH2O
Understøttelse af puls-bredde modulering (PWM)
Ja
Lejetype
Self-Stabilising Oil-pressure Bearing (SSO)
Design
Produktfarve
Beige, Brun
Antal blæsere
1 blæser(e)
Antal ventilatorblade
7
Ventilatorstik
4-polet
Certificering
CE
Strømstyring
Strømforsyning
0,75 W
Spænding
5 V
Strøm (maks.)
0,15 A
Vægt & størrelser
Bredde
120 mm
Dybde
25 mm
Højde
120 mm
Kabellængde
0,3 m
Pakkebredde
150 mm
Pakkedybde
34 mm
Pakkehøjde
210 mm
Pakkevægt
330 g
Tekniske detaljer
Compliance-certifikater
RoHS
Emballage indhold
Skruer inkluderet
Ja
Andre funktioner
Anti-vibrationssystem
Ja
Middeltid til fejl (MTTF)
150000 t
Logistik data
Harmoniseret systemkode (HS)
84733080
Hovedkassens bredde (udvendigt)
350 mm
Hovedkassens længde (udvendigt)
360 mm
Hovedkassen højde (udvendigt)
380 mm
Hovedkassens bruttovægt (udvendigt)
13,1 kg
Produkter pr. hovedkasse (udvendigt)
36 stk
