Varenummer: 2407422

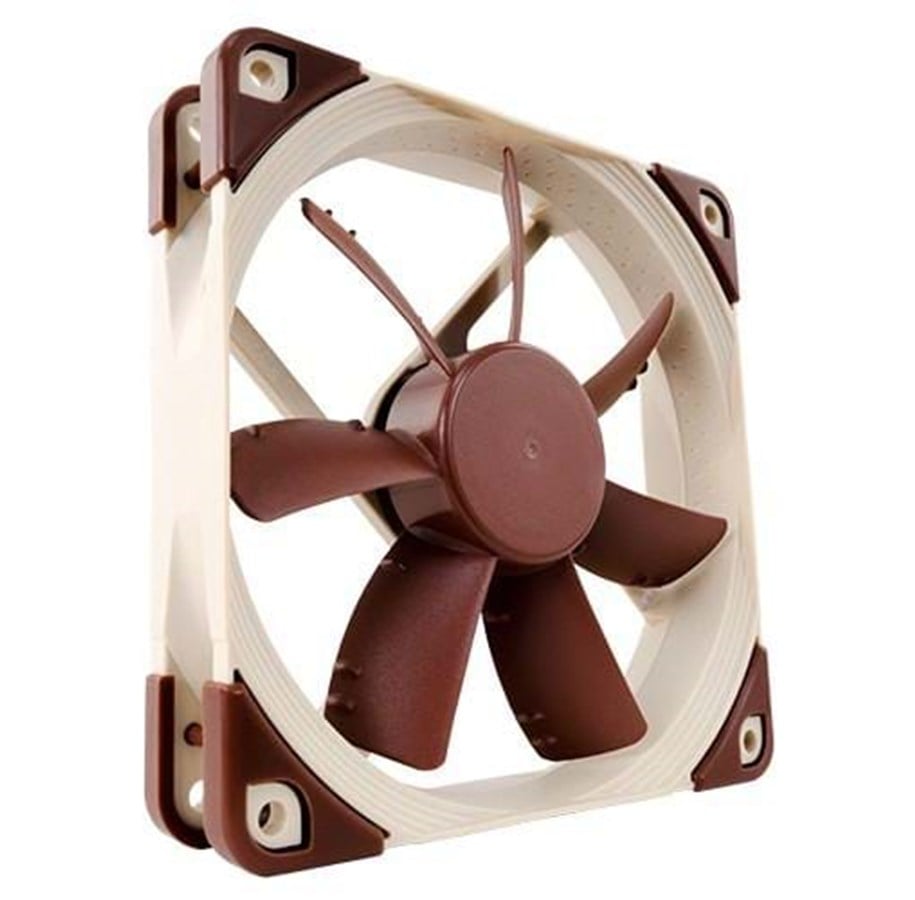

Noctua NF-S12A PWM - Kabinet køler - 120mm - Brun - 17 dBA

Kabinet køler, størrelse: 120mm x 120mm x 25mm (HxBxD), støjniveau: max 17.8 dBA, Air flow: max 63.3 CFM, blæser RPM: 300 - 1200 ±10%, PWM kontrolleret, 4 pins bundkort og 4 pins Molex tilslutning, brun

Læs mere
175,00 kr. 140,00 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Bestillingsvare, 12-13 dages levering

Award-winning S12 design

Award-winning S12 design

The NF-S12A features the third evolution of Noctua's classic Straight Blade Design that has earned its S12 series countless recommendations from hardware journalists and enthusiasts around the world. Further optimised for even better airflow/noise efficiency, it makes the NF-S12A an ideal quiet case fan.
Anti-Stall Knobs

Anti-Stall Knobs

The NF-S12A's Anti-Stall Knobs reduce flow separation phenomena in medium to high impedance situations and thereby increase the fan's stall margin. This means that the NF-S12A is even more versatile than its renowned predecessor and can achieve better performance on heatsinks and radiators.
AAO frame

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated anti-vibration pads

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
Custom-designed PWM IC with SCD

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-S12A PWM uses Noctua's novel, custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
Stops at 0% PWM

Stops at 0% PWM

When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.
Low-Noise Adaptor

Low-Noise Adaptor

The NF-S12A PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 1200 to 900rpm. The L.N.A. can be used either to run the fan at a fixed speed of 900rpm or to cap the maximum speed when using automatic PWM control.
Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second fan to the same PWM fan header for automatic control.
SSO2 Bearing

SSO2 Bearing

The NF-S12A features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell

Metal bearing shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-S12A sports a CNC milled bearing shell made entirely from brass.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-S12A features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.

Kabinet Køler

Producent
Varenummer
2407422
Model
NF-S12A PWM
Ean
4716123314929
Til producentens hjemmeside
Produktbeskrivelse
Noctua NF-S12A PWM - indsats med blæser
Produkttype
Indsats med blæser
Pakke Indhold
Ultra-Low-Noise Adapter (U.L.N.A.), 4 vibrerings isolatorer, forlængerkabel (30 cm)
Blæser diameter
120 mm
Blæser-højde
25 mm
Blæser med kugleleje
SSO2 leje
Omdrejningshastighed
300-1200 rpm
Luftstrøm
63,3 cfm
Støjniveau
17.8 dBA
Stik
4-pins blæser-stikforbindelse
Egenskaber
Puls-bredde modulation (PWM) support
Dimensioner (B x D x H)
12 cm x 12 cm x 2.5 cm

Generelt

Produkttype
Indsats med blæser
Pakke Indhold
Ultra-Low-Noise Adapter (U.L.N.A.), 4 vibrerings isolatorer, forlængerkabel (30 cm)
Bredde
12 cm
Dybde
12 cm
Højde
2.5 cm

Varmeafleder & blæser

Blæser diameter
120 mm
Blæser-højde
25 mm
Blæser med kugleleje
SSO2 leje
Omdrejningshastighed
300-1200 rpm
Luftstrøm
63,3 cfm
Lufttryk
1.19 mm
Støjniveau
17.8 dBA
Stik
4-pins blæser-stikforbindelse
Start Voltage
12 V
Egenskaber
Puls-bredde modulation (PWM) support

Diverse

Monteringspakke
Inkluderet
MTBF (forventet tid mellem fejl)
150,000 time(r)
