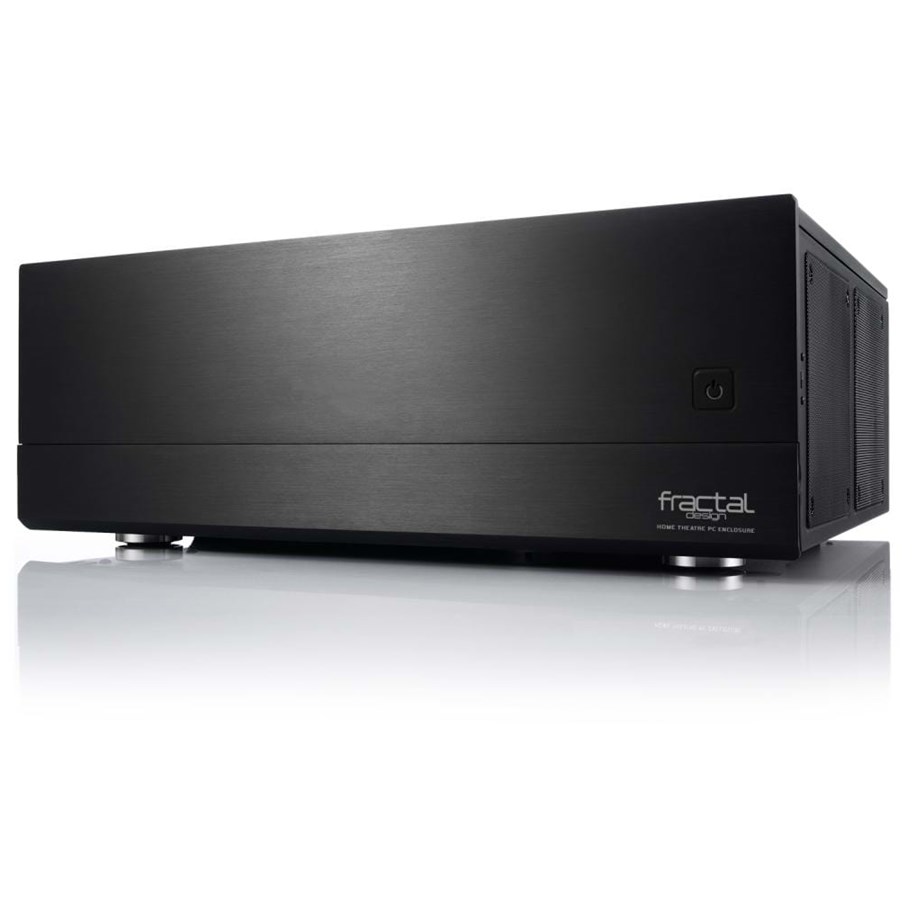

Fractal Design Node 605 - Kabinet - Desktop - Sort

The Node 605 highlights a minimalistic, sleek Scandinavian appeal which is designed to integrate into your home theatre equipment.

Featuring a stunning exterior appearance accompanied by a modern, black interior with sound and vibration dampening materials, the Fractal Design Node 605 supports a full ATX motherboard as well as a graphics card up to 280mm in length.

Cleverly hidden behind the access panel on the solid 8mm thick aluminum front panel are two USB 3.0 ports, a FireWire port and a multi-format card reader for multiple formats.

Key features

• Solid aluminum front panel
• Supports full ATX motherboards
• Noise-dampening material
• 4 HDD/SSD slots
• Integrated card reader
• Two Silent Series R2 hydraulic bearing fans included
• Supports graphic cards up to 280mm in length (180mm with all hard drives in place)
• USB 3.0 and FireWire front connectors

Specifications

• ATX, microATX, Mini ITX, DTX motherboard compatibility
• 7 expansion slots
• 4 - supports either 2.5" or 3.5" HDD / SSD
• 1x 12.7mm slim/slimline ODD (only supported with mATX or smaller motherboards)
• PSU compatibility: 180 mm (including any modular connectors) with both hard drive cages mounted or 190 mm (excluding cables and any modular connectors) with one hard drive cage mounted
• CPU cooler compatibility: Approx 125mm with side-mounted fans - For coolers with top-mounted fans, Fractal Design recommends that you add at least 30 mm clearance for decent airflow
• Case dimensions (W x H x D): 445 x 164 x 349 mm (excluding front panel - 440 x 162 x 341 mm)
• Net weight: 6.0 kg

Cooling system

• 5 fan slots total (3 - 120mm + 2 - 80mm)
• 2 – 120mm Silent Series R2 fans included
• Air filters for side fans and PSU
• Integrated three-channel fan controller (included)

Graphic card compatibility

• 180 mm with both hard drive cages mounted
• 255 mm with one hard drive cage mounted
• 290 mm in the top two ATX expansion card slots with two hard drive cages mounted
• 280 mm in the top four ATX expansion card slots with one hard drive cage mounted, containing one 3.5" HDD and one 2.5" SSD

Front interface

• 2 - USB 3.0
• 1 - FireWire (IEEE 1394)
• 1 - 3.5mm audio in (microphone)
• 1 - 3.5mm audio out (headphone)
• 1 - card reader
• Power button with LED
• HDD LED

Package contents

• Node 605 computer case
• User manual
• Accessory box
