Varenummer: 2834111

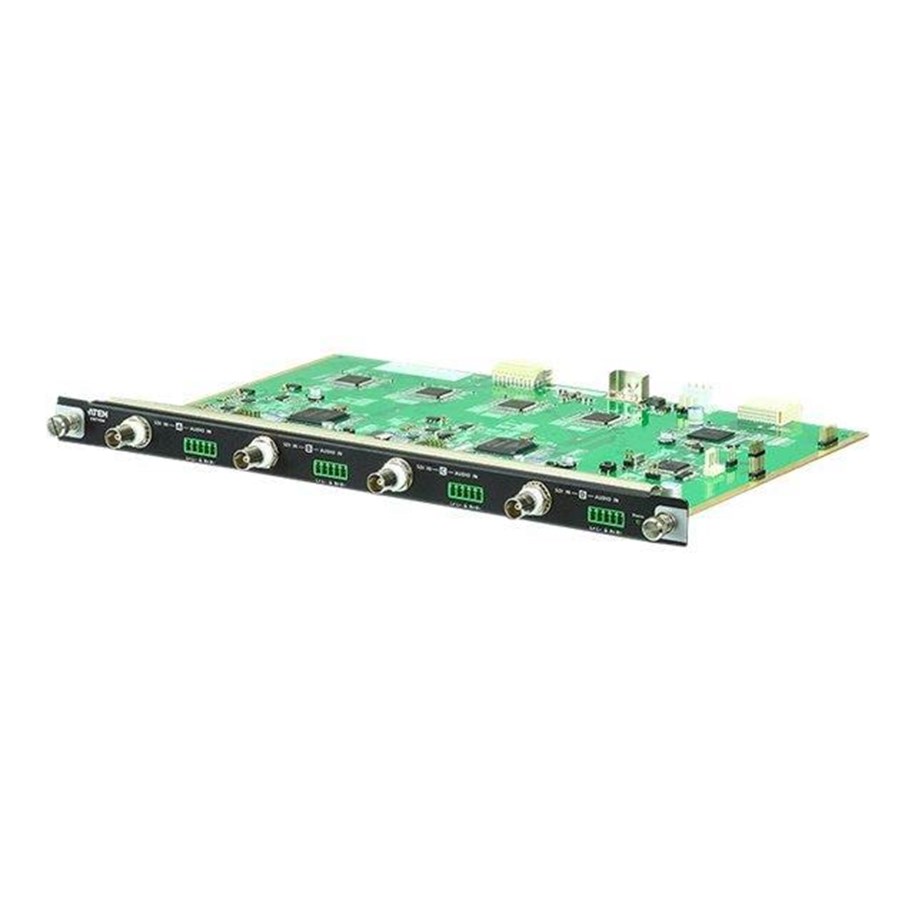

ATEN VM7404 4-Port 3G-SDI Input Board
Ekspansionsmodul, 3G-SDI x 4, for VanCryst VM1600A, VM3200, VM3250
24.303,00 kr.
19.442,40 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Bestillingsvare, leveringstiden kan ikke oplyses
The VM7404 4-Port 3G-SDI Input Board offers an easy way to route any 4 SDI video and audio sources to multiple displays when used in combination with an ATEN modular matrix switch. This input board provides the capability to connect to SDI sources, including 3G-SDI, HD-SDI and SD-SDI, and supports high-quality video resolutions. The VM7404 also supports separate analog stereo audio signals that can be routed independently. Furthermore, the board is based on a hot-swappable design, allowing the ATEN modular matrix switch to remain on while the board is changed. Ideal for surveillance systems and numerous other broadcast-grade A/V applications, the VM7404 allows you to effectively centralize routing for all your 3G / HD / SD-SDI devices.
Producent
Varenummer
2834111
Model
VM7404-AT
Ean
4719264643767
Til producentens hjemmeside
Produktbeskrivelse
ATEN VM7404 4-Port 3G-SDI Input Board - ekspansionsmodul - 3G-SDI x 4
Enhedstype
Ekspansionsmodul
Model
Indstiksmodul
Porte
3G-SDI x 4
Dimensioner (B x D x H)
35.2 cm x 23.8 cm x 2.33 cm
Vægt
600 g
Præstation
Maksimal datahastighed: 2,97 Gbps
Designet for
VanCryst VM1600A, VM3200, VM3250
Generelt
Enhedstype
Ekspansionsmodul
Model
Indstiksmodul
Netværk
Porte
3G-SDI x 4
Forbindelsesteknologi
Kablet
Præstation
Maksimal datahastighed: 2,97 Gbps
Egenskaber
HDCP kompatibel
Ekspansion / Konnektivitet
Interface
4 x 3G-SDI input - BNC x 5
4 x audio linje ind - 5 pins terminalblok
4 x audio linje ind - 5 pins terminalblok
Effekt
Strømforbrug ved drift
16 watt
Mål og vægt
Bredde
35.2 cm
Dybde
23.8 cm
Højde
2.33 cm
Vægt
600 g
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
40 °C
Fugtighedsgrad ved brug
0 - 80 % (ikke-kondenserende)
Oplysninger om kompatibilitet
Designet for
ATEN VanCryst VM1600A, VM3200, VM3250
