Netværkskamera - Axis P3735-PLE Panoramic Camera - 02633-001
Varenummer: 3273054
02633-001
02633-001

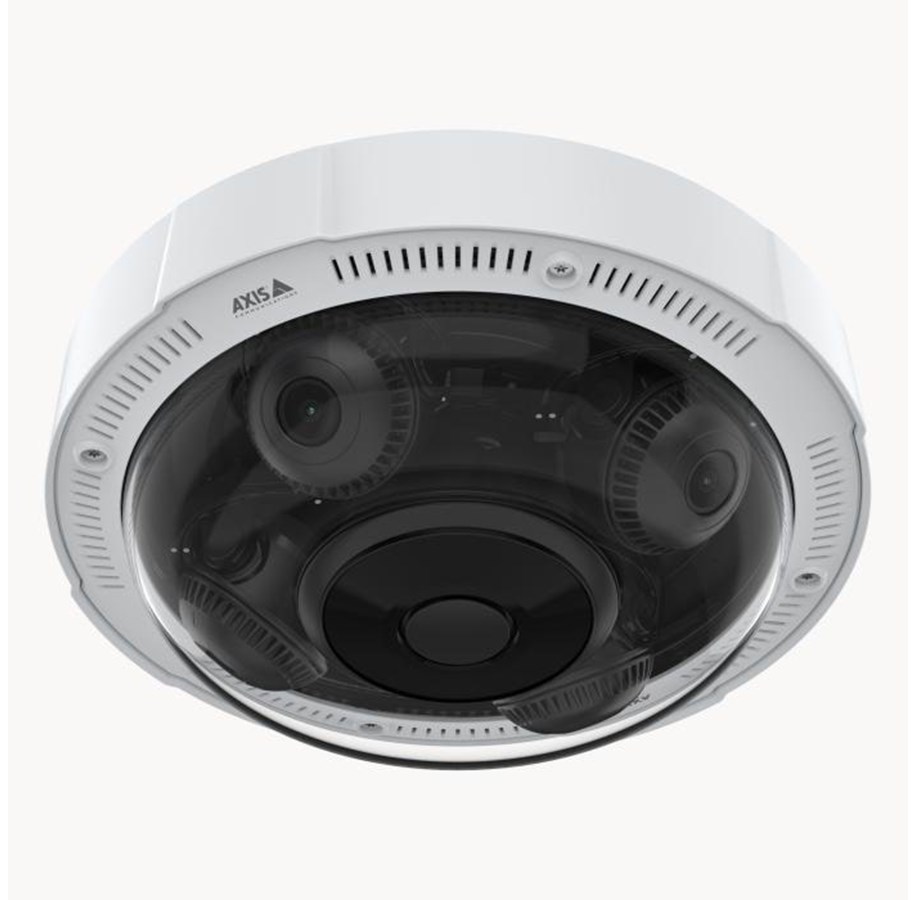

Axis P3735-PLE Panoramic Camera

Axis P3735-PLE Kuppel IP-sikkerhedskamera Indendørs & udendørs 1920 x 1080 pixel Loft

13.990,00 kr. 11.192,00 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Bestillingsvare, 6-7 dages levering

Ideal for wide-area surveillance, this multidirectional camera delivers excellent overviews and detailed coverage. With highly efficient power consumption, it ensures sustainable surveillance with lower operating costs.

Wide area surveillance with high-quality overview—24/7
AXIS P3735-PLE offers four channels with 2 MP per channel at 30 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness. Plus, Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Furthermore, it’s possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.

Brilliant Design
This compact camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners, it offers 270° coverage. Featuring a tamper-resistant casing and integrated IP66-/IP67-rated weather shield, it’s protected against rain, snow, and sunlight—ideal for outdoor wall mounting. In addition, all four varifocal camera heads can be moved and rotated to provide the optimal field of view. Plus, each head can be controlled individually so you can monitor scenes in four directions. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together where one captures the wide view and the other zooms in on the same target.

Cost-efficient and secure
With four camera heads in one camera, AXIS P3735-PLE ensures fast, accurate, and cost-effective installation. That’s because there’s only one camera to install, one cable to draw, one IP address, and one video management software (VMS) license. Plus, it offers market-leading energy consumption compared to multiple single-sensor cameras—even with IR enabled. This ensures sustainable surveillance with lower operating costs. Thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.

Deep learning analytics
Built on ARTPEC-8, this high-performance camera features a deep learning processing unit (DLPU) eliminating the need for expensive servers and allowing for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before—on the edge. This helps ensure fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it can detect and classify people and vehicles. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.

Producent
Varenummer
3273054
Model
02633-001
Ean
7331021080621
Til producentens hjemmeside
Type
IP-sikkerhedskamera
Understøttet placering
Indendørs & udendørs
Forbindelsesteknologi
Ledningsført
Bredt dynamikområde (WDR)
Ja
Dag/nat funktion
Ja
Infrarød (IR) cut-off filter
Ja
Fjernbetjening visning
Ja
Monteringstype
Loft
Produktfarve
Hvid
Formfaktor
Kuppel
Kode for international beskyttelse (IP)
IP66, IP67
IK kode
IK09
Kamerapanorering kontrol
Ja
Rotationsvinkel
190°
Objektivets synsvinkel, vandret
108 -40°
Objektivets synsvinkel, lodret
55 -23°
Objektivets synsvinkel, diagonal
131 -46°
Hældningsvinkelområde
25 - 95°
Panoreringsområde
-90 - 90°
Kameraets pixelstørrelse
2,9 µm
Kameraets lukkerhastighed
1/28000 - 5 sek./side
Sensortype
CMOS
Antal sensorer
4
Optisk sensorstørrelse
25,4 / 2,8 mm (1 / 2.8")
Progressiv scanning
Ja
Sensortype (panoramakamera)
CMOS
Antal sensorer (panoramakamera)
4
Optisk sensorstørrelse (panoramakamera)
25,4 / 2,8 mm (1 / 2.8")
Maksimal opløsning (panoramakamera)
1920 x 1080 pixel
Kameraets lukkertid (panoramakamera)
1/31500 sek./side
Signal-til-støj-forhold (SNR) (panoramakamera)
55 dB
Brændviddeområde (panoramakamera)
3.18 - 8.12 mm
Betragtningsvinkel, lodret (panoramakamera)
55,3°
Betragtningsvinkel, vandret (panoramakamera)
360°
Antal linser
4
Zoom kapacitet
Ja
Fokus
Motordrevet/manuel
Nattesyn
Ja
LED type
IR
Maksimal opløsning
1920 x 1080 pixel
Samlet antal megapixels
2 MP
Understøttede videoformater
H.264, H.265, M-JPEG
Video komprimeringsformater
H.264, H.265, M-JPEG
Billedhastighed
30 fps
Videostreaming
Ja
Audiosporing
Ja
Ethernet LAN
Ja
Kompatible hukommelseskort
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flashhukommelse
8192 MB
Intern hukommelse
2048 MB
Ethernet LAN-porte (RJ-45)
1
Strømkilde type
PoE
Driftstemperatur (T-T)
-30 - 50 °C
Opbevaringstemperatur (T-T)
-40 - 65 °C
Vægt
2 kg
Bæredygtighedscertifikater
CE, EAC, KC, UKCA, UL ECOLOGO, VCCI, cUL
Overholdelse af bæredygtighed
Ja

Præstation

Type
IP-sikkerhedskamera
Understøttet placering
Indendørs & udendørs
Forbindelsesteknologi
Ledningsført
Bredt dynamikområde (WDR)
Ja
Dag/nat funktion
Ja
Infrarød (IR) cut-off filter
Ja
Fjernbetjening visning
Ja

Design

Monteringstype
Loft
Produktfarve
Hvid
Formfaktor
Kuppel
Kode for international beskyttelse (IP)
IP66, IP67
IK kode
IK09

Kamera

Kamerapanorering kontrol
Ja
Rotationsvinkel
190°
Objektivets synsvinkel, vandret
108 -40°
Objektivets synsvinkel, lodret
55 -23°
Objektivets synsvinkel, diagonal
131 -46°
Hældningsvinkelområde
25 - 95°
Panoreringsområde
-90 - 90°
Kameraets pixelstørrelse
2,9 µm
Kameraets lukkerhastighed
1/28000 - 5 sek./side

Billedsensor

Sensortype
CMOS
Antal sensorer
4
Optisk sensorstørrelse
25,4 / 2,8 mm (1 / 2.8")
Progressiv scanning
Ja

Panoramakamera

Sensortype (panoramakamera)
CMOS
Antal sensorer (panoramakamera)
4
Optisk sensorstørrelse (panoramakamera)
25,4 / 2,8 mm (1 / 2.8")
Maksimal opløsning (panoramakamera)
1920 x 1080 pixel
Kameraets lukkertid (panoramakamera)
1/31500 sek./side
Signal-til-støj-forhold (SNR) (panoramakamera)
55 dB
Brændviddeområde (panoramakamera)
3.18 - 8.12 mm
Betragtningsvinkel, lodret (panoramakamera)
55,3°
Betragtningsvinkel, vandret (panoramakamera)
360°

Linsesystem

Antal linser
4
Zoom kapacitet
Ja
Fokus
Motordrevet/manuel

Nattesyn

Nattesyn
Ja
LED type
IR

Video

Maksimal opløsning
1920 x 1080 pixel
Samlet antal megapixels
2 MP
Understøttede videoformater
H.264, H.265, M-JPEG
Video komprimeringsformater
H.264, H.265, M-JPEG
Billedhastighed
30 fps
Videostreaming
Ja

Lyd

Audiosporing
Ja

Netværk

Ethernet LAN
Ja

Lagring

Kompatible hukommelseskort
MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flashhukommelse
8192 MB
Intern hukommelse
2048 MB

Porte & Grænseflader

Ethernet LAN-porte (RJ-45)
1

Strømstyring

Strømkilde type
PoE

Driftsbetingelser

Driftstemperatur (T-T)
-30 - 50 °C
Opbevaringstemperatur (T-T)
-40 - 65 °C

Vægt & størrelser

Vægt
2 kg

Tekniske detaljer

Bæredygtighedscertifikater
CE, EAC, KC, UKCA, UL ECOLOGO, VCCI, cUL
Overholdelse af bæredygtighed
Ja

Ovenstående informationer/specifikationer er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder. Enkelte tekster kan være autogenererede eller maskinoversatte, og der kan derfor fremkomme tekster, som kan virke misvisende.
