Varenummer: 3403098

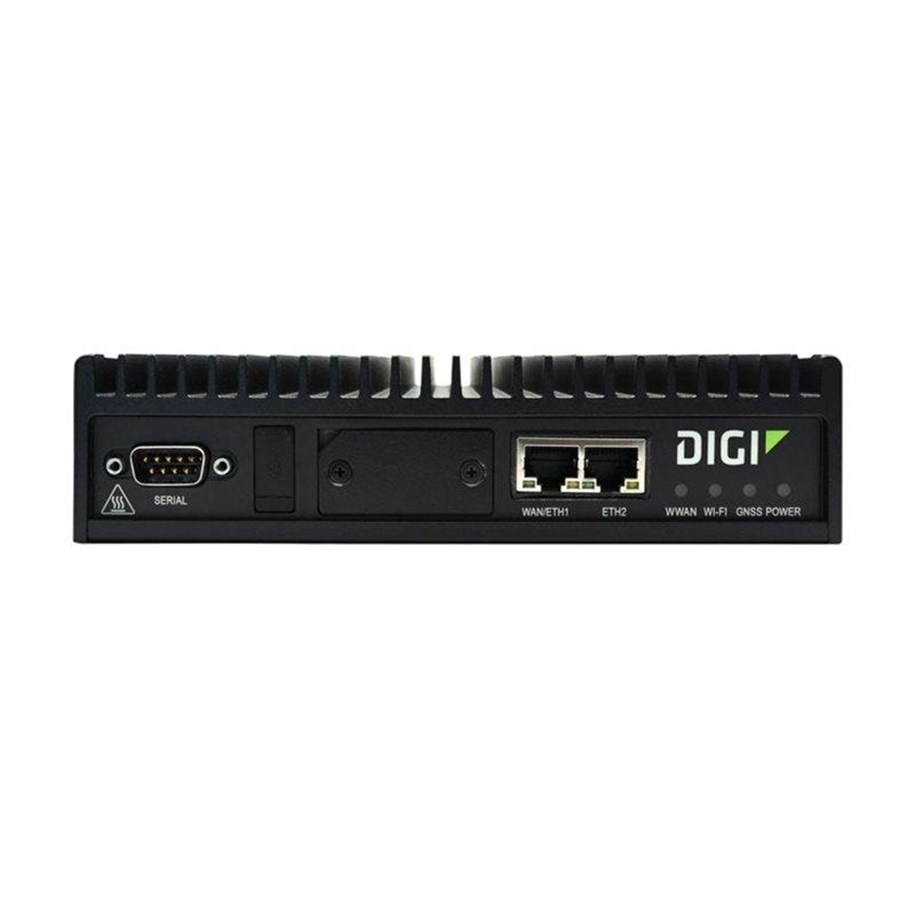

Digi TX40 - wireless router - WWAN - Wi-Fi 6 Bluetooth - desktop - Wireless router Wi-Fi 6

Trådløs router, WWAN 1GbE Dual Band AT&T, T-Mobile, Verizon Wireless, for P/N: 76002121, 76002136

14.681,00 kr. 11.744,80 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Bestillingsvare, leveringstiden kan ikke oplyses

The Digi TX40 is a versatile wireless cellular modem designed to meet demanding connectivity needs across various environments. Offering a robust chassis combined with built-in GPS, GLONASS, Beidou, and Galileo capabilities, this device ensures accurate positioning and navigation features for any application. It operates seamlessly in extreme conditions, with a minimum operating temperature of -34 °C and a maximum of 74 °C, while maintaining functionality in humidity levels ranging from 0% to 95% non-condensing. Equipped with extensive mobile broadband support, including 5G and LTE Advanced Pro along with multiple cellular bands, it provides reliable Internet access for smart devices. The networking capabilities include both wired and wireless connectivity options, supporting Ethernet, Fast Ethernet, Gigabit Ethernet, and Wi-Fi standards from 802.11a to ax. Security features such as VPN support, firewall, and various encryption algorithms enhance data safety, making the Digi TX40 an ideal choice for businesses needing reliable and secure network communication.

Producent
Varenummer
3403098
Model
TX40-A500
Til producentens hjemmeside
Produktbeskrivelse
Digi TX40 - trådløs router - WWAN - Wi-Fi 6, Bluetooth - desktop
Enhedstype
Trådløs router - trådløs mobilmodem
Pakningstype
Desktop
Serviceudbyder
AT&T, T-Mobile, Verizon Wireless
Mobilprotokol
LTE Advanced Pro Cat 20, 5G
Mobilbånd
5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n29, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n79, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B66, LTE B71, WCDMA B1, WCDMA B2, WCDMA B3, WCDMA B4, WCDMA B5, WCDMA B6, WCDMA B8, WCDMA B19
Antal WAN porte
1
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frekvensbånd
2,4 GHz/5 GHz
Netværks/overføselsprotokol
DHCP, UDP, TCP
Routingprotokol
OSPF, GRE, PPPoE, RIP-1, RIP-2, BGP, IGMP, VRRP
Protokol til fjernadministration
SNMP 2, SNMP 3, HTTPS, CLI, SSH, SFTP, SCP, Syslog
Egenskaber
NAT-understøtning, NAPT-understøttet, VLAN-understøttet, Syslog understøttet, indholdsfiltrering, MAC-adresse-filtrering, ATS, IPSec-klient, dynamisk DNS, DNS server, Captive Portal, NTP server, IP multicast, mDNS, OpenVPN-klient
Overensstemmelsesstandarder
IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n
Dimensioner (B x D x H)
19.8 cm x 13.8 cm x 4.4 cm
Vægt
1 kg
Designet for
P/N: 76002121, 76002136

Generelt

Enhedstype
Trådløs router
Serviceudbyder
AT&T, T-Mobile, Verizon Wireless
Pakningstype
Desktop
Forbindelsesteknologi
Trådløs, kablet
Dataforbindelsesprotokol
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Frekvensbånd
2,4 GHz/5 GHz
Netværks/overføselsprotokol
DHCP, UDP, TCP
Routingprotokol
OSPF, GRE, PPPoE, RIP-1, RIP-2, BGP, IGMP, VRRP
Protokol til fjernadministration
SNMP 2, SNMP 3, HTTPS, CLI, SSH, SFTP, SCP, Syslog
Krypterings algoritme
FIPS 197, WPA, WPA2, WPA3, FIPS 140-2, SSL 3.0, SHA-1, MD5, RSA, DES, 3DES, 256-bit AES, IKEv1, IKEv2
Autentificeringsmetode
RADIUS, X.509 certifikater, TACACS+
Egenskaber
NAT-understøtning, NAPT-understøttet, VLAN-understøttet, Syslog understøttet, indholdsfiltrering, MAC-adresse-filtrering, ATS, IPSec-klient, dynamisk DNS, DNS server, Captive Portal, NTP server, IP multicast, mDNS, OpenVPN-klient
Overensstemmelsesstandarder
IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, PTCRB, IEC 62368-1 CB Scheme, e-mark certified, FCC Part 15 B, IC, UKCA, MIL-STD-810H
Indbygget udstyr
GPS, GLONASS, Beidou, Galileo
Statusindikatorer
Strøm, GNSS, Wi-Fi, WWAN, Ethernet-link/aktivitet

Kommunikationer

Type
Trådløs mobilmodem
Mobilprotokol
LTE Advanced Pro Cat 20, 5G
Mobilbånd
5G n1, 5G n2, 5G n3, 5G n5, 5G n7, 5G n8, 5G n12, 5G n13, 5G n14, 5G n18, 5G n20, 5G n25, 5G n26, 5G n28, 5G n29, 5G n30, 5G n38, 5G n40, 5G n41, 5G n48, 5G n66, 5G n71, 5G n75, 5G n76, 5G n77, 5G n78, 5G n79, LTE B1, LTE B2, LTE B3, LTE B4, LTE B5, LTE B7, LTE B8, LTE B12, LTE B13, LTE B14, LTE B17, LTE B20, LTE B25, LTE B26, LTE B28, LTE B29, LTE B30, LTE B32, LTE B38, LTE B40, LTE B41, LTE B42, LTE B43, LTE B46, LTE B48, LTE B66, LTE B71, WCDMA B1, WCDMA B2, WCDMA B3, WCDMA B4, WCDMA B5, WCDMA B6, WCDMA B8, WCDMA B19

Ekspansion / Konnektivitet

Interface
LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Seriel: 1 x RS-232 - 9-pin D-Sub (DB-9)
USB 3.0: 1 x 9 pin USB Type A
Ekspansionsåbninger
2 (total) / 2 (fri) x Mini-SIM

Effekt

Strømenhed
Ekstern strømforsyning

Mål og vægt

Bredde
19.8 cm
Dybde
13.8 cm
Højde
4.4 cm
Vægt
1 kg

Miljømæssige parametre

Min. driftstemperatur
-34 °C
Maks. driftstemperatur
74 °C
Fugtighedsgrad ved brug
0 - 95% (ikke-kondenserende)

Oplysninger om kompatibilitet

Designet for
P/N: 76002121, 76002136
