Varenummer: 2659250

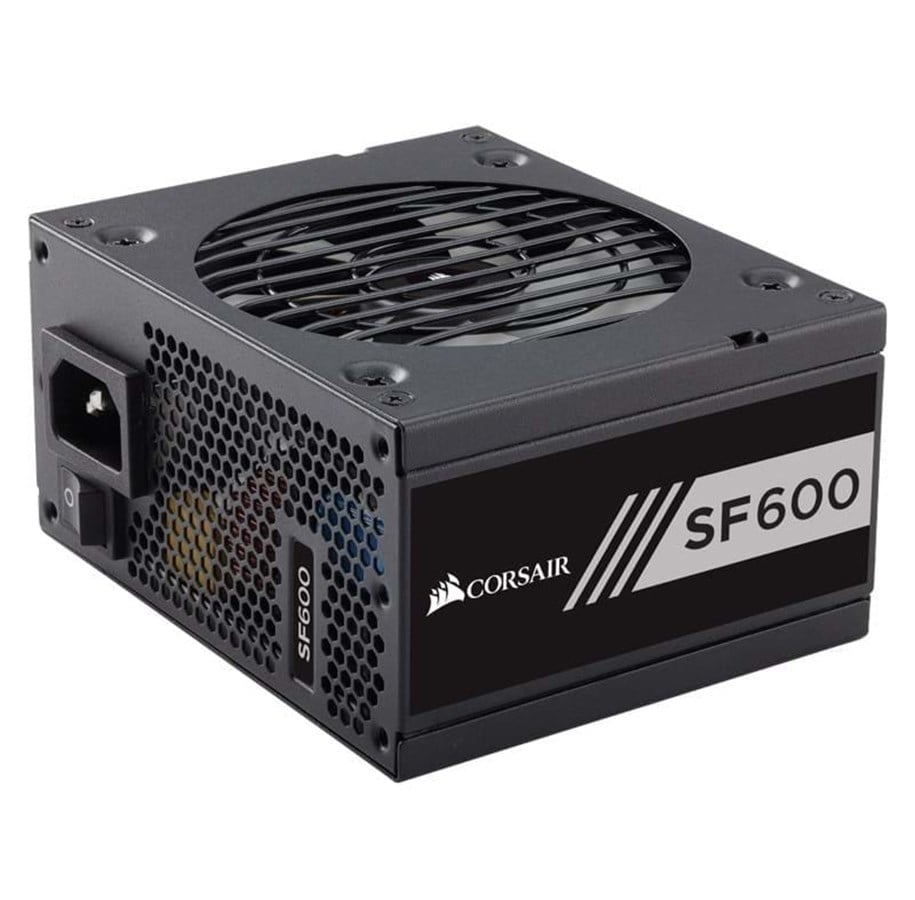

Corsair SFX series SF600 Platinum Strømforsyning - 600 Watt - 92 mm - ATX - 80 Plus Platinum certified

Strømforsyning ( intern ), SFX størrelse, ATX12V 2.4 / EPS12V 2.92, 80 Plus Platinum, 92 mm blæser med zero RPM fan mode teknologi, aktiv PFC, kabler: 2 x 8 (6+2) pins til grafikkort / 4 x 5 pins SATA / 3 x 4 pins Molex / 1 x 20+4 pins ATX / 1 x 4+4 pins CPU, fuld modulær & tynde sleeved kabler, 600 watt

Varen er udgået

Compact SFX Form-Factor

The SF PLATINUM Series’ high-density design delivers high efficiency and low noise in a compact SFX form factor without compromising continuous power, reliability, or quality.

Individually Sleeved, Fully Modular Cables

SF PLATINUM Series power supplies come equipped with premium individually sleeved cables featuring a flexible paracord sleeve, ready to become part of your new high-end PC. The individually sleeved cables also make routing and cable management a breeze, with a lower profile and added flexibility over flat or sleeved cable kits.

80 PLUS PLATINUM CERTIFIED

SF PLATINUM power supplies deliver power with over 92% efficiency to keep energy consumption, noise, temperatures, and your power bill low.

100% ALL JAPANESE 105°C CAPACITORS

By using high-end electrolytic capacitors, SF PLATINUM Series provides the unwavering power and long-term reliability you’ve come to expect from a CORSAIR power supply.

ZERO RPM FAN MODE

At low and medium loads the SF600 PLATINUM’s cooling fan doesn’t spin until you need it, for near-silent operation.

92mm Cooling Fan

The SF PLATINUM Series upgrades the SFX-standard 80mm fan to 92mm, reducing noise and improving performance at demanding loads.

INNOVATIVE INTERNAL DESIGN

SF PLATINUM Series power supplies are built around an innovative new internal design which swaps wires for soldered PCBs, delivering superb performance, incredibly stable voltages and ultra-low ripple and electrical noise.

SFX-to-ATX Bracket Included

SF PLATINUM Series power supplies include an SFX-to-ATX power supply adapter bracket that allows installation into any ATX compatible case. The new bracket offsets the mounting location, allowing for more space inside any standard ATX chassis, so you can tuck your excess cables out of the airflow path.

Strømkabel (intern)

Producent
Varenummer
2659250
Model
CP-9020182-EU
Ean
0843591063975
Til producentens hjemmeside
Kontakt producent
Produktbeskrivelse
CORSAIR SF Series SF600 - strømforsyning - 600 watt
Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX12V 2.4/ EPS12V 2.92 / SFX12V
80 PLUS certificering
80 PLUS Platinum
Vægt
860 g
Lokalisering
Europa
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
600 watt
Output Current
+3.3V - 20 A
+5V - 20 A
+12V - 50 A
-12V - 0.3 A
+5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX
1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
4 x 15 pin Serial ATA strøm
3 x 4-PIN intern strøm
Modulær Kabel Administration
Ja
Kølesystem
92 mm blæser
Udstyr inkluderet
Skruer, etuimærkat, kabelbånd, kabelpose, SFX to ATX bracket
Dimensioner (B x D x H)
12.5 cm x 10 cm x 6.3 cm

Generelt

Enhedstype
Strømforsyning - intern
Specifikationsoverensstemmelse
ATX12V 2.4/ EPS12V 2.92 / SFX12V
PSU formfaktor
SFX
Lokalisering
Europa

Strømenhed

Indgangspænding
AC 100-240 V
Nødvendig frekvens
47 - 63 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX
1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion
2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion
4 x 15 pin Serial ATA strøm
3 x 4-PIN intern strøm
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
600 watt
Output Current
+3.3V - 20 A
+5V - 20 A
+12V - 50 A
-12V - 0.3 A
+5VSB - 2.5 A
Effektivitet
92%
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Platinum

Diverse

Udstyr inkluderet
Skruer, etuimærkat, kabelbånd, kabelpose, SFX to ATX bracket
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
92 mm blæser
Egenskaber
Kabler med omslag, Zero RPM-blæsermodus, riffelleje-køleblæser, fuld modulær

Mål og vægt

Bredde
12.5 cm
Dybde
10 cm
Højde
6.3 cm
Vægt
860 g

Mål & vægt (forsendelse)

Bredde ved forsendelse
18.5 cm
Dybde ved forsendelse
24.6 cm
Højde ved forsendelse
10.5 cm
Vægt ved forsendelse
2 kg
