Varenummer: 3438336

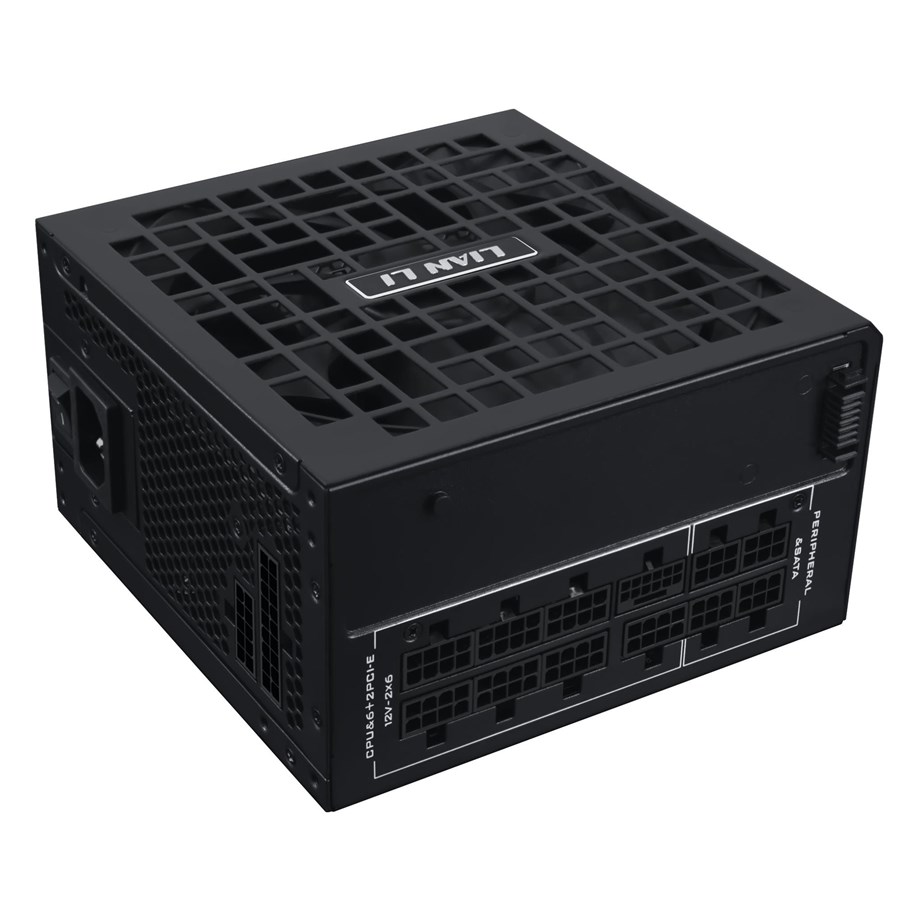

Lian Li RS1000G Strømforsyning - 1000 Watt - 135 mm - ATX 3.1 - 80 Plus Gold certified

Strømforsyning ( intern ), ATX standard: ATX12V 3.1, 80 plus Gold, 135mm blæser fluid dynamic leje, kabler: 4 x 8 (6+2) pins til grafikkort / 1 x 12V-2x6 pins til grafikkort (PCI Express 5.1 ready) / 3 x 5 pins SATA / 1 x 24 (20+4) pins ATX / 1 x 4+4 pins CPU1 x 8 pins CPU, fuld modulærfarve: sort, 1000 watt

Billigste fragt (privatkunde) 33,00 kr.
Bestillingsvare, 7-8 dages levering

Available in Black and White
6 Configurations to Suit Your Build

Available in Black and White, with both 1200W and 1000W models. Users can choose between the standard version or the upgraded edition with a RS Hub for greater flexibility.

MULTIPLE CERTIFICATIONS
Built as a Gold-standard power supply, the RS Series surpasses expectations.
During Cybenetics testing, its real-world efficiency exceeded the Gold range and earned a Platinum rating, proving its exceptional performance and power savings in demanding workloads.

TWO INSTALLATION OPTIONS FOR GREATER FLEXIBILITY
The RS Series offers both standard and side installation options, giving users greater flexibility to match different case layouts and achieve cleaner cable management.

ROTATABLE AC INLET
Innovative rotatable AC inlet rotates 90°, providing unmatched flexibility to accommodate both standard and vertical installations.

Flexible Cable Routing with Dual-Sided 20+4 Pin
The dual-sided 20+4 Pin output design allows cable routing from both sides, making installation cleaner and easier in any configuration.

PREMIUM INDUSTRIAL-GRADE CAPACITORS FOR UNMATCHED RELIABILITY
Equipped with German EPCOS capacitors, the RS Series delivers long-lasting stability and trusted performance you can rely on.

COMPACT SIZE, POWERFUL COOLING
With a 150 × 86 × 150 mm form factor and a built-in 135 mm fan, the RS Series delivers efficient airflow and excellent dual-chamber case compatibility. Rated SSS by PPLP.info, it ensures ultra-low noise across all load levels for a consistently quiet experience.

LIAN LI Exclusive Dual-Color 12V-2×6 Cable
Specially designed for next-gen GPUs, LIAN LI’s exclusive dual-color 12V-2×6 cable ensures safer and more reliable power delivery. The dual-color housing makes connections clearer at a glance, while the reinforced structure provides long-lasting durability and stability for every build.

Braided-Textured Cable for Aesthetic Appeal
The main 20+4-pin motherboard cable features a braided texture design with an included cable comb, offering durability and a refined look that enhances the overall build aesthetics.

SHORTEN YOUR CABLES, PERFECT YOUR BUILD
These ultra-flexible flat cables, combined with magnetic clips that secure the folds, let you manage excess length, making them ideal for builds that require shorter CPU or PCIe cables. Perfect for back-connect motherboards or side-mounted PSU setups, they help keep your layout neat and organized.

Protective Dust Cover for 18+10 Pin Output
Equipped with an insulated dust cover on the 18+10 pin output to protect against foreign objects and ensure safe, reliable operation.

All Essential Cables Included
The RS Series comes with a complete set of high-quality modular cables right out of the box. Every connection you need for a clean and reliable build is already included, ensuring a hassle-free installation experience.

Strømkabel (intern)

Producent
Varenummer
3438336
Model
G9P.RS1000G.B000.EU
Ean
4718466019066
Til producentens hjemmeside
Total effekt
1000 W
Vekselstrømsindgangsspænding
100 - 240 V
Vekselstrømsindgangsfrekvens
50/60 Hz
Indgangsstrøm
8 - 15 A
Strømkorrektionsfaktor (PFC)
Aktiv
Kombineret effekt (+3,3 V)
100 W
Kombineret effekt (+12 V)
1200 W
Kombineret effekt (+5 V)
100 W
Kombineret effekt (+5 VSB)
100 W
Strømbeskyttelsesfunktioner
No load operation, Overstrøm, Overstrøm, Højspænding, Kortslutning, Surge & inrush protection (SIP), Undertemperatur, Lavspænding
Motherboard, strømstik
20+4 pin ATX
Perifere (Molex) strømstik (4-pin)
4
Længde på strømkabel på bundkort
62 cm
Strømkabellængde Perifere (Molex)
500 mm
PCI ekspres strømforbindelser (6+2 pin)
2
Strømkabellængde PCI Express
65 cm
Strømkabellængde CPU
70 cm
ATX strømstik (20+4 pin)
Ja
Kabeltype
Fuldt modulær
Formål
PC
Strømforsyningenhed (PSU) formfaktor
ATX
80 PLUS certificering
80 PLUS Gold
ATX-version
3.1
Støjniveau
36,21 dB
Lejeteknologi
FDB
Gennemsnitstid mellem fejl (MTBF)
100000 t
Produktfarve
Sort
Ventilator diameter
13,5 cm
Antal blæsere
1 blæser(e)
Ventilatorhastighed
0 - 1600 rpm
Driftstemperatur (T-T)
0 - 40 °C
Bredde
86 mm
Dybde
150 mm
Højde
150 mm

Strømstyring

Total effekt
1000 W
Vekselstrømsindgangsspænding
100 - 240 V
Vekselstrømsindgangsfrekvens
50/60 Hz
Indgangsstrøm
8 - 15 A
Strømkorrektionsfaktor (PFC)
Aktiv
Kombineret effekt (+3,3 V)
100 W
Kombineret effekt (+12 V)
1200 W
Kombineret effekt (+5 V)
100 W
Kombineret effekt (+5 VSB)
100 W
Strømbeskyttelsesfunktioner
No load operation, Overstrøm, Overstrøm, Højspænding, Kortslutning, Surge & inrush protection (SIP), Undertemperatur, Lavspænding

Porte & Grænseflader

Motherboard, strømstik
20+4 pin ATX
Perifere (Molex) strømstik (4-pin)
4
Længde på strømkabel på bundkort
62 cm
Strømkabellængde Perifere (Molex)
500 mm
PCI ekspres strømforbindelser (6+2 pin)
2
Strømkabellængde PCI Express
65 cm
Strømkabellængde CPU
70 cm
ATX strømstik (20+4 pin)
Ja
Kabeltype
Fuldt modulær

Præstation

Formål
PC
Strømforsyningenhed (PSU) formfaktor
ATX
80 PLUS certificering
80 PLUS Gold
ATX-version
3.1
Støjniveau
36,21 dB
Lejeteknologi
FDB
Gennemsnitstid mellem fejl (MTBF)
100000 t

Design

Produktfarve
Sort
Ventilator diameter
13,5 cm
Antal blæsere
1 blæser(e)
Ventilatorhastighed
0 - 1600 rpm

Driftsbetingelser

Driftstemperatur (T-T)
0 - 40 °C

Vægt & størrelser

Bredde
86 mm
Dybde
150 mm
Højde
150 mm
