Varenummer: 2816635

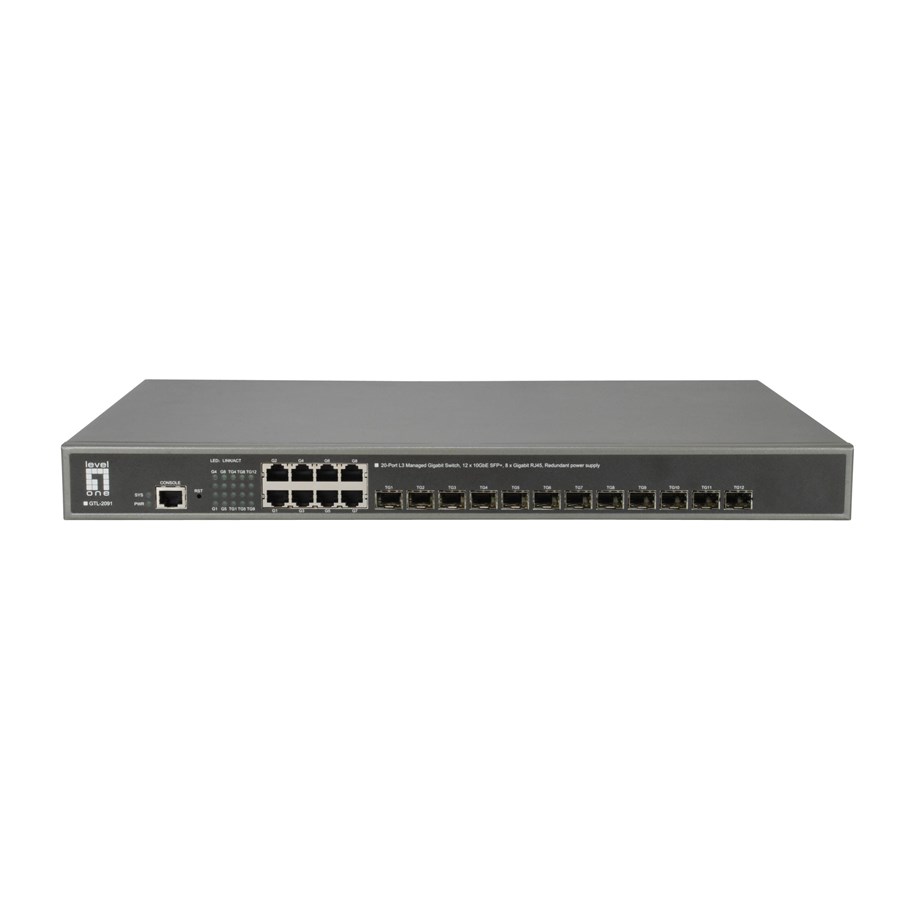

LevelOne GTL-2091 20-Port L3 Managed Gigabit Switch (12 x 10GbE SFP+ 8 x Gigabit RJ45) Redundant power supply
Switch, L3, Administreret, 12 x 10 Gigabit SFP+ + 8 x 10/100/1000, desktop, monterbar på stativ
9.006,00 kr.
7.204,80 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Fjernlager, 4-5 dages levering
The GTL-2091 is LevelOne latest generation of 20-Port L3 Managed Gigabit Switch, 8 x Gigabit RJ45, with 12 10G SFP+ port connectivity. High-density SFP ports built into allow users to insert different SFP transceivers providing the necessary fiber connections for creating Area Networks infrastructure. Also offers AC dual power failover, allowing for continued operation regardless of a single power source failure.
The GTL-2091 offers powerful L3 features (IPv4/v6 static route, RIP v1/v2, OSPF v2/v3, BGP, PIM-DM, PIM-SM), The switch also supports the most advanced IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment. ISPs can expand their services for home to business users by providing a more reliable and resilient network, and advanced OAM (Operations, Administration, and Maintenance) functions to ensure service-level agreements. Enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.
The GTL-2091 offers powerful L3 features (IPv4/v6 static route, RIP v1/v2, OSPF v2/v3, BGP, PIM-DM, PIM-SM), The switch also supports the most advanced IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment. ISPs can expand their services for home to business users by providing a more reliable and resilient network, and advanced OAM (Operations, Administration, and Maintenance) functions to ensure service-level agreements. Enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.
Producent
Varenummer
2816635
Model
GTL-2091
Ean
4015867208366
Til producentens hjemmeside
Produktbeskrivelse
LevelOne GTL-2091 - switch - 20 porte - Administreret - monterbar på stativ
Enhedstype
Switch - 20 porte - L3 - Administreret
Pakningstype
Monterbar på stativ 1U
Undertype
10 Gigabit Ethernet
Porte
12 x 10 Gigabit SFP+ + 8 x 10/100/1000
Præstation
Omkoblingskapacitet: 256 Gbps
MAC adresse table størrelse
32K indtastningshukommelse
Jumborammesupport
9KB
Routingprotokol
RIP-1, RIP-2, BGP, VRRP, OSPFv2, PIM-SM, PIM-DM, OSPFv3, statisk IPv4 routing, statisk IPv6 routing
Protokol til fjernadministration
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Egenskaber
Datatransport, VLAN-understøttet, IGMP snooping, DoS attack beskyttelse, portspejling, gem og send, IPv6 understøttet, fuld dupleksmodus, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, nulstillingsknap, IPv4 support, DHCP videresendelse, DHCP klient, Class of Service (CoS), Network Timing Protocol (NTP), Root Guard, Loop Guard, Energy-Efficient Ethernet (EEE), 3 Mbit pakkebuffer
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3az, IEEE 802.1AX
Effekt
AC 120/230 V (50/60 Hz)
Overskudsspænding
Ja
Dimensioner (B x D x H)
44 cm x 31.5 cm x 4.4 cm
Vægt
3.6 kg
Generelt
Enhedstype
Switch - 20 porte - L3 - Administreret
Pakningstype
Desktop, monterbar på stativ 1U
Undertype
10 Gigabit Ethernet
Porte
12 x 10 Gigabit SFP+ + 8 x 10/100/1000
Præstation
Omkoblingskapacitet: 256 Gbps
MAC adresse table størrelse
32K indtastningshukommelse
Jumborammesupport
9KB
Routingprotokol
RIP-1, RIP-2, BGP, VRRP, OSPFv2, PIM-SM, PIM-DM, OSPFv3, statisk IPv4 routing, statisk IPv6 routing
Protokol til fjernadministration
SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Krypterings algoritme
SSL
Autentificeringsmetode
RADIUS, Secure Shell v.2 (SSH2)
Egenskaber
Datatransport, VLAN-understøttet, IGMP snooping, DoS attack beskyttelse, portspejling, gem og send, IPv6 understøttet, fuld dupleksmodus, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, nulstillingsknap, IPv4 support, DHCP videresendelse, DHCP klient, Class of Service (CoS), Network Timing Protocol (NTP), Root Guard, Loop Guard, Energy-Efficient Ethernet (EEE), 3 Mbit pakkebuffer
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3az, IEEE 802.1AX
RAM
512 MB
Flashhukommelse
16 MB
Statusindikatorer
Strøm, system, link/aktivitet
Ekspansion / Konnektivitet
Interface
8 x 1000Base-T RJ-45
12 x 10 Gbit LAN SFP+
1 x konsol RJ-45
12 x 10 Gbit LAN SFP+
1 x konsol RJ-45
Effekt
Strømenhed
Intern strømforsyning
Antal installeret
2
Maks. antal understøttet
2
Overskudsspænding
Ja
Strømforsyning
50 Watt
Nødvendig spænding
AC 120/230 V (50/60 Hz)
Diverse
Udstyr inkluderet
Gummifødder
Medfølgende ledninger
1 x konsolkabel
Rackmonteringspakke
Inkluderet
MTBF (forventet tid mellem fejl)
185,680 timer
Overensstemmelsesstandarder
FCC Part 15 B, RoHS
Mål og vægt
Bredde
44 cm
Dybde
31.5 cm
Højde
4.4 cm
Vægt
3.6 kg
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
50 °C
Fugtighedsgrad ved brug
10 - 90 % (ikke-kondenserende)
Min. lagertemperatur
-40 °C
Maks. Opbevaringstemperatur
70 °C
Lagerfugtighedsgrad
5 - 95 % (ikke-kondenserende)
Ovenstående informationer/specifikationer kan løbende ændres. I tilfælde af trykfejl vedrørende pris eller udsolgte varer bestræber vi os på hurtigst muligt at opdatere siden. Hvis en pris er åbenlyst forkert, er Happii ikke forpligtet til at levere det pågældende produkt til den forkerte pris. Enkelte tekster kan være autogenererede eller maskinoversatte, og der kan derfor fremkomme tekster, som virker misvisende.
