Varenummer: 2597354

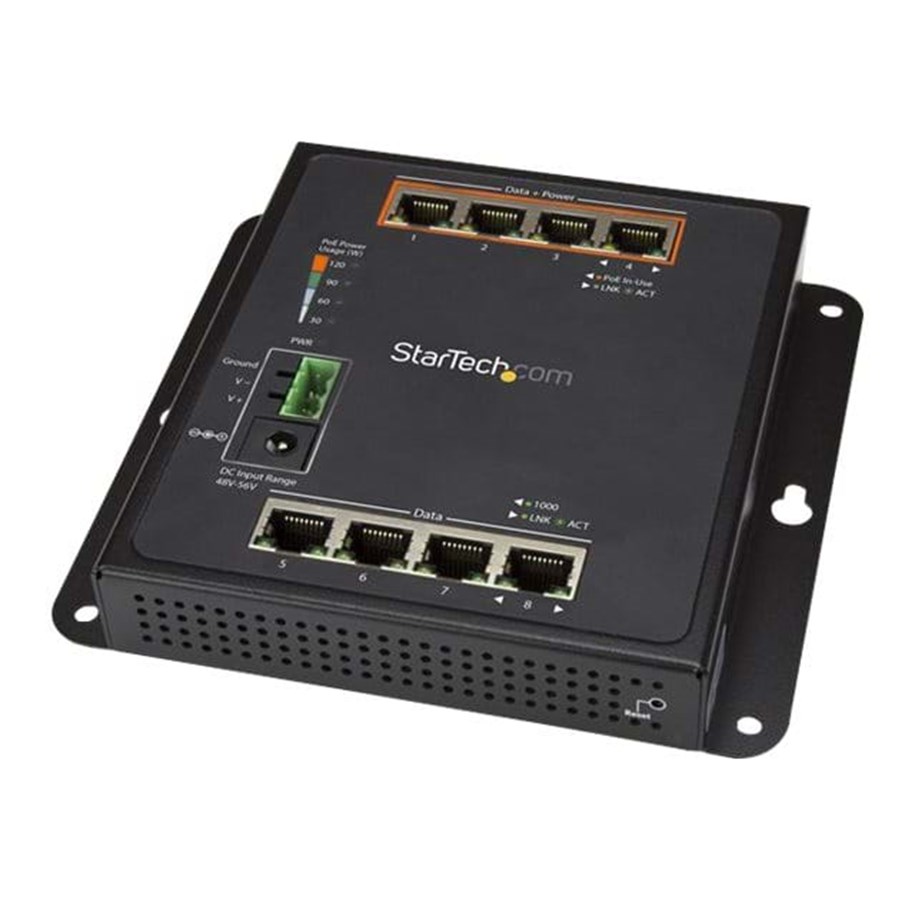

StarTech.com 8-Port (4 PoE+) Gigabit Ethernet Switch - Managed - Wall Mount with Front Access
Managed, Wall Mount with Front Access, Switch, Administreret, 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+), væg-monterbar, PoE+ (120 W), DC strøm
2.949,00 kr.
2.359,20 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Fjernlager, 5-6 dages levering
Connect up to 8 different GbE (4 PoE+) devices, using this IP30 industrial Ethernet switch with intelligent Layer 2 management. Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet (GbE) connections, including four PoE+ ports. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.This Gigabit Ethernet switch lets you expand your network by connecting up to eight RJ45 devices (four PoE+). The 8-port switch enables up to eight users to share files and devices, such as printers and scanners, over a LAN connection, by enhancing your existing network capacity with additional ports.The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (120W budget).With its compact design, you can wall-mount the Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.This rugged network switch features an IP30-rated metal housing and extended operating temperature range of -40°C to 75°C, which makes it ideal for a wide range of conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames, and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.To help prevent any unnecessary downtime, the switch features redundant 12-58V DC terminal block power inputs, which ensures seamless operation in the event of power dips or failures.
Producent
Varenummer
2597354
Model
IES81GPOEW
Ean
0065030871112
Til producentens hjemmeside
Produktbeskrivelse
Startech Industrial 8 Port Gigabit PoE Switch, 4 x PoE+ 30W, Power Over Ethernet, Hardened GbE Layer/L2 Managed Switch, Rugged High Power Gigabit Network Switch IP-30/-40C to +75C - Managed Network Switch (IES81GPOEW) - switch - 8 porte - Administreret
Enhedstype
Switch - 8 porte - Administreret
Undertype
Gigabit Ethernet
Porte
4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE-budget
120 W
Præstation
Datatransferhastighed: 2 Gbps
Kapacitet
Bufferkapacitet (MB): 0.512
Jumborammesupport
9KB
Routingprotokol
IGMP, MLD
Protokol til fjernadministration
HTTP
Egenskaber
Layer 2 switching, IPv6 understøttet, fuld dupleksmodus, til vægmontering, TFTP support, mærket VLAN, 6KV ESD Protector, 802.1x autentificering, ICMP, 6KV EFT-beskytter
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Effekt
DC 12 - 48 V
Dimensioner (B x D x H)
14.8 cm x 13.4 cm x 2.5 cm
Vægt
625 g
Farve
Sort
Generelt
Enhedstype
Switch - 8 porte - Administreret
Pakningstype
Væg-monterbar
Undertype
Gigabit Ethernet
Porte
4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE-budget
120 W
Præstation
Datatransferhastighed: 2 Gbps
Kapacitet
Bufferkapacitet (MB): 0.512
Jumborammesupport
9KB
Routingprotokol
IGMP, MLD
Protokol til fjernadministration
HTTP
Egenskaber
Layer 2 switching, IPv6 understøttet, fuld dupleksmodus, til vægmontering, TFTP support, mærket VLAN, 6KV ESD Protector, 802.1x autentificering, ICMP, 6KV EFT-beskytter
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Statusindikatorer
Strøm, PoE
Ekspansion / Konnektivitet
Interface
4 x 1000Base-T RJ-45
4 x 1000Base-T RJ-45 PoE+ - 30 W
1 x terminalblok
4 x 1000Base-T RJ-45 PoE+ - 30 W
1 x terminalblok
Effekt
Nødvendig spænding
DC 12 - 48 V
Diverse
Farve
Sort
Udstyr inkluderet
4 magneter, DIN-skinnemonteringssæt, 4 x skruer, påsætningsnåle, låsenåle, 4 spændeskiver, 8 RJ45 støvhætter
MTBF (forventet tid mellem fejl)
>100,000 timer
Overensstemmelsesstandarder
FCC, RoHS, WEEE, IP30, RCM
Mål og vægt
Bredde
14.8 cm
Dybde
13.4 cm
Højde
2.5 cm
Vægt
625 g
Miljømæssige parametre
Min. driftstemperatur
-40 °C
Maks. driftstemperatur
75 °C
Fugtighedsgrad ved brug
5 - 95 % (ikke-kondenserende)
