TPE-3524SF
5.741,00 kr.

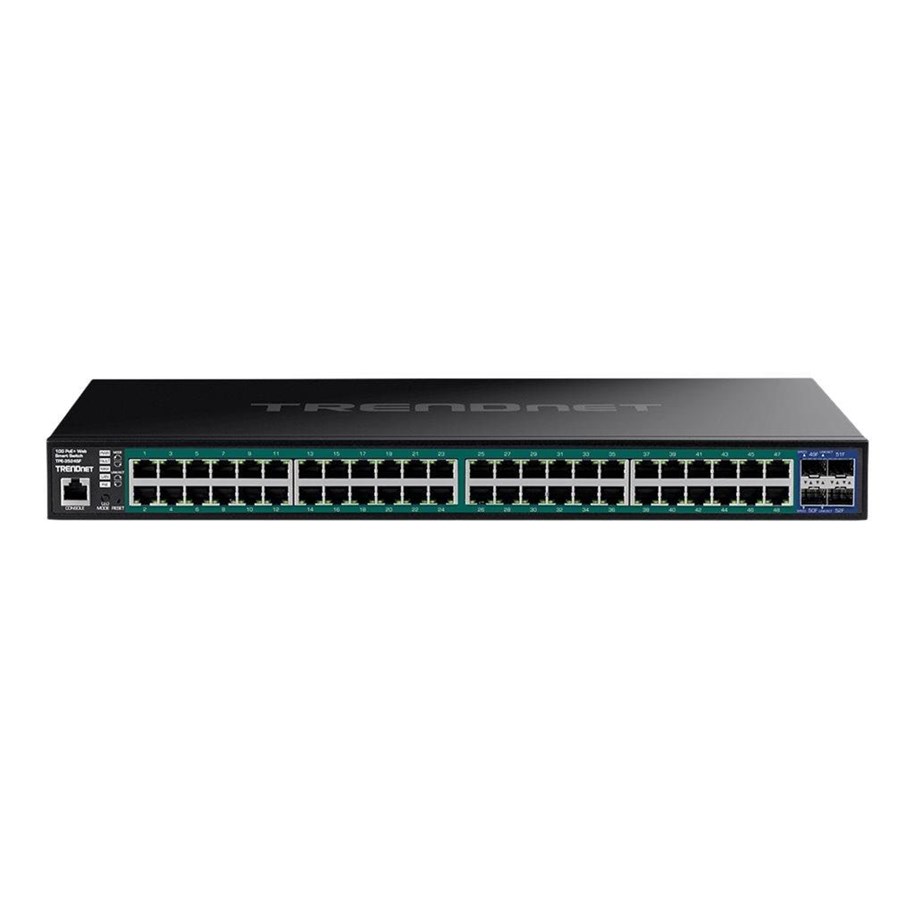

Switch - TRENDnet TPE-3524SF - switch - 52-port web - 52 ports - smart - rack-mountable - TAA Compliant - TPE-3524SF
Varenummer: 3238103
TPE-3524SF
TPE-3524SF

TRENDnet TPE-3524SF - switch - 52-port web - 52 ports - smart - rack-mountable - TAA Compliant

Switch, 52-port, web, L2+, smart, 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+, desktop, monterbar på stativ, PoE+ (740 W), TAA-kompatibel

5.741,00 kr. 4.592,80 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Fjernlager, 3 dages levering

TRENDnet's 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ ports, model TPE-3524SF, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This managed PoE+ switch with SFP+ ports comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.Free up router resources by offloading routing processes to the managed switch by using the L2+ Managed IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also features 10G SFP+ ports to support long-distance fiber networking applications.Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.

Producent
Varenummer
3238103
Model
TPE-3524SF
Ean
0710931162523
Til producentens hjemmeside
Produktbeskrivelse
TRENDnet TPE-3524SF - switch - 52-port, web - 52 porte - smart - monterbar på stativ - TAA-kompatibel
Enhedstype
Switch - 52 porte - L2+ - smart
Pakningstype
Monterbar på stativ 1U
Undertype
Gigabit Ethernet
Porte
48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE-budget
740 W
Præstation
Omkoblingskapacitet: 176 Gbps
Videresendelsespræstation (64-byte pakkestørrelse): 130.95 Mpps
Kapacitet
VLAN-grupper: 256
ARP-tabel: op til 128
MAC adresse table størrelse
32K indtastningshukommelse
Jumborammesupport
9KB
Protokol til fjernadministration
SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2
Egenskaber
DHCP-understøttelse, VLAN-understøttet, IGMP snooping, IPv6 understøttet, fuld dupleksmodus, DHCP snooping, QoS, MDL snooping, overstrømsbeskyttelse, kortslutningsbeskyttelse, GVRP, statisk routing, SP, DoS, båndbreddekontrol pr. port, DSCP support, dobbelt billedsupport, Static Link Aggregation, Voice VLAN, Private VLAN, IGMP hurtigafgang, Inter-VLAN Routing, WRR, tilbageløkke-detektion, bloker ukendt multicast, webbaseret administration, Smart Fans, MAC-Port Binding, LLDP-MED, HoL Blocking Prevention
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Effekt
AC 100-240 V (50/60 Hz)
Dimensioner (B x D x H)
44 cm x 31 cm x 4.4 cm
Vægt
4.725 kg
TAA kompatibel
Ja
Producentgaranti
Begrænset livtidsgaranti

Generelt

Enhedstype
Switch - 52 porte - L2+ - smart
Pakningstype
Desktop, monterbar på stativ 1U
Undertype
Gigabit Ethernet
Porte
48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE-budget
740 W
Præstation
Omkoblingskapacitet: 176 Gbps
Videresendelsespræstation (64-byte pakkestørrelse): 130.95 Mpps
Kapacitet
VLAN-grupper: 256
ARP-tabel: op til 128
MAC adresse table størrelse
32K indtastningshukommelse
Jumborammesupport
9KB
Protokol til fjernadministration
SNMP 1, RMON 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2
Krypterings algoritme
TLS, SSL 3.0, SSL 2.0
Autentificeringsmetode
RADIUS, TACACS+
Egenskaber
DHCP-understøttelse, VLAN-understøttet, IGMP snooping, IPv6 understøttet, fuld dupleksmodus, DHCP snooping, QoS, MDL snooping, overstrømsbeskyttelse, kortslutningsbeskyttelse, GVRP, statisk routing, SP, DoS, båndbreddekontrol pr. port, DSCP support, dobbelt billedsupport, Static Link Aggregation, Voice VLAN, Private VLAN, IGMP hurtigafgang, Inter-VLAN Routing, WRR, tilbageløkke-detektion, bloker ukendt multicast, webbaseret administration, Smart Fans, MAC-Port Binding, LLDP-MED, HoL Blocking Prevention
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Indbygget udstyr
3 x blæsere
Statusindikatorer
Status

Ekspansion / Konnektivitet

Interface
48 x 1000Base-T RJ-45 PoE+ - 30 W
4 x 10 Gbit LAN SFP+
1 x konsol RJ-45

Effekt

Strømenhed
Intern strømforsyning
Nødvendig spænding
AC 100-240 V (50/60 Hz)

Diverse

Udstyr inkluderet
Strømkabel (1,5 m)
Medfølgende ledninger
1 x konsolkabel - 1 m
Rackmonteringspakke
Inkluderet
MTBF (forventet tid mellem fejl)
70,599 timer
Overensstemmelsesstandarder
UL, FCC, NDAA
TAA kompatibel
Ja

Mål og vægt

Bredde
44 cm
Dybde
31 cm
Højde
4.4 cm
Vægt
4.725 kg

Ovenstående informationer/specifikationer er vejledende og kan uden varsel være ændret af producenten. Der tages forbehold for trykfejl og vejledende billeder. Enkelte tekster kan være autogenererede eller maskinoversatte, og der kan derfor fremkomme tekster, som kan virke misvisende.
