Varenummer: 3497793

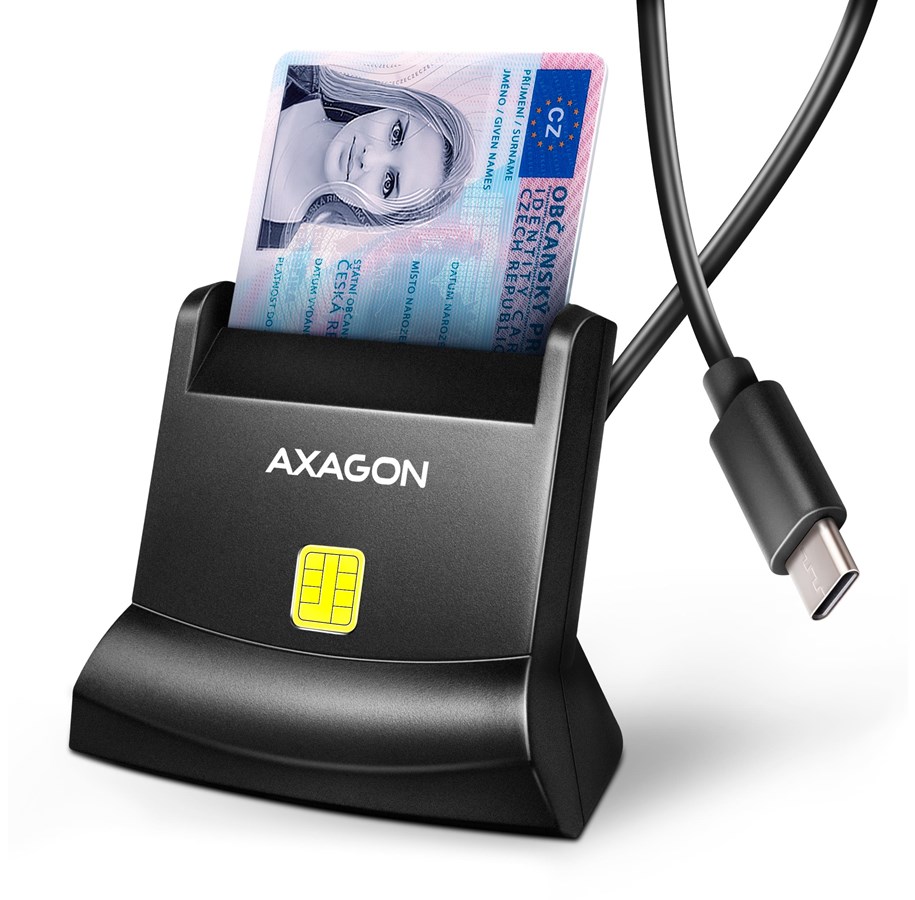

AXAGON CRE-SM4NC smartkortlæser
Smart card-læser AXAGON CRE-SM4NC StandReader kombinerer en USB 480 Mbps USB-C-grænseflade, Plug & Play-understøttelse og kompatibilitet med kontakt-Smart Cards til computere, telefoner og tablets.
Denne universelle Smart Card- og ID-kortlæser til skrivebord er designet til brug med USB-C-enheder med et vendbart stik og understøttelse af almindelige operativsystemer og de fleste nationale eID-applikationer.
- USB 2.0 Type-C-tilslutning med CCID-protokol
- Understøtter ISO 7816 kontakt-Smart Cards
- Fungerer med ATM-, CAC-, ID-, IC- og SIS-kort
- Kompatibel med Windows, macOS, Linux og Android
- LED indikerer kortindsættelse og dataoverførsel
- USB-busdrevet med strømbesparende tilstand
Kompakt skrivebordsdesign, bred kortunderstøttelse og Plug & Play-drift gør den praktisk til daglig brug af smart card og elektronisk ID.
122,00 kr.
97,60 kr. ekskl. moms
Billigste fragt (privatkunde) 33,00 kr.
Fjernlager, 4-5 dages levering
Universal desktop Smart Card / ID Card reader AXAGON CRE-SM4NC StandReader with USB 480 Mbps interface. It is especially suitable as an ID card reader for use with mobile phones and computers equipped with a USB-C port. The reversible USB-C connector simplifies use by eliminating the need to orient the connector correctly when plugging it into a smartphone, tablet, or notebook.
The Plug & Play function enables immediate operation without the need to install drivers. For further use with an inserted card, it is only necessary to install a suitable application. The reader is compatible with most national eID (electronic identity card) applications.
The card reader supports all common formats of contact Smart cards, identification system cards, and other chip cards, including contact bank payment cards or contact electronic identity cards*. Compatibility with all common operating systems such as Windows, Linux, macOS, and Android enables wide use on desktop computers, notebooks, smartphones, and tablets.
The smart LED indicator lights up only briefly when activity changes and then switches off so as not to disturb the user. Compact design, high-quality workmanship, and a sufficiently long cable ensure easy and trouble-free use.
Input:
• USB 480 Mbps (USB 2.0), CCID protocol.
• Connection to a computer via USB 2.0 Type-C male connector.
Card reader:
• Slot supports ATM / CAC / ID / IC / SIS cards.
• Support for contact Smart Cards compliant with ISO 7816, Class A, B and C (5V, 3V and 1.8V).
• Support for ISO 7816 and EMV 4.1 (EMV 2000 Level 1) standards.
• Supported protocols: T=0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9).
• Support for PC/SC 2.0 Smart Card standard.
• Support for Microsoft Smart Card for Windows.
• Support for I2C cards SLE4418, SLE4428, SLE4432, SLE4442, AT88SC1608, AT88SC153, AT24C128, AT24C256, M14C16, M14C04.
• Compliant with Microsoft WHQL USB Smart Card Reader requirements.
Other features:
• Compatible with Microsoft USB-CCID driver.
• Plug and Play support.
• Power-saving mode support with automatic transition to power-saving mode.
• USB bus-powered.
• LED indicating card insertion (steady light) and data transfer (flashing).
• Non-slip pad to reduce unwanted movement on the desk.
• Dimensions: 77 × 35 × 70 mm, cable length 1.2 m.
• Weight: 74 g.
Supported operating systems:
• Windows 7 / 8.1 / 10 / 11 and later, macOS, Linux, and Android.
• To work with a Smart Card, it is necessary to install a suitable application on the connected device.
*Note: The reader supports only contact cards with visible contacts on the surface. Contactless cards, known as RFID, cannot be used in the reader.
Package contains:
• USB Smart Card reader with hardwired 1.2 m cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• packed in a cardboard box with hanging hole.
The Plug & Play function enables immediate operation without the need to install drivers. For further use with an inserted card, it is only necessary to install a suitable application. The reader is compatible with most national eID (electronic identity card) applications.
The card reader supports all common formats of contact Smart cards, identification system cards, and other chip cards, including contact bank payment cards or contact electronic identity cards*. Compatibility with all common operating systems such as Windows, Linux, macOS, and Android enables wide use on desktop computers, notebooks, smartphones, and tablets.
The smart LED indicator lights up only briefly when activity changes and then switches off so as not to disturb the user. Compact design, high-quality workmanship, and a sufficiently long cable ensure easy and trouble-free use.
Input:
• USB 480 Mbps (USB 2.0), CCID protocol.
• Connection to a computer via USB 2.0 Type-C male connector.
Card reader:
• Slot supports ATM / CAC / ID / IC / SIS cards.
• Support for contact Smart Cards compliant with ISO 7816, Class A, B and C (5V, 3V and 1.8V).
• Support for ISO 7816 and EMV 4.1 (EMV 2000 Level 1) standards.
• Supported protocols: T=0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9).
• Support for PC/SC 2.0 Smart Card standard.
• Support for Microsoft Smart Card for Windows.
• Support for I2C cards SLE4418, SLE4428, SLE4432, SLE4442, AT88SC1608, AT88SC153, AT24C128, AT24C256, M14C16, M14C04.
• Compliant with Microsoft WHQL USB Smart Card Reader requirements.
Other features:
• Compatible with Microsoft USB-CCID driver.
• Plug and Play support.
• Power-saving mode support with automatic transition to power-saving mode.
• USB bus-powered.
• LED indicating card insertion (steady light) and data transfer (flashing).
• Non-slip pad to reduce unwanted movement on the desk.
• Dimensions: 77 × 35 × 70 mm, cable length 1.2 m.
• Weight: 74 g.
Supported operating systems:
• Windows 7 / 8.1 / 10 / 11 and later, macOS, Linux, and Android.
• To work with a Smart Card, it is necessary to install a suitable application on the connected device.
*Note: The reader supports only contact cards with visible contacts on the surface. Contactless cards, known as RFID, cannot be used in the reader.
Package contains:
• USB Smart Card reader with hardwired 1.2 m cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• packed in a cardboard box with hanging hole.
Producent
Varenummer
3497793
Model
CRE-SM4NC
Ean
8595247909947
Til producentens hjemmeside
Produkttype
Universel smartcard-læser
Anvendelsesområde
Regering, Banker og betalinger, Sundhed
Understøtter SIM-kort
Ingen
Plug and play
Ja
Nem at bruge
Ja
Kompatible produkter
supports all common formats of contact Smart cards, identification system cards, and other chip cards, including contact bank payment cards or contact electronic identity cards*. Compatibility with all common operating systems such as Windows, Linux, macOS, and Android enables wide use on desktop computers, notebooks, smartphones, and tablets.
Understøttet placering
Indendørs
Produktfarve
Sort
Husmateriale
Plast
LED-indikatorer
Ja
Kabellængde
1,2 m
Oprindelsesland
Kina
Grænseflade
USB 2.0
Near Field Communication (NFC)
Ingen
Bluetooth
Ingen
Strømkilde
USB
Garantiperiode
3 År
Compliance-certifikater
CE, RoHS, REACH
Brugervejledning
Ja
Emballageindhold
• USB Smart Card reader with hardwired 1.2 m cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• packed in a cardboard box with hanging hole.
Understøttede Windows-operativsystemer
Ja
Understøttede Linux-operativsystemer
Ja
Mac kompabilitet
Ja
Understøttede Mac-operativsystemer
Ja
Andre understøttede operativsystemer
Ja
Bredde
77 mm
Højde
35 mm
Dybde
70 mm
Vægt
74 g
Certificering
CE, RoHS, Reach
Smart kort inkluderet
Ingen
Hurtig installationsvejledning
Ja
Pakkebredde
125 mm
Pakkedybde
100 mm
Pakkehøjde
40 mm
Pakkevægt
113 g
Pakketype
Kasse
Funktioner
Produkttype
Universel smartcard-læser
Anvendelsesområde
Regering, Banker og betalinger, Sundhed
Understøtter SIM-kort
Ingen
Plug and play
Ja
Nem at bruge
Ja
Kompatible produkter
supports all common formats of contact Smart cards, identification system cards, and other chip cards, including contact bank payment cards or contact electronic identity cards*. Compatibility with all common operating systems such as Windows, Linux, macOS, and Android enables wide use on desktop computers, notebooks, smartphones, and tablets.
Design
Understøttet placering
Indendørs
Produktfarve
Sort
Husmateriale
Plast
LED-indikatorer
Ja
Kabellængde
1,2 m
Oprindelsesland
Kina
Porte & Grænseflader
Grænseflade
USB 2.0
Near Field Communication (NFC)
Ingen
Bluetooth
Ingen
Strømstyring
Strømkilde
USB
Tekniske detaljer
Garantiperiode
3 År
Compliance-certifikater
CE, RoHS, REACH
Emballage indhold
Brugervejledning
Ja
Emballageindhold
• USB Smart Card reader with hardwired 1.2 m cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• packed in a cardboard box with hanging hole.
Systemkrav
Understøttede Windows-operativsystemer
Ja
Understøttede Linux-operativsystemer
Ja
Mac kompabilitet
Ja
Understøttede Mac-operativsystemer
Ja
Andre understøttede operativsystemer
Ja
Vægt & størrelser
Bredde
77 mm
Højde
35 mm
Dybde
70 mm
Vægt
74 g
Bæredygtighed
Certificering
CE, RoHS, Reach
Emballeringsdata
Smart kort inkluderet
Ingen
Hurtig installationsvejledning
Ja
Pakkebredde
125 mm
Pakkedybde
100 mm
Pakkehøjde
40 mm
Pakkevægt
113 g
Pakketype
Kasse
